Product Details:
|
| Product Name: | Sucker Rod Power Tong | Warranty: | 12 Months |
|---|---|---|---|
| Condition: | New | Size: | 3 3/4 "(95.3mm)~26"(660.4mm) |
| Color: | Red, Blue | Material: | Carbon Steel |
| Max Torque: | 2600 | Type: | Hydraulic Support |
| High Light: | Sucker Rod Hydraulic Power Tong,Spec 7K Tubular Handling Tools,Hydraulic Sucker Rod Power Tong |
||

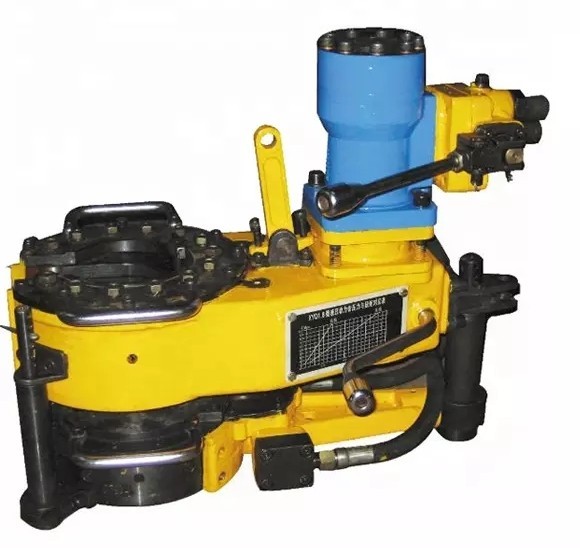

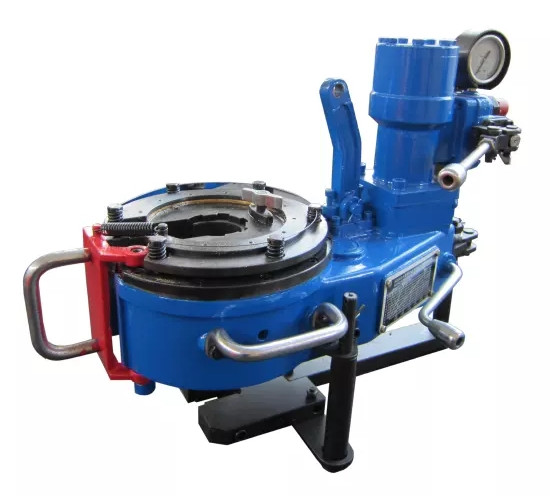

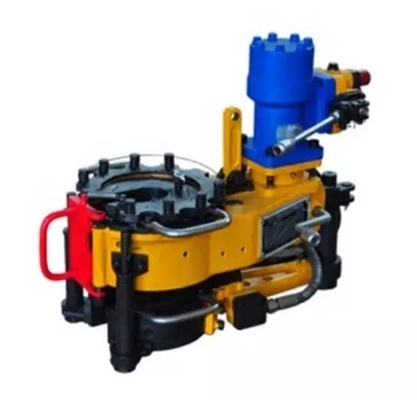

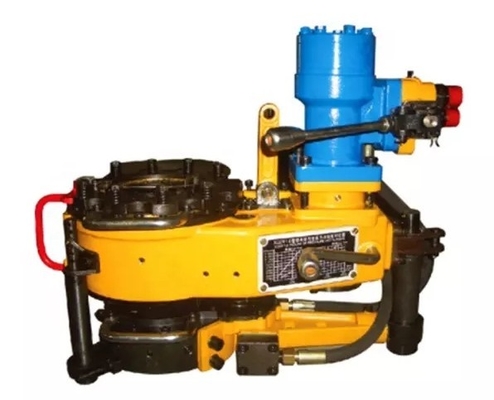

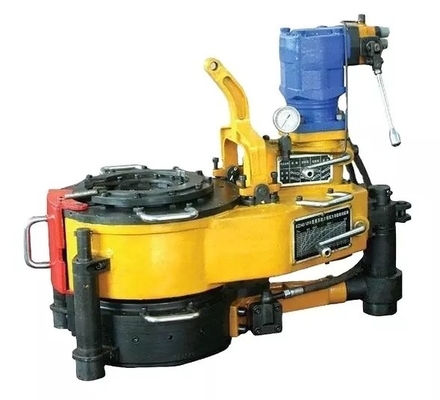

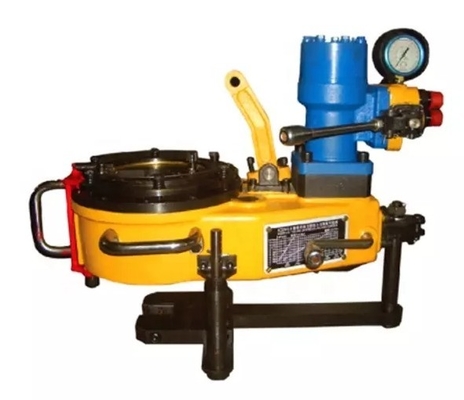

XQ 28-1.8Y Sucker Rod Hydraulic Power Tong Tubular Handling Tools API Spec 7K
XQ Series Power Tong description of Tubular Handing Tools:
The series of hydraulic power tongs adopt inner can rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in work over operation. The tong with extra long rod is available for backup tong to grip tubing body The power tong also can be equipped with automatic torque control system.
Features:
1. The structure is compact ,concise and light. Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner.

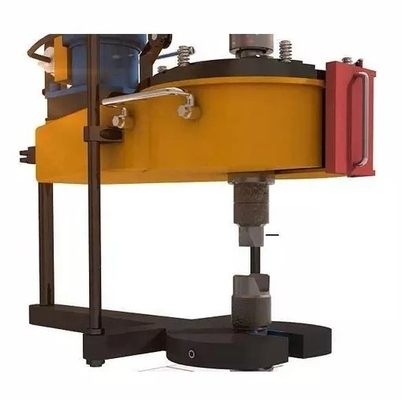

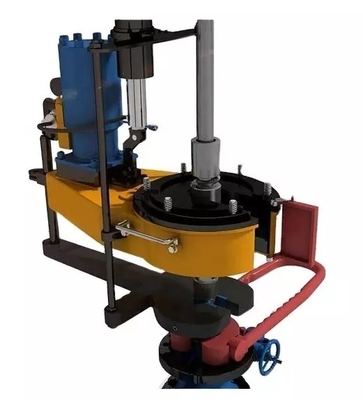

2. The operating is briefness and convenience with die. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong , turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed, snapping at low speed, spinning at high speed .
3. Large low gear torque, especially suitable for the instance that is difficult to break out sucker rod thread.
| Model | XQ28/1.8Y | XQ28/2.6Y |
| Pipe Size Range of Master Tong | 5/8-11/8 Sucker Rod | 5/8-11/8 Sucker Rod |
| 17/8-23/8 Tubing | ||
| Pipe Size Range of Backup Tong | 5/8-11/8 Sucker Rod | 5/8-11/8 Sucker Rod |
| 17/8-23/8 Tubing | ||
| High Gear Rated Torque | 700N.m | 1000N.m |
| 5161ft.lbs | 737.5ft.lbs | |
| Low Gear Rated Torque | 1800N.m | 2600N.m |
| 1327.6ft.lbs | 1918ft.lbs | |
| High Gear Rated Speed | 104r/min | 98r/min |
| Low Gear Rated Speed | 40r/min | 32r/min |
| Rated Operation Pressure | 10 MPa | 10 MPa |
| 1450 psi | 1450 psi | |
| Max. Flow | 65 L/min | 80 L/min |
| 17 gpm | 21gpm | |
| Dimension :L x W x H | 543 x 334 x 404 | 870 x 383 x 490 |
| Weight(including Backup Tong) | 105kg | 100kg |
| 231lbs | 220lbs |
