Product Details:
|
| Product Name: | Auxiliary Elevator | Pipe Size Range: | 2 3/8"- 10 3/4" |
|---|---|---|---|
| Material: | Carbon Steel | Weight: | 20 Kg |
| Color: | Red, Bule | Machine Type: | Drilling Tools |
| Use: | Well Drilling | Application: | Oil Field |
| High Light: | API Tubular Handling Tools,Wellhead Single Joint Elevators,Auxiliary Single Joint Elevators |
||

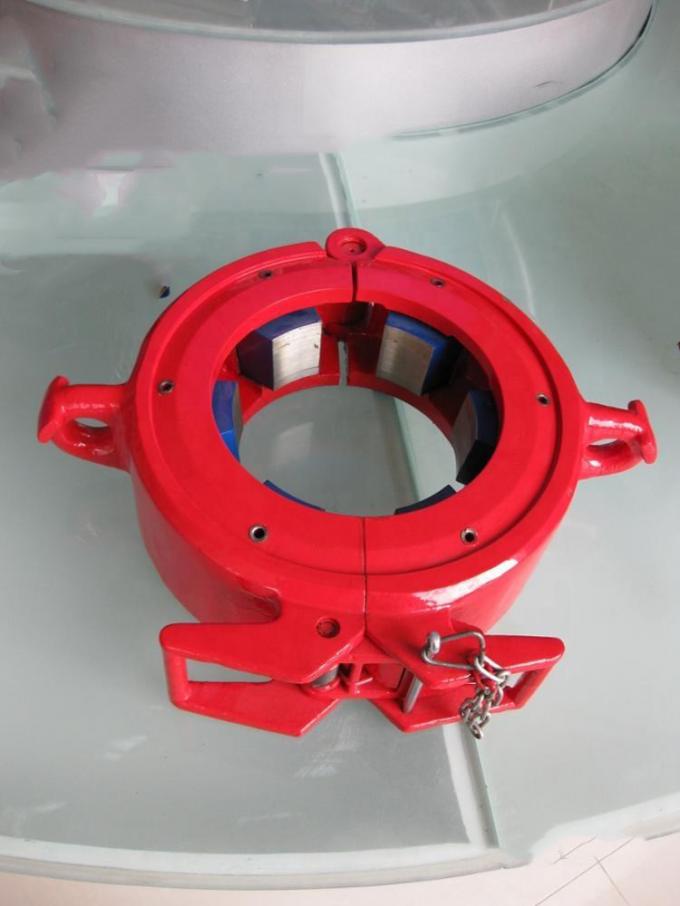

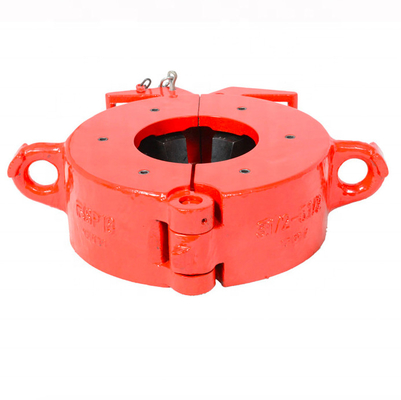

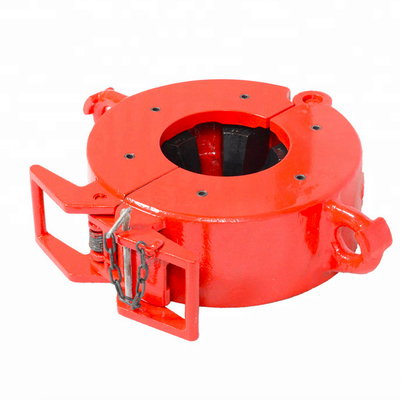

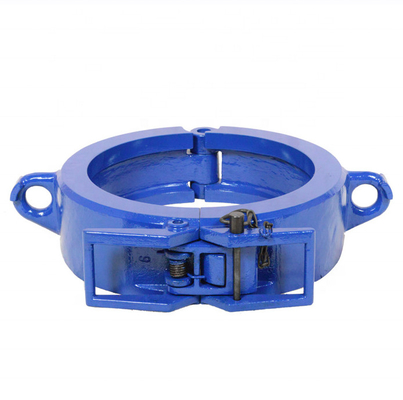

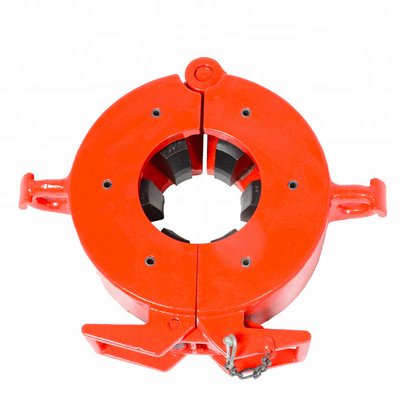

API Wellhead Single Joint Elevators Type SJ/SJX/SP Auxiliary Elevators Tubular Handling Tools
Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API Spec 8A/8C Specification for drilling and production hoisting equipment. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well.
Type SJ single joint elevators are the requisite hoisting tools for catching single pipe up and down.
Type SP single joint elevators are the requisite hoisting tools for catching pipe with degree up and down.
Type SJX single joint elevators are hoisting tools for single pipes or working together with the professional tools CRT to move the tubulars from gate to well center.
| Type | Pipe O.D. (in) | Pipe O.D.(mm) | Angle | Max Load(KN) |
| SP35-18 | 3 1/2 | 88.9 | 18° | 45 |
| SP40-18 | 4 | 101.6 | 18° | 45 |
| SP45-18 | 4 1/2 | 114.3 | 18° | 45 |
| SP50-18 | 5 | 127 | 18° | 45 |
| SP55-18 | 5 1/2 | 139.7 | 18° | 45 |
| SP-658 | 6 5/8 | 168.3 | 5° | 45 |
| SP-700 | 7 | 180.98 | 5° | 45 |
| SP-758 | 7 5/8 | 193.7 | 5° | 45 |
| Single Joint Auxiliary Elevator Type SP | ||
| Model | Pipe Size (inch) | Rated Cap.(Tons) |
| SP5° | 2 3/8-10 3/4 | 5 |
| SP12° | 2 3/8-4 1/2 | 5 |
| SP18° | 2 7/8-6 5/8 | 5 |
Main Technical Parameters for SJX
| Model | Size Range (in) | Rated Capacity |
| (short tons) | ||
| SJX - 5 | 23/8~41/2 | 5 |
| SLX - 5 | 41/2~7 | |
| SLX - 5 | 7~10 | |
| SLX - 5 | 10~14 |
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
