Product Details:
|
| Product Name: | JB/W15 Mud Agitator | Material: | Alloy Steel |
|---|---|---|---|
| Color: | Green, Blue, Or Required | Machine Type: | API Solid Equipment Explosion-proof Mud Agitator |
| Warranty: | 1 Year | Weight: | 550 |
| High Light: | Explosion Proof Mud Agitator,Oil Gas Mud Agitator,Alloy Steel Drilling Mud Agitator |
||
API Solid Equipment Explosion-proof Mud Agitator for Oil & Gas
Mud agitator is part of the drilling fluids solids control equipment, which is mainly used to agitate and mix the drilling mud to prevent solids particles from depositing in the circulating tank and to stabilize the performance of drilling fluids.

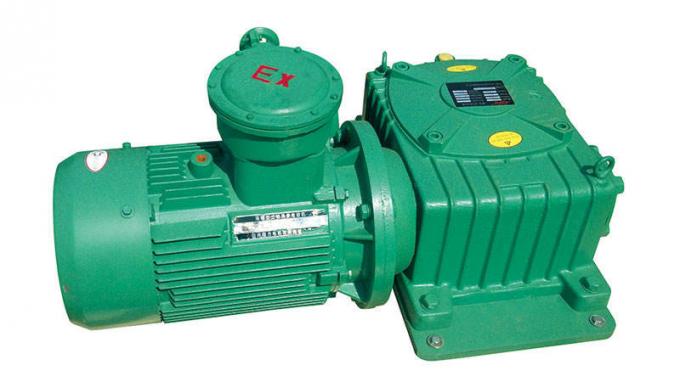

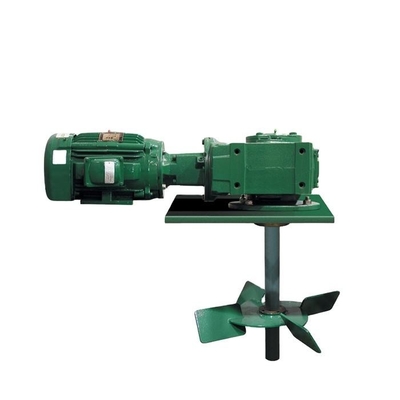

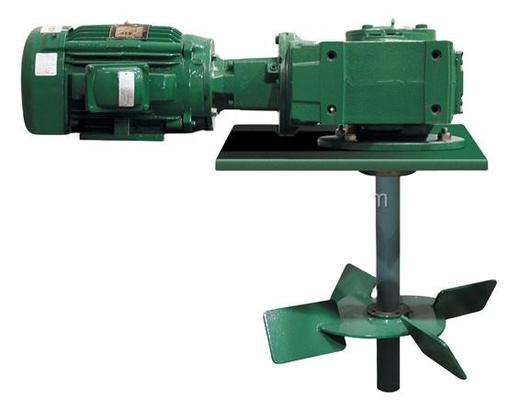

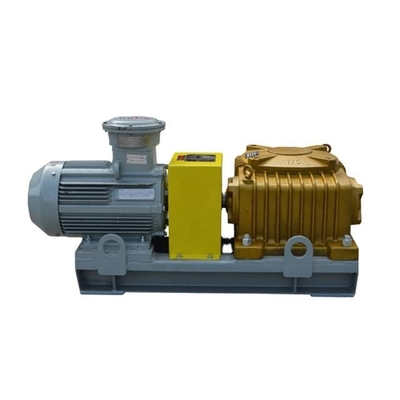

It is composed of explosion-proof motor, speed reducer, motor base and blade. The motor and speed reducer, speed reducer and impeller shaft are connected by steel coupling. The impeller is welded with four blades.
It can be used used for solid-phase separation in drilling fluid circulating system.
Features
1.Electric machine of agitator adopts horizontal installation and reducing mechanism adopts single-stage arc column gear worm decelerator, so that efficiency is very high.
2.Shaft gland adopts special mechanism and resolves problem of unreliable shaft gland.
3.The agitator has low barycenter, good stability, good shock absorption effect, small external dimensions and stable operation
4.The direct connection gets rid of such intermediate link as coupling, which makes structure simple and performance reliable.
Main Technical Parameters
| Model | NJ7.5 | NJ11 | NJ15 |
| Motor Power (kW) | 7.5 | 11 | 15 |
| Impeller Speed (rpm) | 58 | ||
| Qty. of Impeller (pcs) | 4 | ||
| Weight (kg) | 409 | 550 | 600 |
| Dia. of Impeller (mm) | φ860 | φ1000 | φ1080 |
| Mounting height of impeller (mm) | 400~800 | ||
| Axial Dia. of Impeller (mm) | 73 | ||
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
