Product Details:
|
| Product Name: | WQ Pneumatic Slip | Applicable Pipe Diameter: | 2.3/8~ 14 In |
|---|---|---|---|
| Maximum Working Load: | 250~500 | Applicable Turntable: | 27.1/2, 37.1/2 In |
| Working Pressure: | 0.6~0.8Mpa | Weight: | 1500kg |
| Model Number: | PS175 PS205 PS275 PS375 PS16 | ||
| High Light: | PS205 Air Slips,Drill Pipe Pneumatic Slips,0.8Mpa Air slips |
||

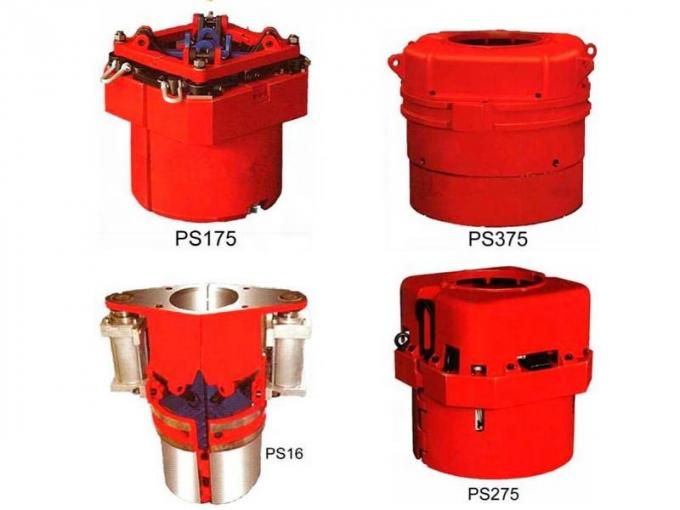

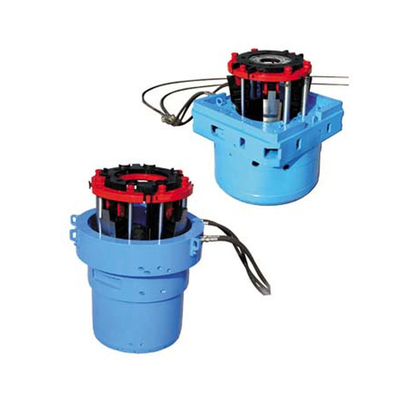

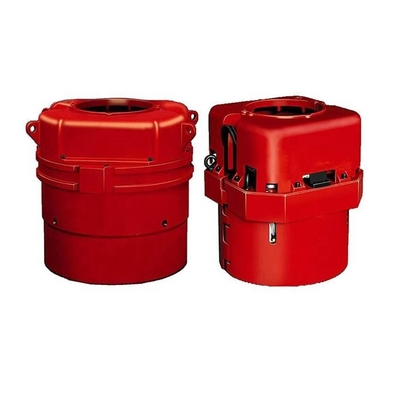

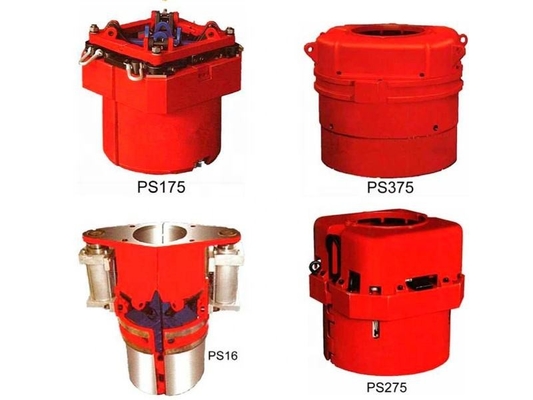

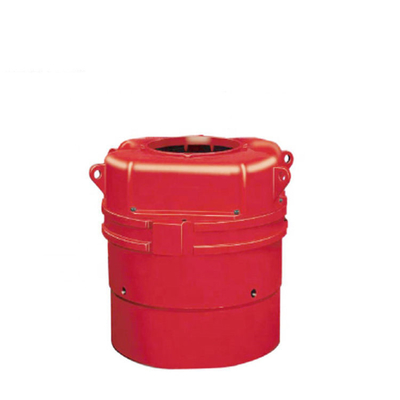

API Standard PS175 PS205 PS275 PS375 PS16 Pneumatic Slip Air Slips For Drill Pipe
PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufactured according to API Spec 7K.
| Model | Rotary table size | Applicable diameter of tubulars (in) | Rated capacity (tons) | Work pressure (MPa) | (Max. pressure MPa) |
| PS175 | 17.1/2 | 2.3/8-5.3/4 | 150 | 0.6-0.8 | 1 |
| PS205 | 20.1/2 | 2.3/8-5.3/4 | 250 | 0.6-0.8 | 1 |
| PS275 | 27.1/2 | 2.3/8-9.7/8 | 350 | 0.6-0.8 | 1 |
| PS375 | 37.1/2 | 2.3/8-14 | 500 | 0.6-0.8 | 1 |
| PS16 | 27.1/2, 37.1/2, 49.1/2, | 3.1/2-7.3/4 | 500 | 0.6-0.8 | 1 |
| PS Portable | 23,27.1/2, 37.1/2, 49.1/2, | 2.3/8-5.1/2 | 250 | 0.6-0.8 | 1 |
| Pin drive | 350 | ||||
| PS slant hole | For slant hole drilling rig | 2.7/8-13.3/8 | 250 | 0.6-0.8 | 1 |
| Russian style 560 | 560mm | 1.9-7 | 350 | 0.6-0.8 | 1 |
