Double Row Oilfield Bearings Drilling Rig Bearing KT911

I'm Online Chat Now

Double Row Oilfield Bearings Drilling Rig Bearing KT911

Double Row Oilfield Bearings Drilling Rig Bearing KT911
Double Row Oilfield Bearings Drilling Rig Bearing KT911 Double Row Oilfield Bearings Drilling Rig Bearing KT911 Double Row Oilfield Bearings Drilling Rig Bearing KT911 Double Row Oilfield Bearings Drilling Rig Bearing KT911

Large Image :  Double Row Oilfield Bearings Drilling Rig Bearing KT911

Product Details:
Place of Origin: China
Brand Name: Topand
Certification: API/ISO 9001:2008
Model Number: KT911
Payment & Shipping Terms:
Minimum Order Quantity: 1 PIECE
Price: Negotiatable
Packaging Details: Standard Package
Delivery Time: 15~20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 Piece/Pieces per Month

Double Row Oilfield Bearings Drilling Rig Bearing KT911

Description
Product Name: Mud Pump Bearings Structure: Taper
Number Of Row:: Double Row Hardness: 58-64HRC
Package: Neutral Box Or As Customer's Request Roller: Chrome Steel
Lubrication: Grease,Grease Or Oil Condition: New
Application: Oilfield Bearings
High Light:

Drilling Rig Bearing KT911

,

64HRC Double Row Oilfield Bearings

,

Oil Rig Tapered Roller Bearings

Oil Rig Drilling Rig Bearing KT911

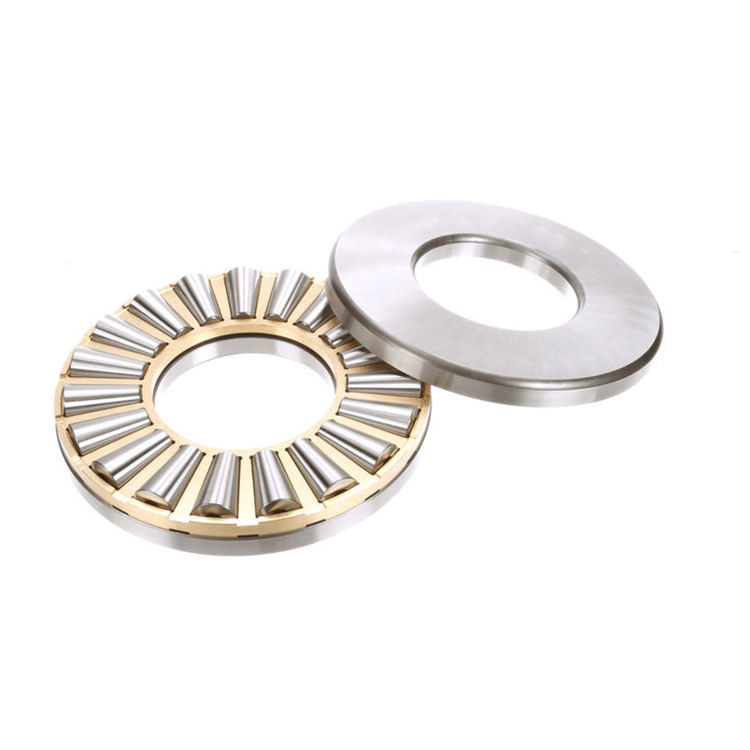

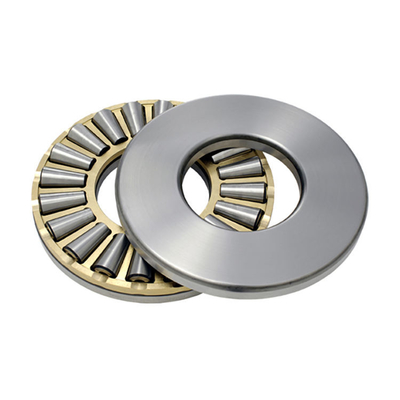

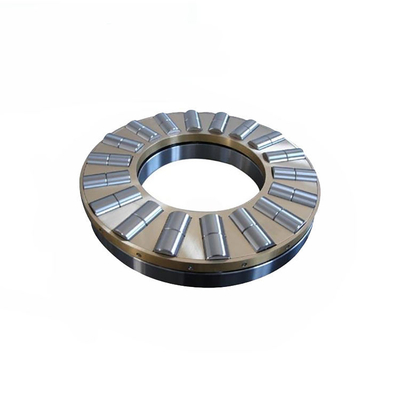

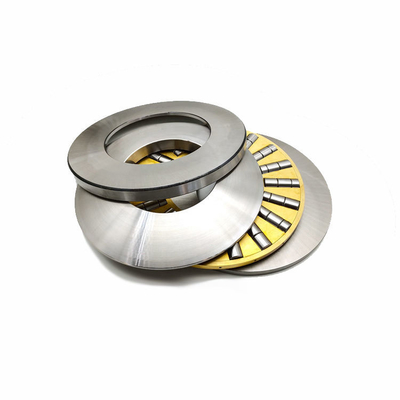

Thrust Roller Bearing:

Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.

Thrust roller bearings are mainly used for heavy-duty machine tools, power marine gear boxes, oil rig, electrical and other machinery in the vertical.



Part of the bearing specification:

Designation Dimensions
D d(mm) d1(mm) B (mm)
617500 - 26.4 60 15
BFSB 353325/HA3 37 30 55.563 15.875
634011 A - 30.02 66.675 19.446
BFS-0004 E/HA3 40 33 56.5 15.875
353153 - 33.1 56.5 15.875
353013 A - 36.652 66.675 19.7
BFSB 353327/HA3 45 38 72.619 20
353115 - 38.1 72.619 20
634059 - 38.9 76.5 20.433
353166 B/HA3 - 40 66 18
353166 C/HA3 - 40 66 18
BFSB 353263 E/HA3 - 44.8 80 16.5
BFSB 353321/HA3 52 45 74 20
353118 - 45.1 74 20
BFSB 353291/HA3 - 46 78 22
BFSB 445870 E/HA1 - 46.381 83.21 23.813
353056 B - 50 78 22
BFSB 353323/HA3 58 50 78 22
353143 A - 50.3 78 22
353150 A - 50.6 78 22
BFSB 353311 E/HA3 - 54 82 22
K-T 611 317.5 152.4 317.5 69.85
353022 500 180 500 145
K-T 811 419.1 203.2 419.1 92,075
351148 B 500 220 500 125
K-T 911 482.6 228.6 482.6 104,775
K-T 921 546.1 234.95 546.1 127
351153 580 260 580 145
BFSB 353316/HA7 603.25 279.4 601.675 136.525
K-T 1120 603.25 279.4 603.25 136.525
351195 660 300 660 165
BFSB 353916 663.5 300 658 165
BFSB 350565 460 340 457 73
351468 A 710 347.5 710 160
BFSB 353205 560 370 550 115
353164 560 380 550 110
350998 730 480 730 112
BFS 8000/HA1 760 500 755 140
BFSB 353285/HA4 1066.8 558.8 1065.225 285.75
BFSB 353201 900 600 890 170
BFSB 353247 952.5 749.3 954.8 127
351573 1140 840 1135 195
BFSB 353901/HA4 1274 1002 1240 150
BFSB 353210 1280 1005 1274 150
BFSB 353312/HA1 1930 1770 1930 80
BFSB 353320/HA4 2184.4 1828.8 2182 203.2



Specifications:



1.high precision ball bearing



2.ISO standard bearing



3.High quality & competitive price



4.Many famous brand is available



5.Low noise &long life



6. Chrome Steel ,stainless steel



Double Row Oilfield Bearings Drilling Rig Bearing KT911 0



Double Row Oilfield Bearings Drilling Rig Bearing KT911 1

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.



4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service



5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.



6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
