Product Details:
|
| Product Name: | Bridge Plug | Weight: | 25 Kg |
|---|---|---|---|
| HS Code: | 8431431000 | Warranty: | 12 Months |
| Condition: | New | Machine Type: | Drilling Tool |
| Material: | Stainless Steel | Machinery Test Report: | Provided |
| High Light: | Downhole Drilling Retrievable Bridge Plug,Seamless Drillable Bridge Plug,API Retrievable Bridge Plug |
||

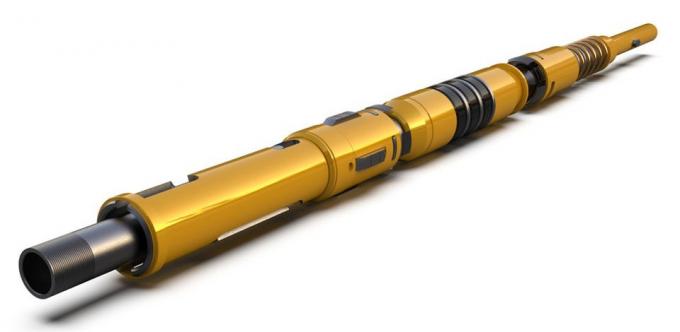

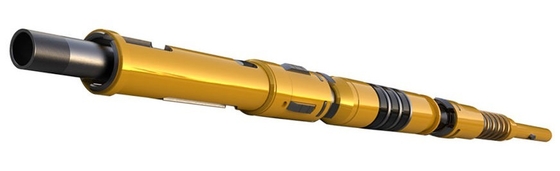

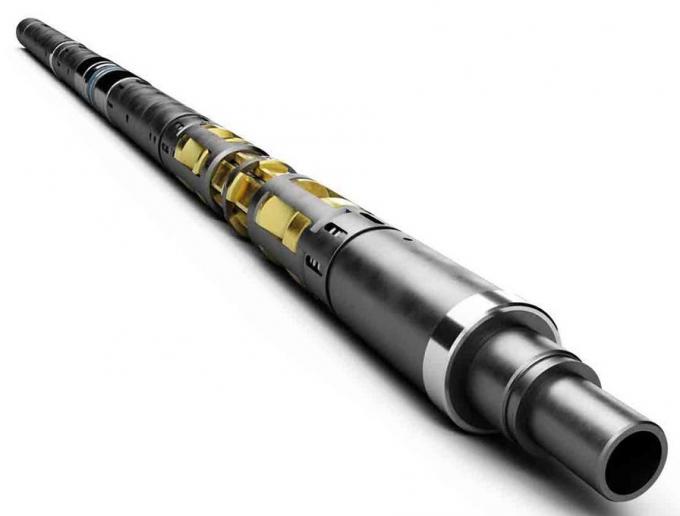

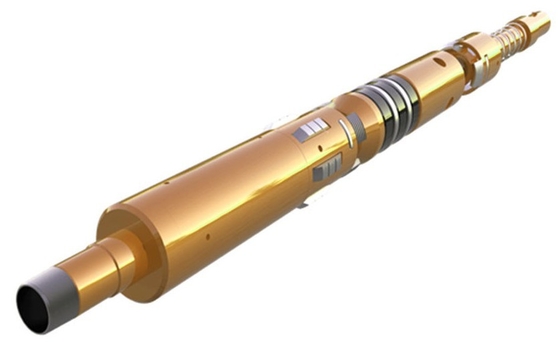

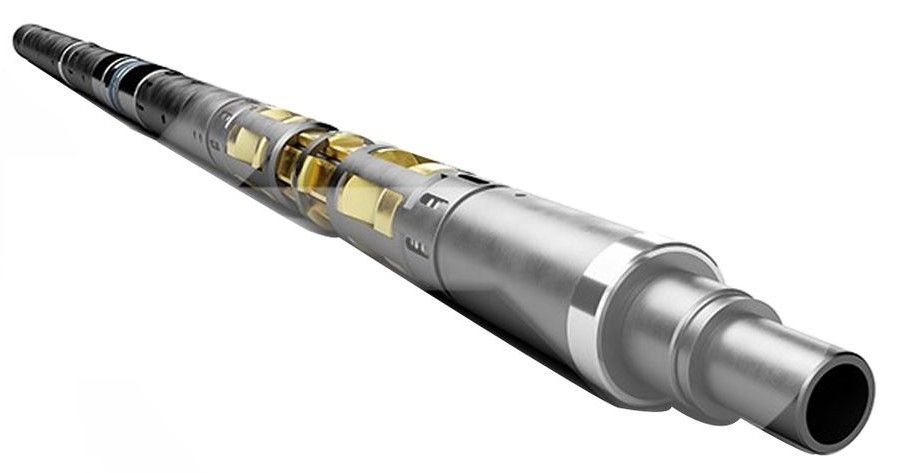

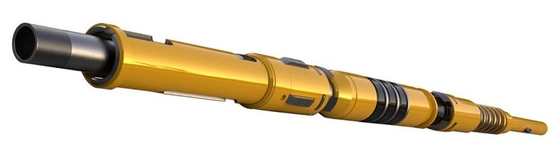

Retrievable Bridge Plug Downhole Drilling Tools API Seamless Standard Drillable Bridge Plug
Bridge Plug Description of Downhole Drilling Tools:
We developed the bridge plug and cement retainer with their accessories. This tool is used for isolation of wellbore. There are two types, either it will be permanent type or retrievable type. DIC Oil Tools has a permanent type. It may be set mechanically or hydraulically. This tool is easily convertible in bridge plug to cement retainer and vise versa.
These are available in 4 1/2" to 13 3/8"
Bridge Plug Datasheet of Downhole Drilling Tools
| Casing OD. (in) |
Casing wt (lbs/ft) |
setting range min ID (in) |
setting range max ID (in) |
Tools OD (in) |
Release strength (lbs) |
| 4 1/2 | 9.5-13.5 | 3.92 | 4.09 | 3.771 | 30000 |
| 5 | 15-18 | 4.276 | 4.408 | 4.125 | |
| 5 1/2 | 20-23 | 4.67 | 4.778 | 4.5 | |
| 15.5-20 | 4.778 | 4.95 | 4.641 | ||
| 13-15.5 | 4.95 | 5.044 | 4.781 | ||
| 6 5/8 | 24-32 | 5.675 | 6.135 | 5.37 | 55000 |
| 7 | 32-35 | 6.004 | 6.094 | 5.812 | |
| 26-29 | 6.184 | 6.276 | 5.968 | ||
| 23-26 | 6.276 | 6.366 | 6.078 | ||
| 17-20 | 6.456 | 6.538 | 6.266 | ||
| 20-39 | 6.625 | 8.097 | 6.31 | ||
| 7 5/8 | 33.7-39 | 6.625 | 6.765 | 6.453 | |
| 24-29.7 | 6.875 | 7.025 | 6.672 | ||
| 8 5/8 | 32-40 | 7.725 | 7.921 | 7.531 | |
| 9 5/8 | 40-47 | 8.681 | 8.835 | 8.437 | |
| 47-53.5 | 8.535 | 8.681 | 8.218 |
