Product Details:
|
| Product Name: | CSJ Super Fishing Jar | Weight: | 1000 Kg |
|---|---|---|---|
| Condition: | New | Machine Type: | Fishing Tools |
| Material: | Carbon Steel | Type: | Drilling Jar |
| Warranty: | 12 Months | Advantage: | High Performance |
| High Light: | API 7-1 Fishing Tools,CSJ Super Fishing Jar,Carbon Steel Super Fishing Jar 1000kg |
||

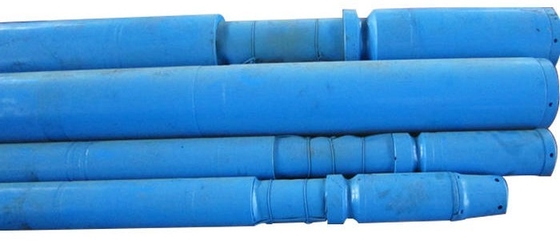

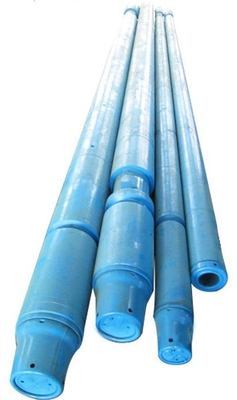

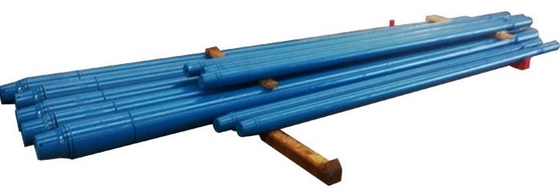

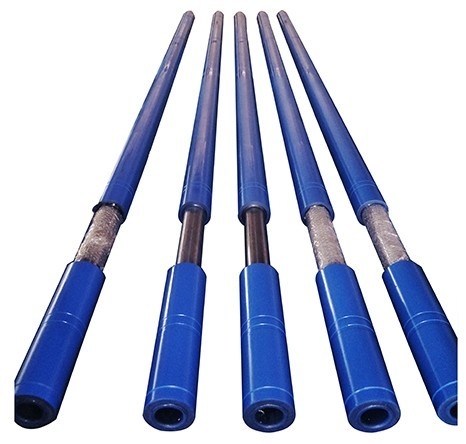

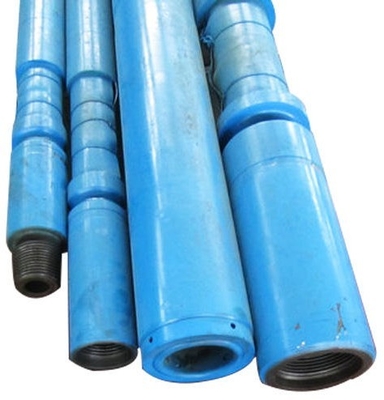

API 7-1 Fishing Tools Downhole Drilling Tools Standard CSJ Super Fishing Jar
CSJ Super Fishing Jar Description of Downhole Drilling Tools:
CSJ type super fishing jar is a fishing tool which the jarring force is larger than other jar with same specifications. It features a closed structure, reliable performance, easy to adjust and easy to operate. It is a new type of top jarring tool used in oilfield, geological exploration and drilling operation.

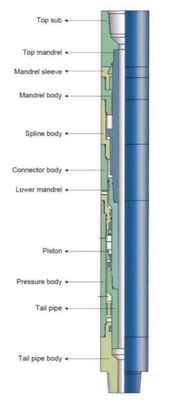

CSJ type super fishing jar effects the top jarring action is by means of hydraulic mechanism which allows taper piston to move in cylinder and stores energy by raising drill tool. When the drill tool attached on the top of super fishing jar is raised, enough time is provided for drill tool to store energy due to the damping action between taper piston and sealing body in pressure body of super fishing jar.
CSJ Super Fishing Jar Datasheet of Downhole Drilling Tools
| Model | CJS31B | CJS36B | CJS46B | CJS64B | CJS70B | CJS76B | CJS80B | CJS80B |
| Pull-down length(mm) | 3827 | 3875 | 4065 | 4410 | 4430 | 4435 | 4435 | 4500 |
| OD. (mm) | 80 | 95 | 121 | 165 | 178 | 197 | 203 | 229 |
| ID.(mm) | 25.4 | 28 | 45 | 57 | 60 | 71 | 71 | 76 |
| Stroke(mm) | 298 | 298 | 305 | 320 | 320 | 330 | 330 | 330 |
| Tensile Load(KN) | 300 | 500 | 980 | 1270 | 1570 | 1870 | 2100 | 2200 |
| Max. tension downhole(KN) | 150 | 200 | 400 | 750 | 800 | 800 | 800 | 1000 |
| Max. Work Torque(KNm) | 3 | 4 | 8 | 15 | 17 | 20 | 22 | 25 |
| Sealing pressure | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Max. working temp(℃) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| API Connection | 2 3/8 | NC26 | NC38 | NC50 | NC50 | 6 5/8 | 6 5/8 | 7 5/8 |
| Weight(kg) | 80 | 157 | 248 | 600 | 630 | 860 | 900 | 1120 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
