Product Details:
|
| Prodcut Name: | Crankshaft Assembly | Application: | Drilling Mud Pump |
|---|---|---|---|
| Structure: | Triplex Piston Mud Pump | Stroke Length: | 12" (305mm) |
| Stroke Rating Spm: | 120 | Approx.Weight: | 24791kg |
| Power Rating: | 1600HP (1193KW) | Condition: | New |
| HS Code: | 8431431000 | Specification: | 4615*3276*2688mm |
| High Light: | Triplex Piston Mud Pump Spare Parts,Crankshaft Assembly Mud Pump Spare Parts,Piston Mud Pump Crankshaft Assembly |
||

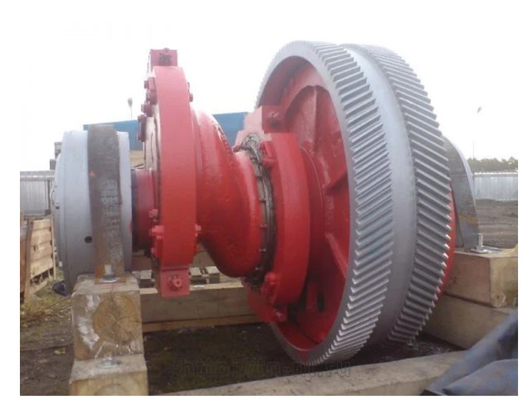

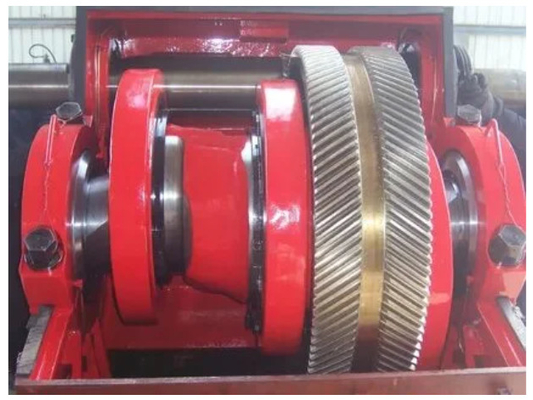

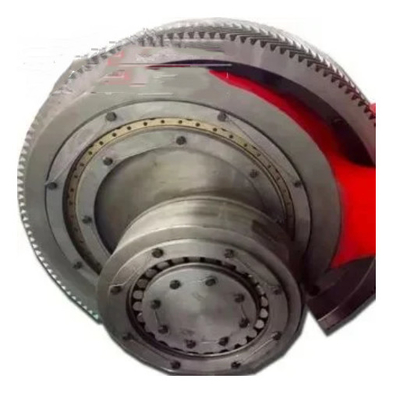

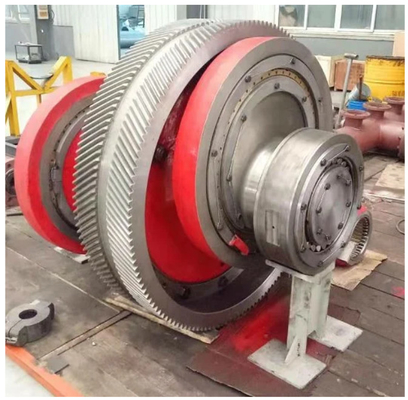

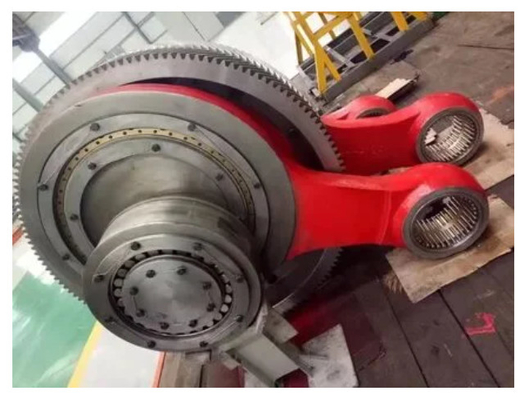

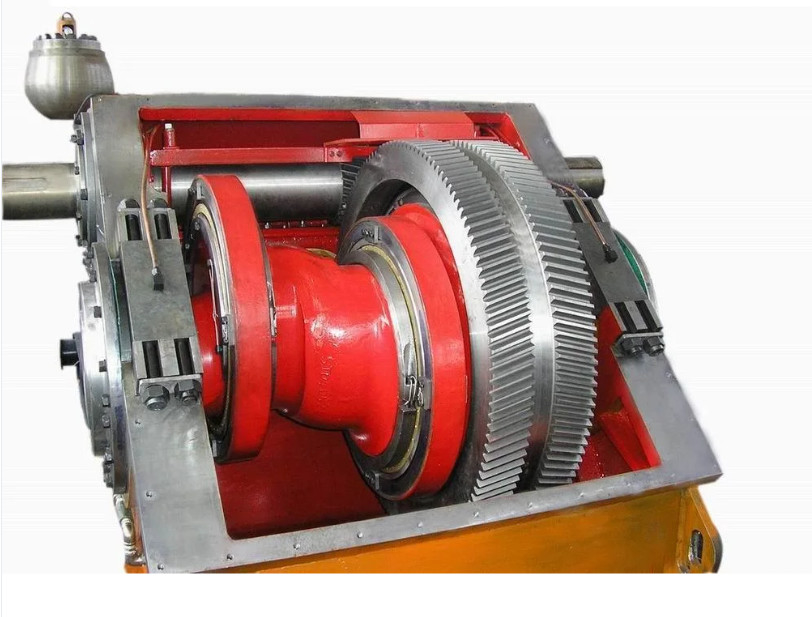

Oilfield Drilling API Triplex Piston Mud Pump Spare Parts Crankshaft Assembly
Crankshaft Assembly Datasheet of Mud Pump Spare Parts:
| Model | F500 | F800 | F1000 | 1300 | F1600 | F2200 |
| Power rating HP(kw) | 500(373) | 800(597) | 1000(746) | 1300(969) | 1600(1193) | 2200(1618) |
| Stroke rating SPM | 165 | 150 | 140 | 120 | 120 | 105 |
| Stroke length (in/mm) | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 | 356 |
| Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 3.512 |
| Inlet dia. (in/mm) | 8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 | 305 |
| Outlet dia. (in) | 4" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 130 |
| Valve | API 5# | API 6# | API 6# | API 7# | API 7# | API 8# |
| Max. liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 | φ140-φ230 |
| Overall dimension | 3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 | 6000*3456*2746 |
| Approx.weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 | 38800 |
Crankshaft Assembly Features of Mud Pump Spare Parts:

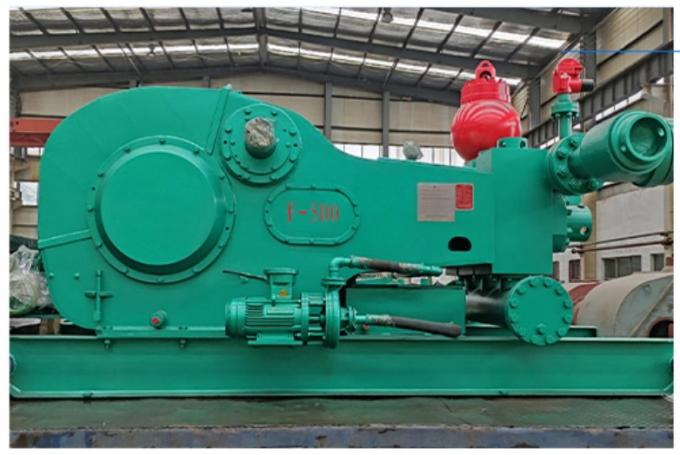

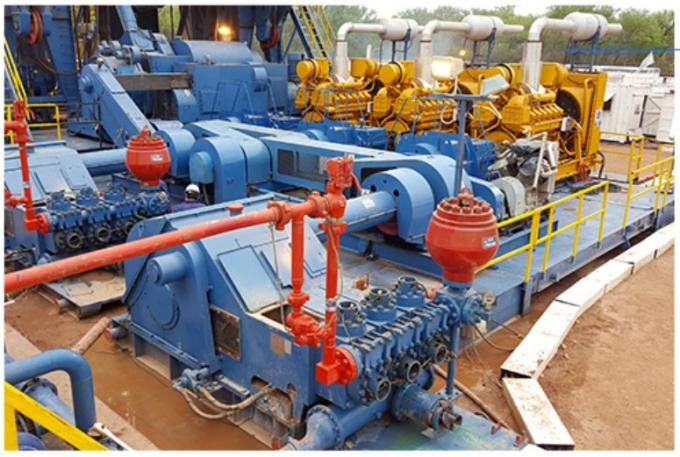

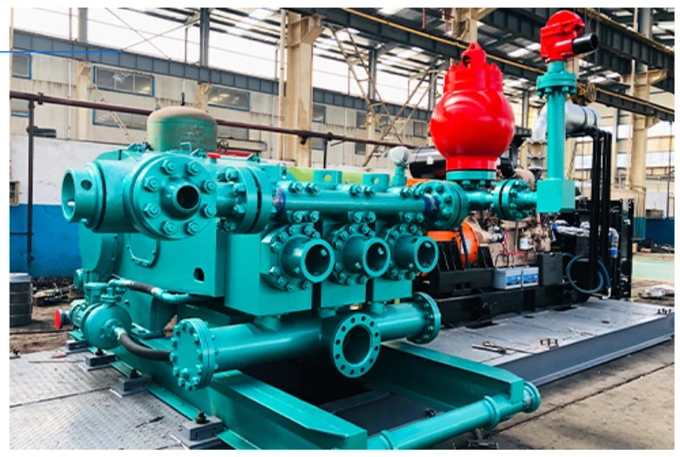

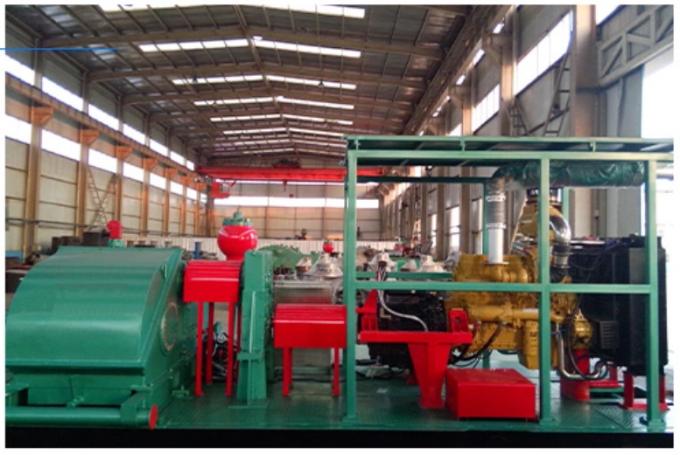

F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.
F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.
