Product Details:
|
| Type: | Mud Pump Spare Parts | Condition: | New |
|---|---|---|---|
| Core Components: | Valve Assembly | Material: | Cast Steel |
| Surface Treatment: | Spray-Paint | Operation Pressure: | 5000 PSI |
| Tensile Strength: | >610MPa | HS Code: | 8431431000 |
F1300 F1000 API 7K Mud Pump Spare Parts Hydruaic Control Valve Assembly

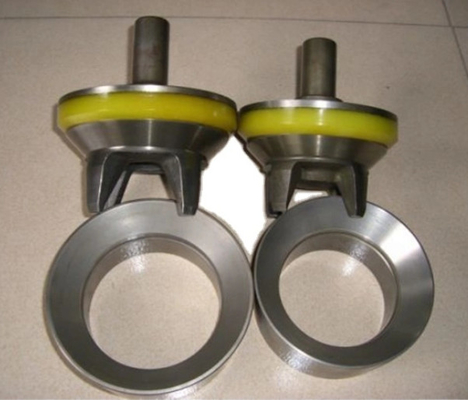

Valve Assembly Description of Mud Pump Spare Parts
The valve assembly consists of the valve and valve seat. Valve and valve seat are made of one-piece premium forged alloy steel, and follow the manufacturing process specification directly to assure the good finish, accurate size. With the advanced heat treatment it features high ductility, high strength and the surface hardness is up to HRC58.
The seal of valve body is made of polyurethane or synthetic rubber and has high wear resistance and long service life. It can be removed and replaced easily.
Mud Pump Spare Parts Valve Assembly Main Features:
1) Material of body and seat: 20CrMnTi/20CrMoCi
2) Valve insert material: NBR, CPU, TPU
3) Structure: full open style, three web style, four web style
4) Depth of Carburized Layer: 1.80~2.22mm
5) Hardness: HRC58-65
6) Temperature tolerance property: -60ºC~100ºC
7) high strength, high toughness, high precision sizes.

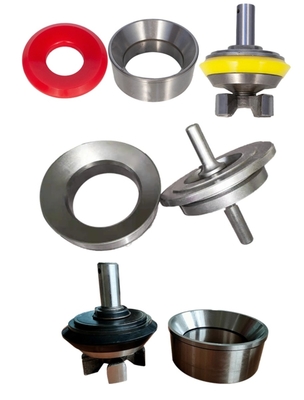

We can offer a full range of valves and seats:
- full open valve and seat (wing guided valve and seat)
- The full open seat comes with wing guided valve.There is four wing and three wing.
- inertia friction welded: two-piece valve body wing welded to the valve body.
- integrated forged: one-piece valve body wing and valve body are solid forged.
- 3 web design valve and seat (stem guided valve and 3 web seat)
- 4 web design valve and seat (stem guided valve and 4 web seat)
- The three web/four web seat comes with stem guide valve.
Mud Pump Spare Parts Valve Assembly Technical Parameter
| Product name | mud pump valves and seats | ||||||
| Material | 20CrMnTi/20CrMoNi | ||||||
| Length of use | 400-600h | ||||||
| Application | high-pressure drilling operations | ||||||
| Brand | Type | ||||||
| Emsco | F-350 | F-500 | F-650 | F-800 | F-1000 | FA-1300 | FB-1300 |
| FA-1600 | FB-1600 | ||||||
| Gardener denver | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | ||
| National | T-800 | T-1000 | T-1300 | T-1600 | |||
| Oilwell | A-350 | A-560 | A-650 | A-850 | A-1100 | A-1400 | A-1700 |
| China | 3NB-350 | 3NB-500 | 3NB-800 | 3NB-1000 | 3NB-1300 | 3NB-1600 | 3NB-2200 |
