Product Details:
|
| Product Name: | Bridge Plug | Weight: | 25 Kg |
|---|---|---|---|
| HS Code: | 8431431000 | Length: | 26" |
| Condition: | New | Size: | 92 |
| Material: | Composite Material | Diameter: | 28 |
| Thread: | EUE,BTC | Use: | Well Drilling |
| High Light: | Composite Mechanical Downhole Drilling Tools,API Bridge Plug Wireline Set,Downhole Drilling Bridge Plug Wireline Set |
||

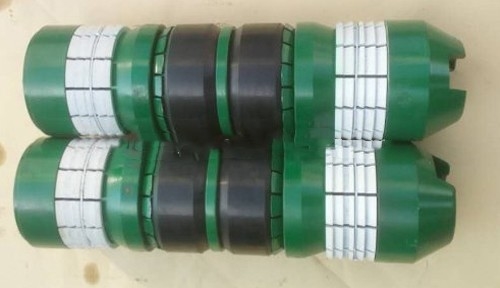

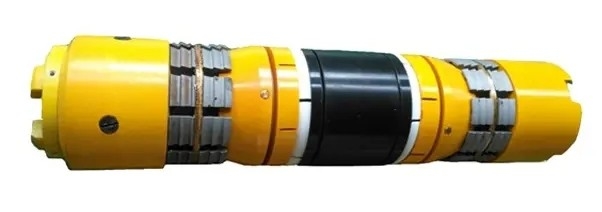

API Bridge Plug Wireline set Downhole Drilling Tools Drillable Composite mechanical
Bridge Plug Description of Downhole Drilling Tools:

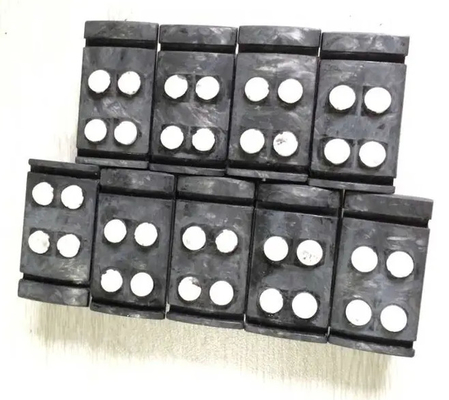

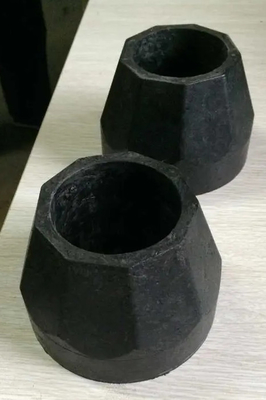

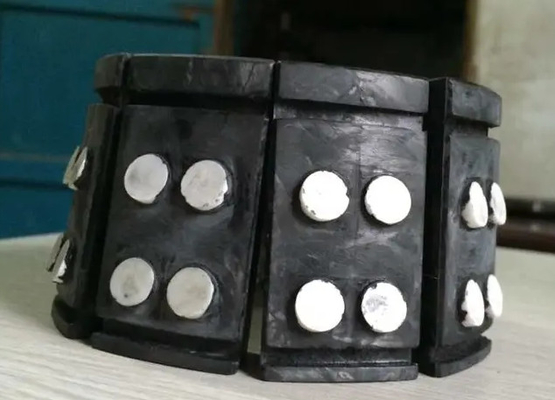

Drillable Composite Bridge Plug mainly consists of dissolvable ball, mandrel, rubber, composite slip, cone, bowl, release/set pin, lower sub.
The setting tool has a relative force, and works on the lower sub, in the influence of the force, the set pin will be cut off. And the rubber is compressed by the cone, tension within limits, the slip will bite the casing, then the bridge plug will be set.
The value of tension continuous increase, release pin will be cut off; setting tool is separated from the bridge plug.
Pull out the setting tool, put into dissolvable ball. After the operation, the dissolvable ball will be dissolved. The bridge plug can be quickly drilled according to the measures, production needs.
Downhole Drilling Tools Bridge Plug Main Features:
Type:Y453DS/DTJ92×28
Suitable casing size:13.5-9.5 lb/ft(99.56mm-103.88mm)
Max OD: 3.62"(92mm)
Min ID: 1,1"(28mm)
Total length: 26"(660mm Ball type)
Working pressure: 10000psi (70MPa)
Working temperature:302℉(150℃)
Seating load:120-130kN
Dissolvable balls size :1.18"(30mm)
Bridge Plug Datasheet of Downhole Drilling Tools
| Casing size | 5 1/2 " | ||
| Casing ID (mm) | 124.26 | 118.62 | 115.02 |
| Length(mm) | 710 | 710 | 746 |
| OD(mm) | 114 | 110 | 100 |
| ID(mm) | 30 (ball cage) | 30 (ball cage) | 20 ( ball cage) |
| Resistant Tem(ºC) | 150 | 150 | 150 |
| Bearing pressure(MPa) | 70 | 70 | 70 |
| Blocking ball diameter (mm) | 38.1 | 38.1 | 31.75 |
| Sitting seal load(KN) | 160-220 | 160-200 | 160-200 |
