Product Details:
|
| Product Name: | Casing Pressure Testing Plug | Weight: | 10 Kg |
|---|---|---|---|
| Usage: | Connection | Application: | Drilling Stem |
| Machine Type: | Downhole Tools | Processing Type: | Forging |
| Packing: | Plywood Box(free-fumigation) | Condition: | New |
| High Light: | Downhole Drilling Tools API7-1,Casing Pressure Testing BOP System,Cup Tester Downhole Drilling Tools |
||
Cup Tester Downhole Drilling Tools API7-1 Casing Pressure Testing BOP System
Cup Tester Description of Downhole Drilling Tools

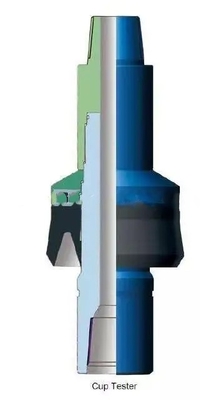

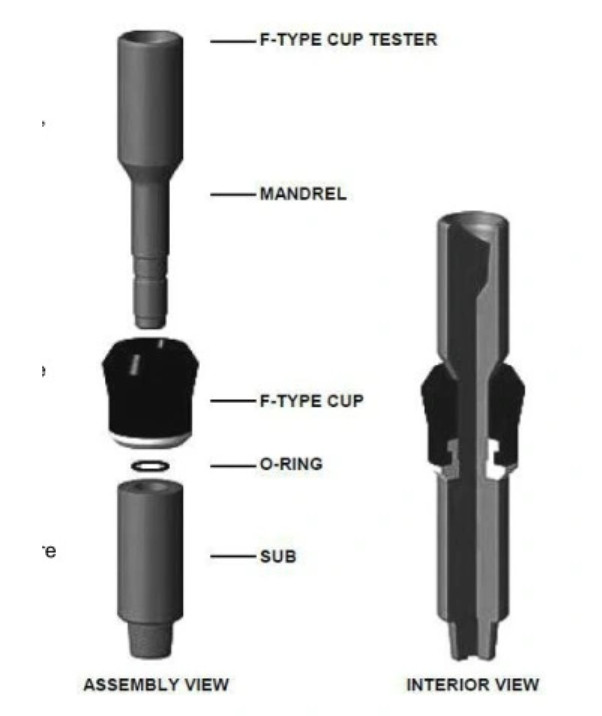

Casing Cup Type Tester is mainly used for the pressure test on the casing string and blowi ur preventer stack. All of the oil (gas and water) well has been running in hole with casing and has been installing the mouth of wellhead equipment, to test pressure delamination one-off for casing and control blowout pressure system, also can be used to test pressure for casing at wellsite pipe yard. Test pressure very easy, provided the test pressure tool put in the casing. Usually the Cup Type Tester assembly consists of a mandrel, sub and F Cup Type Tester.
Lake Petroleum's Cup Type Tester is produced strictly according to API 7-1 Spec Standard.
Cup Tester Datasheet of Downhole Drilling Tools
| Type | Connection API | Size of Suitable Casing | OAL(mm/inch) | |
| O.D. | Wall Tickness | |||
| (mm/inch) | (mm/inch) | |||
| SYD104 | NC26 | 114.3(4-1/2) | 7.4(19/64) | 651(25-5/8) |
| SYD125 | NC31 | 139.7(5-1/2) | 9.2(23/64) | 660(26) |
| SYD128 | NC31 | 197.7(5-1/2) | 7.7(5/16) | 660(26) |
| SYD157 | NC38 | 177.8(7) | 12.7(1/2) | 710(27-61/64) |
| SYD183 | NC38 | 193.7(7-5/8) | 8.3(21/64) | 730(28-3/4) |
| SYD206 | NC38 | 219.1(8-5/8) | 8.9(23/64) | 751(29-9/16) |
| SYD222 | NC50 | 244.5(9-5/8) | 13.8(35/64) | 787(31) |
| SYD261 | NC50 | 273(10-3/4) | 8.9(23/64) | 787(31) |
| SYD320 | NC50 | 339.7(13-3/8) | 13.1(1/2) | 815(32-5/6) |
