Product Details:
|
| Warranty:: | 6 Months | Weight (KG):: | 2 |
|---|---|---|---|
| Type:: | Cable Protector | Use:: | Well Drilling |
| Advantage:: | High Performance | Application:: | ESP |
| High Light: | Forged Casting Control Line Clamp,Downhole Drilling Tools ESP 4 1/2",Drilling Tubing Cross Coupling Cable Protector |
||

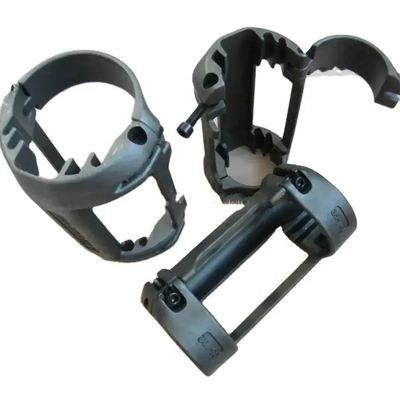

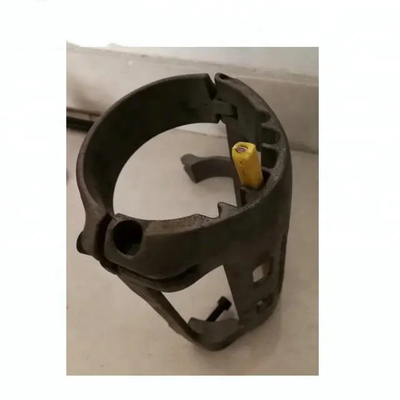

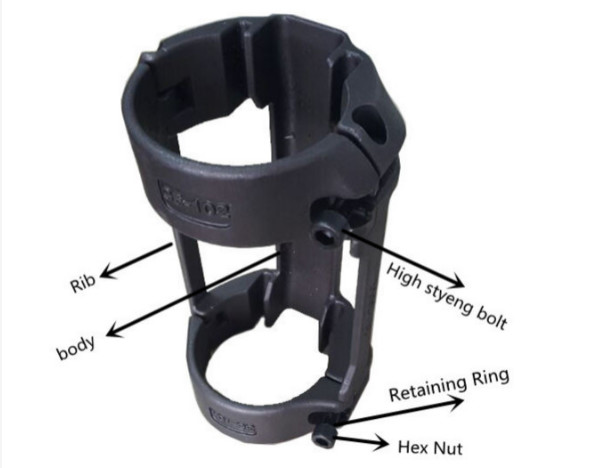

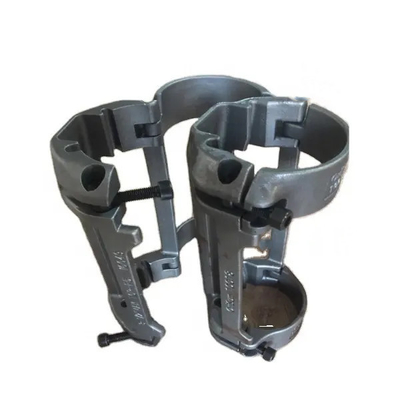

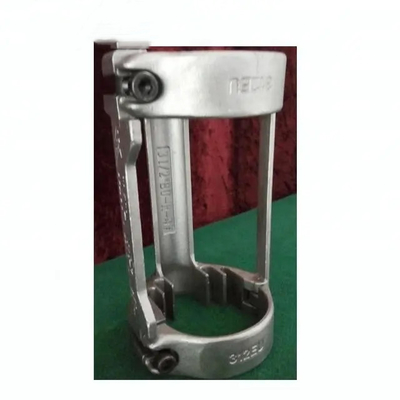

Downhole Drilling Tools ESP 4 1/2" Tubing Cross Coupling Cable Protector Casting Control Line Clamp Forged Type
Description:
The product is installed at the center of API tubings. Ideal for the protection of any size ESP cables, control lines and chemical injection lines etc., it provides a safe and quick way of conveying and securing downhole cables into well-bores.
Features:
All cable protectors have double protection to resist corrosion
All hinges are spot-welded to enhance the overall integrity of the product
Spring friction pad gripping system for superior grip
Slip and rotation resistant
Non-destructive gripping action
Designed to eliminate compression-reduced damages to the conductors
Specifications:
Manufactured of low carbon steel or stainless steel

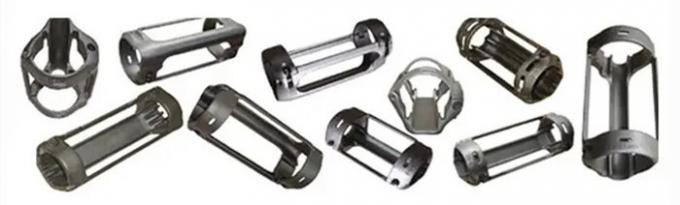

Available as cross-coupling and mid-joint protectors
Suitable for API tubing sizes from 2 3/8" to 7"
Configured for flat, round or square cables, chemical injection lines, umbilicals etc.
Multichannel designis available to separate multiple lines
Technical Parameters:
| Description | Tube Size | Cable Type | Cable Size |
| Cable Protector 2-3/8R6-8 | 2-3/8u | Round | 06-8mm |
| Cable Protector 2-3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
| Cable Protector 2-3/8R32-34 | 2-3/8" | Round | 032-34mm |
| Cable Protector 2-7/8R6-8 | 2-7/8" | Round | 06-8mm |
| Cable Protector 2-7/8R30-33 | 2 - 7/8" | Round | 03O-33mm |
| Cable Protector 2-7/8R34-37 | 2-7/8" | Round | 034-37mm |
| Cable Protector 2-7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
| Cable Protector 2-7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
| Cable Protector 2-7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
| Cable Protector 3-1/2R6-8 | 3-1/2" | Round | 06-8mm |
| Cable Protector 3-1/2R30-33 | 3-1/2" | Round | 03O-33mm |
| Cable Protector 3-1/2R34-37 | 3-1/2" | Round | 034-37mm |
| Cable Protector 3-1/2R38-42 | 3-1/2" | Round | 038-42mm |
| Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
| Cable Protector 3-1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
| Cable Protector 3-1/2F19-23/70 | 3-1/2" | Flat | 19-23mm SQUARE |
| Cable Protector 4-1/2R6-8 | 4-1/2" | Round | 06-8mm |
| Cable Protector 4- 1/2R34-37 | 4-1/2" | Round | 034-37mm |
| Cable Protector 4-1/2R38-42 | 4-1/2H | Round | 038-42mm |
| Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
| Cable Protector 4-1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
| Cable Protector 4-1/2F19-23/60 | 4-1/2" | Flat | 19-23mm SQUARE |
| Cable Protector 5-1/2R6-8 | 5-1/2" | Round | 06-8mm |
| Cable Protector 5-1/2R34-37 | 5-1/2" | Round | 034-37mm |
| Cable Protector 5-1/2R38-42 | 5-1/2" | Round | 038-42mm |
| Cable Protector 5-1/2F11/34 | 5 -1/2" | Flat | 11mm SQUARE |
| Cable Protector 5-1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
| Cable Protector 5-1/2F16-19/70DUAL | 5-1/2" | Flat | 19-23mm SQUARE |
| Cable Protector 7R6-8 | 7" | Round | 06-8mm |
| Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
