Product Details:
|

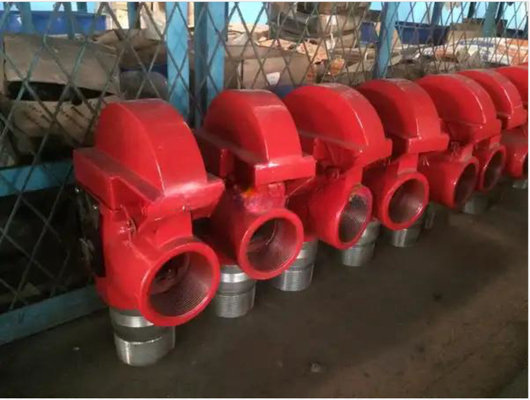

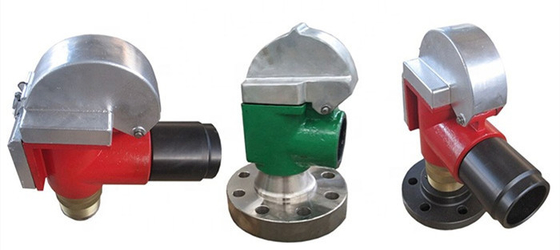

| Product Name: | JA-3 A Shear Relief Valve Safety Valves | Material: | Cast Iron |
|---|---|---|---|
| Applicable Industries: | Drilling Oilfield, Mud Pump Spare Parts | Warranty: | 12 Months |
| Machine Type:: | Drilling Mud Pump | Connection: | Thread/Flange |
| Color: | Customerized | Certification: | ISO/API |
| High Light: | Mud Pump High Pressure Relief Valve,Oilfield High Pressure Relief Valve |
||
Description:
To ensure safety, the drilling pump is equipped with safety valve in the outlet, which is able to control the ultimate pressure of the pump within the admitted scope.

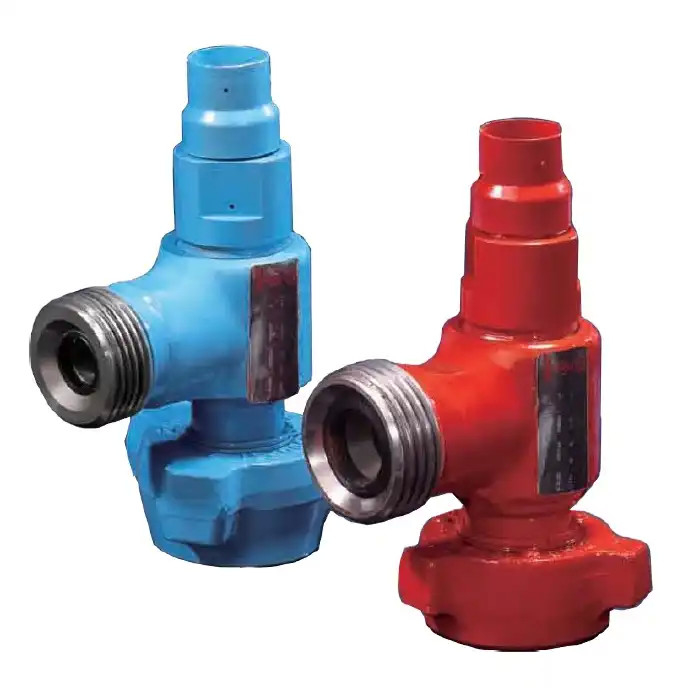

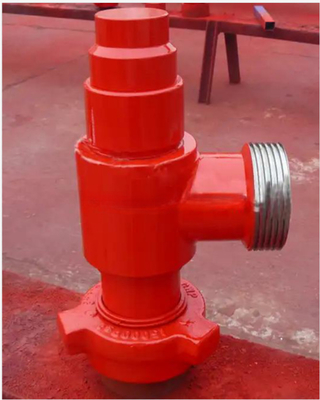

The high pressure safety valve is forged by high quality structural alloy steel. As a kind of protection device and human safety device, it is generally installed on cementing devices, fracturing pump, high pressure operation piping, pressure vessel and devices under high pressure and high flow capacity. It controls elastic force of the valve seat by adjusting the nut on the top. Once the pumping pressure or piping pressure exceeds pre-established pressure value, safety valve opens automatically to release the pressure. When the pressure value reaches the normal value, valve rod will recover the position by spring and close the valve.
Features:
1. Safety value is featured by simple structure and small size.
2. No leakage under normal circumstances
3. Achieve automatic valve opening and closing by internal belleville spring.
4. The function of high pressure safety valve on remote console is to protect devices from damaging due to overpressure.
5. Without quick-wear parts that need to be changed regularly, pressure regulating stepless is accurate.
6. No need to stop working to perform overpressure protection and the reliability is better than shearing safety valve.
7. Operation standard of product follows API-6A. Connection mode and specification are fully consistent with like products in SPM, which ensures the high interchangeability.
Technical Parameter:
| Name | Cold working pressure | Connection type | Buckle model |
| Safety valve Relief valve |
42Mpa(6000psi) | Hammer Union | M×M |
| 70Mpa(10000psi) | M×F | ||
| 105Mpa(15000psi) | F×F |
| Mud Pump Models: | |||
| EMSCO | F-350, F-500, F-650, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-2200,D-300, D-375, D-500, D-700, DA-500, DA-700 | ||
| BOMCO | |||
| GARDNER DENVER | PAH, PJ8A, TEE, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 | ||
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 | ||
| NATIONAL | JWS-400, 7-P-50, 8-P-80, 9-P-00, 10-P-130, 12-P-160, 14-P-200, 14-P-220,K-500, K-500A, K-700, K-700A | ||
| OILWELL | A-350-PT, A-560-PT, A-600-PT, A-850-PT, A-110-PT, A-1400-PT, A-1700-PT | ||
| UNBT | 8T-310, 8T-650, BRN-1, NBT-600, UNB-600, UNBT-950, UNBT-1180, UNBT-1180L | ||
| QZ/LS | 3NB-800, 3NB-1000, 3NB-1000C, 3NB-1300, 3NB-1300C, 3NB-1600 | ||
| WIRTH | TPK1000, TPK1600, TPK2000 | ||
We also provide following parts and equipments
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and spares.
2. Ram and Annular BOP spares
3. API 8A/8C Tubular Handling Tools
4. Mud pump and Mud pump expendables.
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose
