Product Details:
|
| Product Name: | Gate Valve With Thread End Connection And Repair Kits | Material: | Carbon Steel |
|---|---|---|---|
| Connection Form: | Thread | Warranty: | 1 Year |
| Application: | Oil Field | Weight (KG): | 100 |
| High Light: | Carbon Steel Pump Gate Valve,Mud Pump Gate Valve,Mud Pump Spare Parts API |
||
Gate Valve With Thread End Connection And Repair Kits Mud Pump Spare Parts API
Features
1. Interchangeable with DEMCO® 5000 PSI mud gate valves.
2. In-Line field repairability. For internal parts inspection, or routine maintenance, the bonnet assembly can be quickly removed from the valve body. Parts are replaced as needed, the bonnet assembly re-installed, and the valve is tested and returned to service.
3. Open and close with ease. Double acting threads and rising stem design mean that opening and closing the gate happens quickly, and with minimal effort to rotate the handle assembly.
4. Sight lens included on larger sizes. Allows viewing of the stem for determination of gate position, while also protecting the stem from dust and dirt.
5. Drop-Tight Sealing. Exclusive seat design provides drop-tight shut-off which is accomplished by metal to rubber sealing.

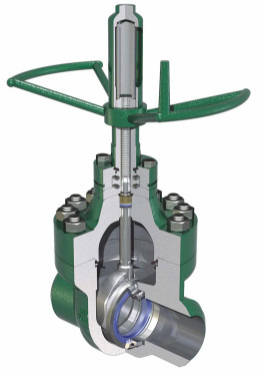

6. Bi-directional sealing design. The slab gate connects to the stem with a T-slot design, allowing the gate to float in its slot, to seal against either side of the rubber seat. This allows a pressure responsive seal in either direction of flow through the valve.
7.Extensive Quality Assurance verification and testing prior to shipment.
Connection Type
Flanged end connections-This type of end connection does not require turning or welding the valve. The integral RTJ flanges are connected to matching pipe flanges with bolts and nuts
Threaded End connections--this type of end connection, also reffered to as screwed, are suitable for applications up to 7500PSI. Line pipe(LP) and 8RD threads are available.
Butt Weld End Connections--this type of end connctions is manufactured to match the pipe weld connection. The two beveled ends are butted together and welded in place. Welded connections are best suited for applications where frequent removal from the pipeline is not required
Welding Warning: Prior to welding, the seat and bonnet seal must be removed from the valve body.
| Standard | API Spec 6A |
| Nominal size | 2”~4” |
| Rated pressure | 5000psi - 15000psi |
| Produce specification level | PSL:1-4 |
| Performance Requirement | PR:1-2 |
| Temperature level | K~U |
| Material level | AA,BB,CC,DD,EE,FF,HH |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
