Product Details:
|
| Product Name: | Shale Shaker Screen | Condition: | New |
|---|---|---|---|
| Application: | Drilling Fluid Shale Shaker, Oil Field | Size: | 3140*1980*1540mm |
| Dimension(L*W*H): | 2700*1800*1500mm | Material: | 304 Stainless Steel |
| Shaking Intensity: | 7.2g | Weight: | 5 KG |
| High Light: | Composite Shaker Screen Mesh,API Standard Swaco Steel Frame Screen,Mud Pump Shale Shaker Mesh |
||
Swaco Steel Frame Screen / Composite Shale Shaker Mesh API Standard Mud Pump Spare Parts

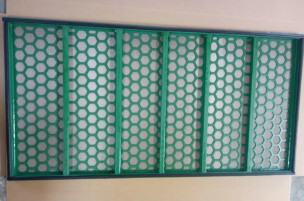

Steel frame screen
Steel frame screens are mostly applied to the shale shakers with wedge fastening equipment. The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction.They are sturdy and reliable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessory rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply steel frame screens with mesh sizes ranging from 20 to 250.
Features of Steel frame screen
I. Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better.
II.High strength frame, multi-ribs and the mesh cloth with moderate tension , from one reliable combination , which can increase screen's acceptable flow , the intensity and the lifetime
III.The wedge-shaped fastening device, can make the erection of screens more handily and quickly
IV.The mesh divided into many independent small units by grids of the backing plate ,can prevent rips or tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damage. By doing so, the operator can cut down the stop time and reduce the cost.
| D 100 Separation(Micron) | API Screen Number |
| >1850.0 TO 2180.0 | API 10 |
| >780.0 TO 925.0 | API 20 |
| > 462.5 TO 550.0 | API 35 |
| > 390.0 TO 462.5 | API 40 |
| > 275.0 TO 327.5 | API 50 |
| > 231.0 TO 275.0 | API 60 |
| > 196.0 TO 231.0 | API 70 |
| > 165.0 TO 196.0 | API 80 |
| > 137.5 TO 165.0 | API 100 |
| > 116.5 TO 137.5 | API 120 |
| > 98.0 TO 116.5 | API 140 |
| > 82.5 TO 98.0 | API 170 |
| > 69.0 TO 82.5 | API 200 |
| > 58.0 TO 69.0 | API 230 |
| > 49.0 TO 58.0 | API 270 |
| > 41.5 TO 49.0 | API 325 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-4. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
