Product Details:
|
| Product Name: | Shear Pump | Capacity: | 105 M³/h |
|---|---|---|---|
| Rotation Speed: | 1750r/min | Weight (KG): | 1000 |
| Dimension(L*W*H): | 1180X1180X1630mm | Head: | 24m |
| High Light: | Drilling Fluid Shear Pump，Mud Processing Shearing Pump 45KW， Solids Control Shear Pump | ||

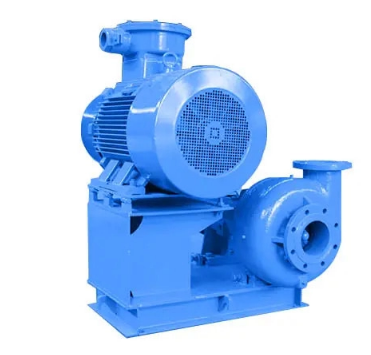

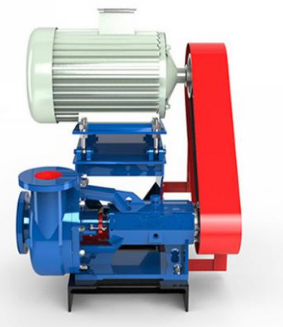

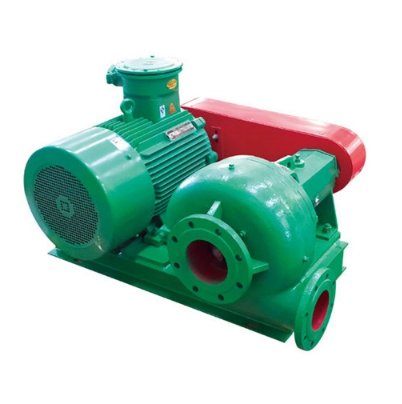

Stainless Steel Mud Processing Shearing Pump / Solids Control Shear Pump For Oilfield
Shear pump is one of the necessary pumps when process- ing drilling fluid.It is specially used to shear the polymer(or clay) in the drilling fluid(mud).The polymer(or clay)in the drilling fluid system should be fully sheared in advance.After cutting,enter the drilling fluid system again to improve the performance of the drilling fluid in order to give full play to its role.
Main Features of Shear Pump
1. High efficiency for shear the polymers eliminates fish eyes.
2. FAG, SKF or other top brand bearing.
3. SOG oil seal.
4. Standard options : IECEX, ATEX, UL, DGMS, CE, Gost.
5. Save the bentonite up to 30%.
6. Meet the drilling mud demand of higher lifting and discharge rate.
| Model |
Capacity | Head | Rotation Speed | Efficiency | NPSH | Power (KW) | |
| (m3/h) | (m) | (r/min) | (%) | (m) | Shaft Power | Motor Power | |
| HJQ5'6J-75kW | 150 | 30 | 2150 | 28 | 3 | 46 | 75 |
| HJQ5'6J-55kW | 140 | 26 | 2050 | 28 | 3 | 35 | 55 |
| HJQ5'6J-45kW | 105 | 24 | 1750 | 28 | 2.8 | 25 | 45 |
| HJQ5'6J-37kW | 105 | 24 | 1750 | 28 | 2.8 | 25 | 37 |
| Iten No. | Name | Part No. | QTY. | Item No. | Name | Part No. | QTY. |
|
1 |
Pump head | WJQ56J0001S | 1 | 16 | Shield cover | WJQ56J00016S | 1 |
| 2 | Foundation | WJQ56J0002S | 1 | 17 | Bolt | WJQ56J00017S | 4 |
| 3 | Bolt | WJQ56J0003S | 4 | 18 | Nut | WJQ56J00018S | 4 |
| 4 | Nut | WJQ56J0004S | 4 | 19 | Spring gasket | WJQ56J00019S | 4 |
| 5 | Spring gasket | WJQ56J0005S | 4 | 20 | Washer | WJQ56J00020S | 4 |
| 6 | Bolt | WJQ56J0006S | 4 | 21 | Pin | WJQ56J00021S | 3 |
| 7 | Nut | WJQ56J0007S | 4 | 22 | Split pin | WJQ56J00022S | 3 |
| 8 | Pump pulley | WJQ56J0008S | 1 | 23 | Bolt | WJQ56J00023S | 2 |
| 9 | Bolt | WJQ56J0009S | 3 | 24 | Bolt | WJQ56J00024S | 2 |
| 10 | Spring gasket | WJQ56J00010S | 3 | 25 | Nut | WJQ56J00025S | 8 |
| 11 | Distended sheath | WJQ56J00011S | 1 | 26 | Spring gasket | WJQ56J00026S | 4 |
| 12 | Key | WJQ56J00012S | 1 | 27 | Motor base | WJQ56J00027S | 1 |
| 13 | V-belt | WJQ56J00013S | 4 | 28 | Motor | WJQ56J00028S | 1 |
| 14 | Motor pully | WJQ56J00014S | 1 | 29 | Suction rubber pad | WJQ56J00029S | 1 |
| 15 | Key | WJQ56J00015S | 1 | 30 | Discharge rubber pad | WJQ56J00030S | 1 |
