Product Details:
|
| Product Name: | Hydraulic Torque Machine | Material: | Carbon Steel |
|---|---|---|---|
| Color: | Blue | Condition: | New |
| Size: | 2-3/8 Inch To 14 Inch | Application: | Pipes, Casings And Downhole Tools |
| Control Mode: | PLC+15" Tablet PC | Max.pressure: | 20 Mpa |

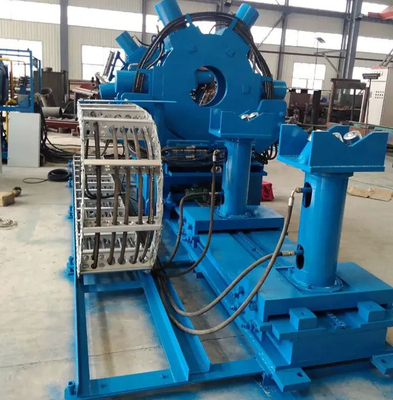

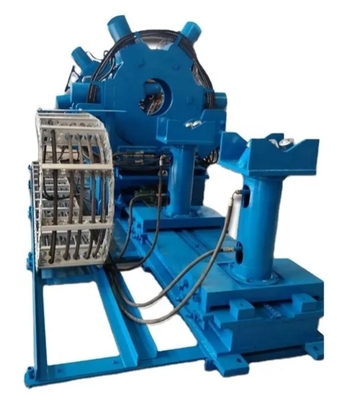

Hydraulic Torque Machine JQ 400 / 150 Hydraulic Unit
Hydraulic Torque Machine Description of Downhole Drilling Tools

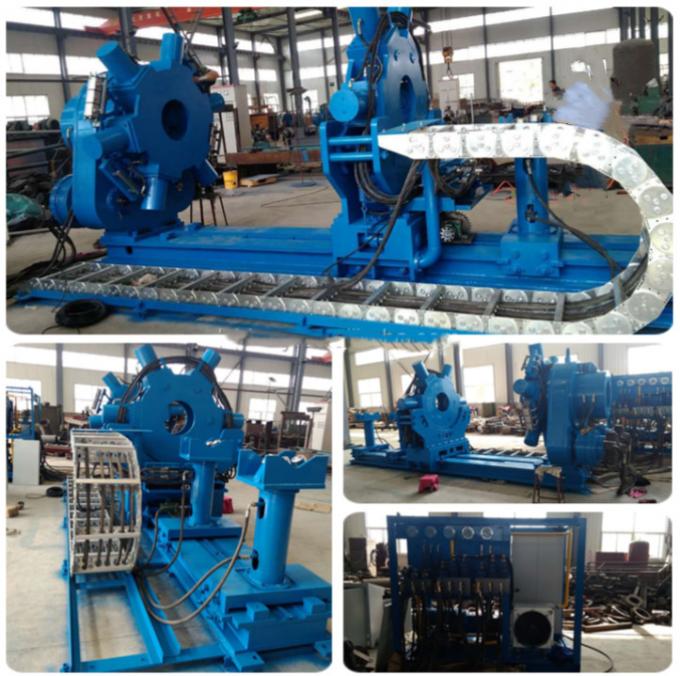

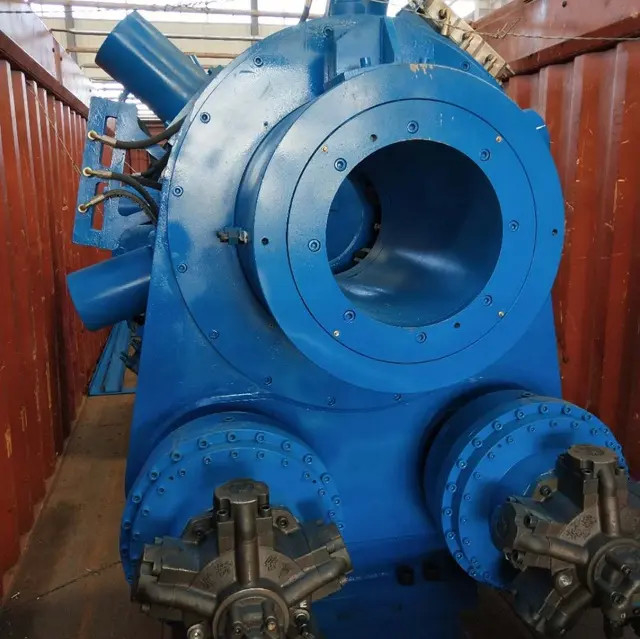

JQ400/150 hydraulic torque machine has six hydraulic cylinders, in working, the pipe is fixed ,the six hydraulic cylinders synchronized able to clamp the coupling and rotate continuousely. Every cylinder control one jaw, and every three cylinder move synchronously, so it can be used for both big and small workpiece; for small pipes, only three jaws scratch out to clamp the coupling, and for big ones, it is six. The reliable synchronizer is imported from Italy. To adjust the center automatically, the backup tong can move a bit. The clamp force is controlled by the hydraulic system.
The JQ400/150 torque machine is used for making up & break out the pipes, casings and downhole tool.
Dies marking:non-marking according to API, and no damage for the workpiece accuracy.Non marking dies for protect speciality material such as chrome.
Hydraulic Torque Machine Datasheet of Downhole Drilling Tools
| Model | JQ400/150 | Torque accuracy | 150 N.m |
| Centre height | 4.6 FT | Speed range | 0.5-5 r/min(30KW) |
| Max.pressure | 20 Mpa | Rotary speed | 1-15r/min |
| Flow rate | 40-240L/min | Bore diameter | 400 mm |
| Application | 2-3/8 inch~14 inch | Centre height | 4.6FT |
| Speed range | It takes double pump air-cooled hydraulic power, manual stepless speed control the rotary speed, rotating head speed is :0.5-5r/min(30KW). | ||
| Make up torque | a) Max. torque:The Max. make-up torque is150KN.M at 20Mpa pressure; | b) Torque display: The computer can display, record and control the torque and turns. |
|
| Control mode | PLC+15” tablet PC,operation with buttons. And the machine will stop automatically reaching the setting torque. | ||
| Torque accuracy | 150N.m | Motor power | 30Kw |
| Hydraulic system | Max.pressure:20MPa | flow rate:40-240L/min | |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?

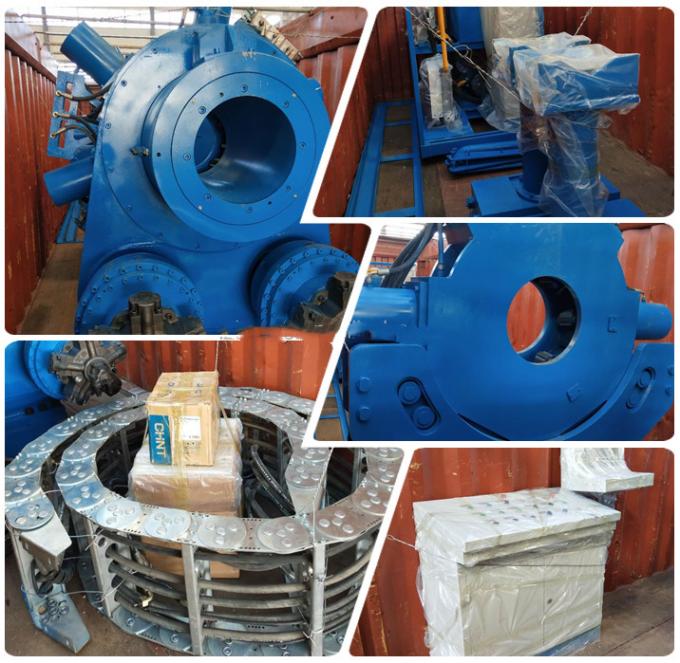

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
