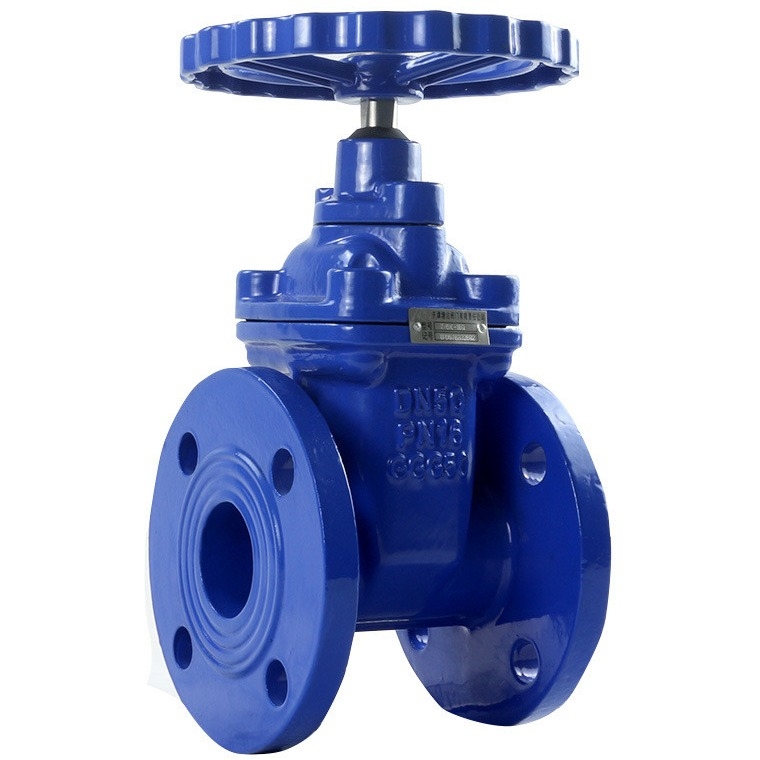

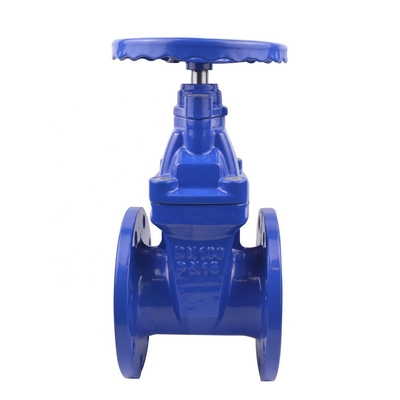

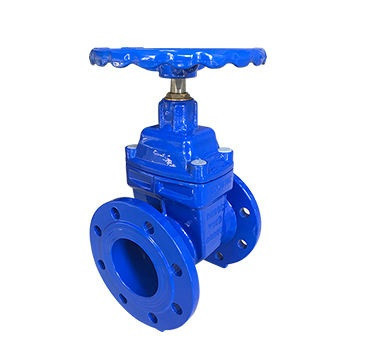

Ductile Cast Iron Manifold Control Valve DN50 Resilient Seated Gate Valve

Ductile Cast Iron Manifold Control Valve DN50 Resilient Seated Gate Valve

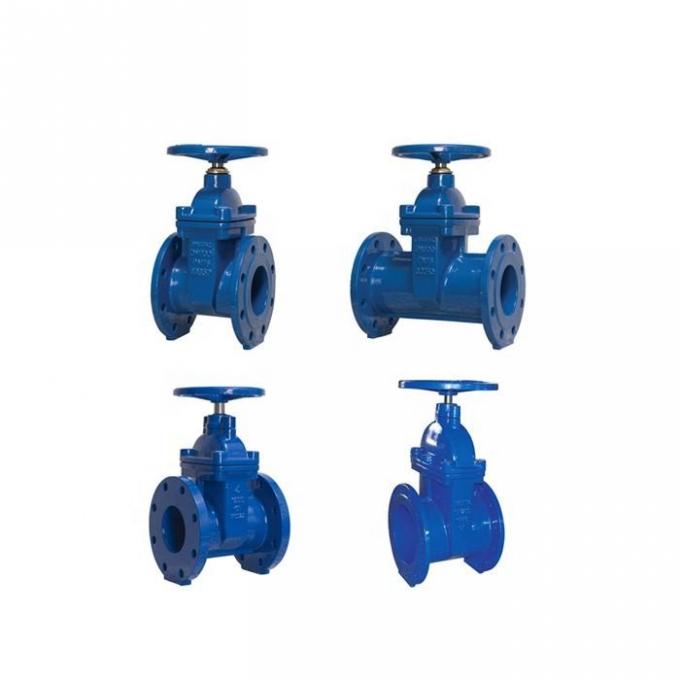

Manifold Control Valve - Gate Valve Description

The new series of pneumatic piston gate valves are hereinafter referred to as gate valves, which are widely used in the industrial field due to their excellent shut-off performance. The nominal pressure is 1.6, 6.4MPa, the diameter is from 40 to 600mm, and the temperature range is -196°C to 500°C.

Features of Manifold Control Valve

Standard: DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515

Flange drilling: DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25

Type: Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem

Material: Body: Ductile iron GGG40/50 or Cast IronGG25

               Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated

               Stem: stainless steel 2Cr13 , SS304,SS316

               Bolt and Nuts : Carbon Steel with zinc plated or SS304,316

               Coating: Internal and external with fusion bonded epoxy coating min250μm

Gate Valve Specification of Manifold Control Valve

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
