Product Details:
|
| Product Name: | CAMERON FC/FL/FLS MUD VALVE GATE | Key Words: | Mud Gate Valve |
|---|---|---|---|
| Media: | Water, Mud | Pressure: | 5000 PSI & 7500 PSI |
| Valve Size: | 2'',3'',4'',5'' | Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| End Connection Type: | Flange, Threaded, Butt-Welded, Hammer Union | Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1~PR2 | Material: | AA, BB, CC, DD, EE, FF |
| High Light: | Z23X-35 Manifold Control Valve,FLS mud gate valve,Manifold Control Valve CAMERON FC |
||

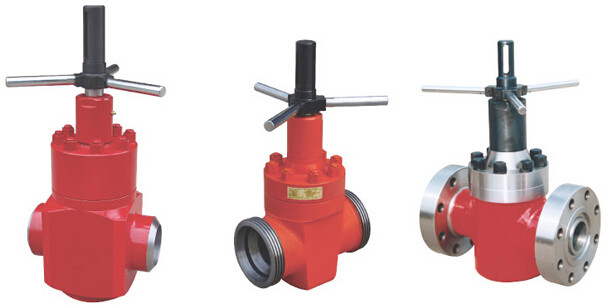

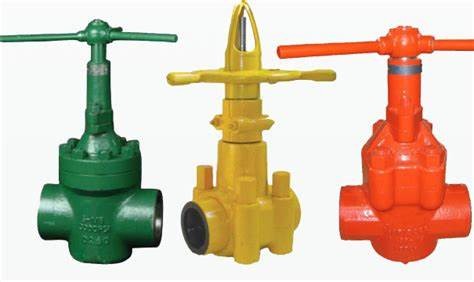

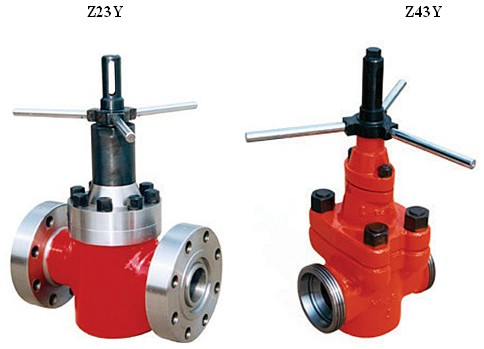

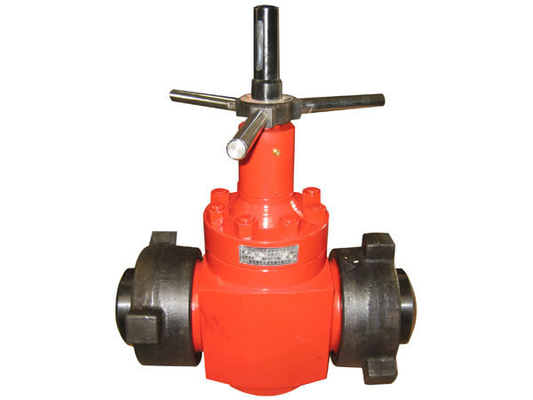

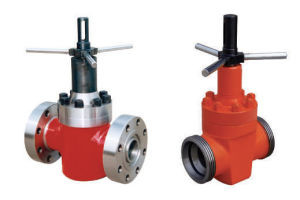

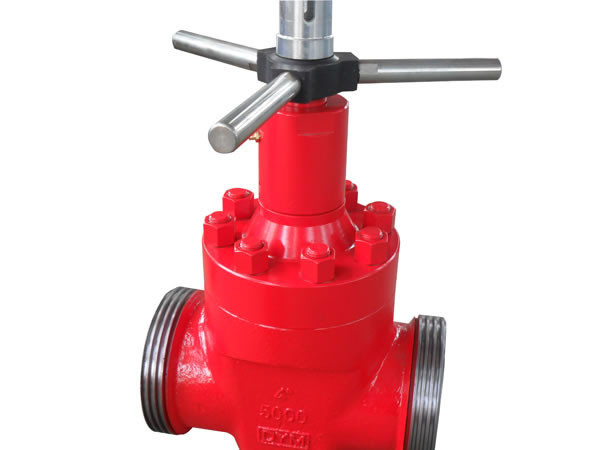

Z23X-35 Series Manifold Control Valve CAMERON FC/FL/FLS MUD GATE VALVE
Manifold Control Valve -Mud Gate Valve Description
Z23X-35 series mud gate valve is typically applied to mud circulating equipment in oil wells or mines, for the purpose of controlling mud flow. With trapezoidal threaded connection, the mud gate valve provides easy installation, high rigidity and safe, reliable performance. The valve seat and flashboard makes use of parallel type, elastic seal for great sealing effect and easy opening. The pipe swing, combined with O type rubber seal ring enables the valve to offer excellent seal even the two ends of the pipes do not seem in a straight line.
Manifold Control Valve -Mud Gate Valve Specification
| Model | Z23X-35-DN50 | Z23X-35-DN65 | Z23X-35-DN80 | Z23X-35-DN100 |
| Operating pressure (Mpa) | 35 | |||
| Drift diameter (mm) | Φ50(2-1/16") | Φ65(2-9/16") | Φ80(8-1/8") | Φ101.6(4-1/16") |
| Working medium | Mud | |||
| Connection type | Union | |||
| Tie-in connection dimension (D) | Tr120×6(Tr100×12) | Tr130×6(Tr120×6) | Tr150×6 | Tr180×8 |
| Length (L) | 230 | 235 | 270 | 330 |
| Operating pressure(PMa) | 2000-10000 |
| Drift diameter | 2"-5" |
| Working medium | Mud |
| Material class | DD-EE |
| Temperature class | L.U |
| Performance level | PR1-PR2 |
| Specification level | PSL1-PSL3 |
Details Of Mud Gate Valve:
Product Name: Mud Gate Valve
Standards: API 6A
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 7500PSI
Types of End Connections: Flanged (RTJ), Threaded, Butt-Welded, Hammer Union
Material: Stainless Steel, Carbon Steel
Trim Material: NBR, HNBR
Working Medium: Oil, Natural Gas, Mud and Gas containing H2S, CO2
Material Class: AA, BB, CC, DD, EE, FF
Temperature Class: LU
Performance Requirement: PR1, PR2
PSL Rating: PSL1, PSL2, PSL3, PSL4
Traceability: Qihang's API6A DM Mud Gate Valves are supplied with full traceability documentation for each component.
Service: Standard, H2S etc
Application: Drilling standpipe manifolds, Pump Manifold Block Valves, Production Manifolds, Production Flow Lines, High Pressure Mud Pipelines, Wellheads and Petroleum/Gas Pipelines etc
Origin: China
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
