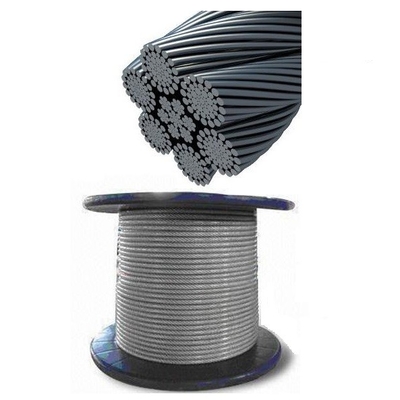

Large Image :  Oilfield 25.4mm 6 x 19S IWRC IPS sZ Lubricated Wire Rope Drilling Line 6×19S-IWRC Drilling Rig Drawworks Parts Lifting

Product Details:
Place of Origin: China
Brand Name: Bomco
Certification: API 9A
Model Number: 6×19S-IWRC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 4500-5000 USD PER Roll
Packaging Details: Standard Package
Delivery Time: 30~50 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 Rolls Per Month

Oilfield 25.4mm 6 x 19S IWRC IPS sZ Lubricated Wire Rope Drilling Line 6×19S-IWRC Drilling Rig Drawworks Parts Lifting

Description
Product Name: 25.4mm 6 X 19S IWRC Wireline Warranty: 13 Months
Type: Wire Rope Material: Steel
Structure: 19 Wire Strand Protection Application: Oil And Gas Well Drilling
Condition: New Surface: Galvanized/ungalvanized
High Light:

Drawworks Parts Lifting

,

Oilfield Wire Rope Drilling Line

,

Drilling Rig Drawworks Parts

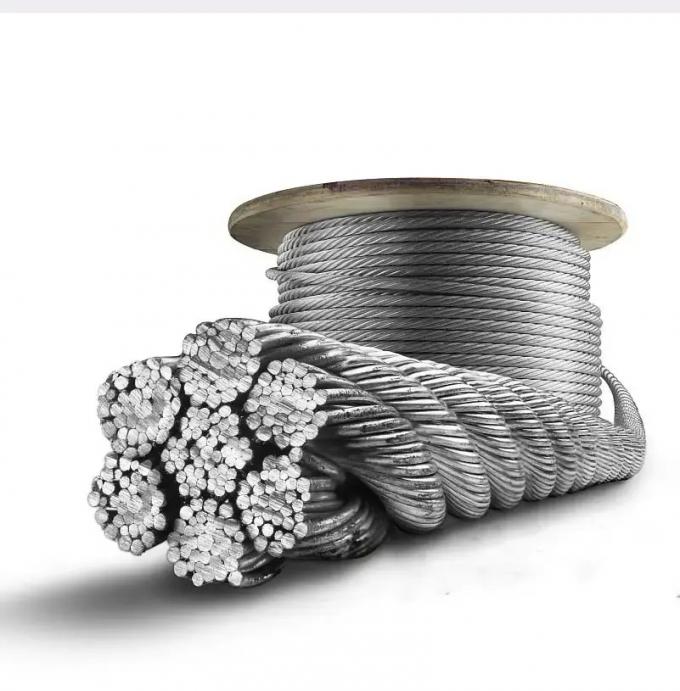

Oilfield 25.4mm 6 x 19S IWRC IPS sZ Lubricated Wire Rope Drilling Line 6×19S-IWRC Drilling Rig Drawworks Parts Lifting



Drilling line for oilfield usage is manufactured according to API 9A specification.

We can providfe you steel wire rope drilling line with high strength, long time service life, galvanized or non-galvanized, etc.



Advantage:

♦ Excellent anti-abrasion performance and extrusion-resistance.

♦ Excellent Stability.

♦ Breaking force higher than fiber core steel wire rope.

♦ Customizing by customer’s requirements Occasions:

♦ Drilling line.

♦ Wire rope for workover.

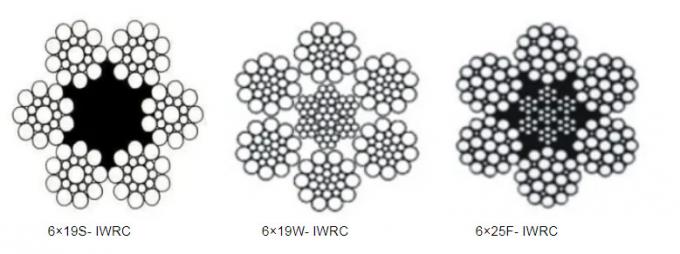

Oilfield 25.4mm 6 x 19S IWRC IPS sZ Lubricated Wire Rope Drilling Line 6×19S-IWRC Drilling Rig Drawworks Parts Lifting 0

Product Parameters

Nominal diameter Reference weight Nominal Tensile Strength/MPa
    1770 1960 2160 IPS EIP EEIP
/mm kg/100m Minimum breaking force/kN
12.7 64.5 102 113 124 102 118 130
13 67.6 106 118 130 107 124 136.2
14.3 81.8 129 143 157 129 149 165
16 102 161 179 197 159 185 204
18 130 204 226 249 202 233 257
19 144 227 252 278 226 259 285
20 160 252 279 308 250 287 316
22 194 305 338 372 302 348 383
24 230 363 402 443 358 412 453
25.4 258 407 450 496 399 460 506
26 270 426 472 520 418 481 529
28 314 494 547 603 483 555 610
28.6 327 515 571 629 503 578 636
31.8 404 637 706 778 617 711 782
32 410 645 715 787 625 720 792
34.9 487 767 850 937 743 854 943
35 490 772 855 942 747 859 948
36 518 817 904 997 789 906 999
38 578 910 1010 1110 876 1010 1110
38.1 581 915 1010 1120 880 1010 1110
40 640 1010 1120 1230 962 1100 1220
41.3 682 1080 1190 1310 1020 1170 1300
44 774 1220 1350 1490 1150 1330 1470
44.5 792 1250 1380 1520 1180 1360 1500
45 810 1280 1410 1560 1210 1390 1530
48 922 1450 1610 1770 1370 1580 1740



NO. ITEM DETAIL
1 Product Name Drill line steel wire rope
2 Steel Grade Carbon Steel
3 Standard AISI ASTM BS DIN GB JIS API ISO
4 Core IWRC, IWS, FC, PPC
5 Surface Galvanized or Non-galvanized
6 Place of Origin China(Mainland)
7 Type W/ S
8 Tensile strength IPS/ EIPS/ EEIPS



Oilfield 25.4mm 6 x 19S IWRC IPS sZ Lubricated Wire Rope Drilling Line 6×19S-IWRC Drilling Rig Drawworks Parts Lifting 1


Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
