Product Details:
|
| Product Name: | Drawwork Parts Chain Roller | ISO Chain No.: | 32S-2 |
|---|---|---|---|
| China No.: | 160GA-2 | Standard: | GB3638 |
| Structure: | Roller Type | Material: | Alloy Steel |
| Usage: | Oil Field Roller Chain | Function: | Transmission Chain |
| High Light: | GB3638 chain roller,Alloy Steel transmission chains,Drawwork Parts chain roller Topland |
||

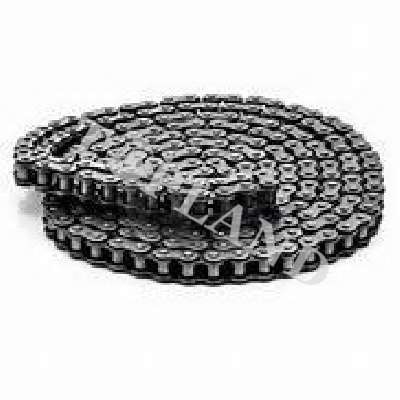

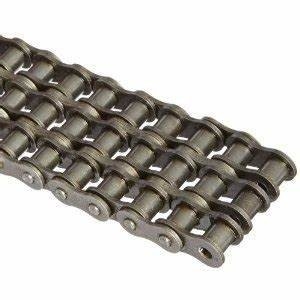

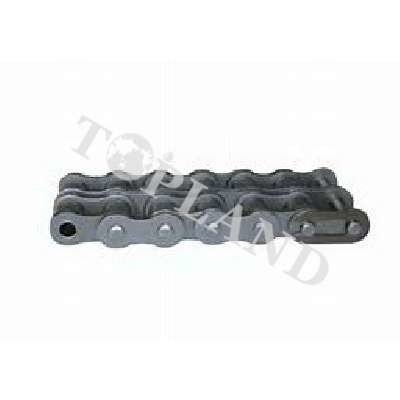

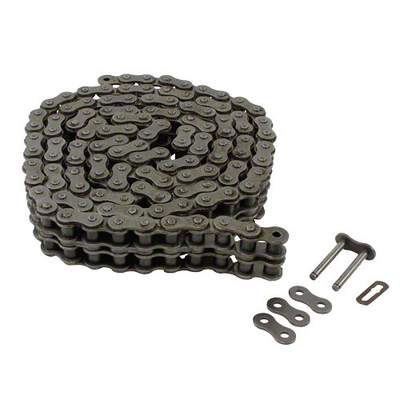

Chain Roller GB3638 32s - 2 X 82 82 Pitch For Jc50 Drawwork Parts
Oilfield Drawwork Parts Transmission chains
The transmission chains (oil chain, oil field roller chain) is designed for oil drilling and oil production of mud pump drive, engine group, power drive, camshaft, rotary vice axis, rotary table and other design and production. Oil chains can also be used for natural gas extraction, mining equipment, logging machines and ball mills. Safety and reliability are critical to the oil chain.
Featurers of Drawwork Parts Roller Chains:
1) Type: oil field roller chain
2) Materials: alloy steel
3) Chain No.: 160GA-2
4) Structure: roller chain
5) Function: transmission chain
6) Supply Ability: 25000 Meter/Meters per month
7) Tensile Strength:standard

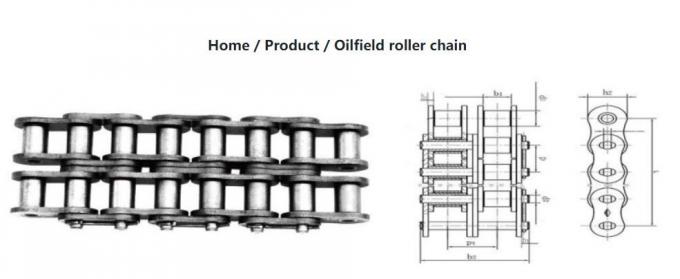

| GB Chain No | Pitch | Roller | Inner width of | Pin | Plate | Plate | Array | Pin length | Tensile | Weight/m |
| ISO Chain No | Diameter | inner link | diameter | thickeness | height | Pitch | load | |||
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | |
| 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 20S-1 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | - | 43.6 | 86.74 | 4.25 |
| 24S-1 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | - | 54.1 | 125.1 | 6.81 |
| 28S-1 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.4 | 170.27 | 7.91 |
| 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 32S-1 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69 | 222.4 | 10.47 |
| 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 20S-2 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 79.3 | 173.48 | 8.31 |
| 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 24S-2 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 99.6 | 250.2 | 12.12 |
| 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 28S-2 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.2 | 340.54 | 15.6 |
| 20S-3 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 115.1 | 260.22 | 12.36 |
| 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 32S-2 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.5 | 444.8 | 20.65 |
| 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 24S-3 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 145.5 | 375.3 | 18.06 |
| 20S-4 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 150.8 | 346.96 | 16.41 |
| 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 28S-3 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.1 | 510.81 | 23.25 |
| 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 20S-5 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 186 | 433.7 | 20.47 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Oilfield Drawwork Parts Transmission chains
