Product Details:
|
| Product Name: | Rubber Hydraulic Hose | Working Temperature: | -40~+120 |
|---|---|---|---|
| Material: | Steel Wire | Surface: | Cloth Wrapped Surface |
| Type: | Oil Resistant Industrial Hydraulic Hose | Pressure: | 1-110Mpa |
| Processing Service: | Moulding, Cutting | Application: | Carry Hydraulic Fluids&gas |
| Condition: | New | Warranty: | 12 Months |
| High Light: | Surface Resistant Rubber Hydraulic Hose,high pressure hydraulic rubber hose,Rubber Hydraulic Hose Oilfield |
||

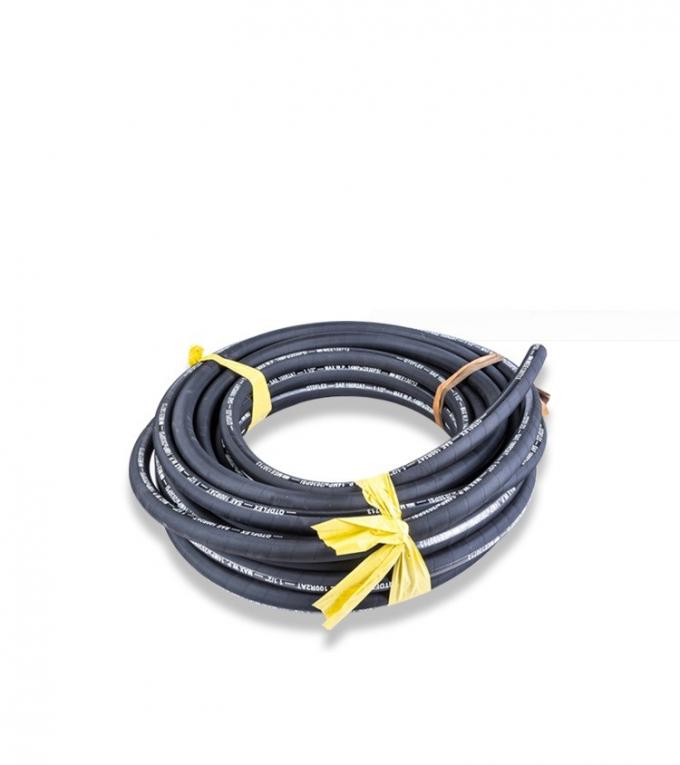

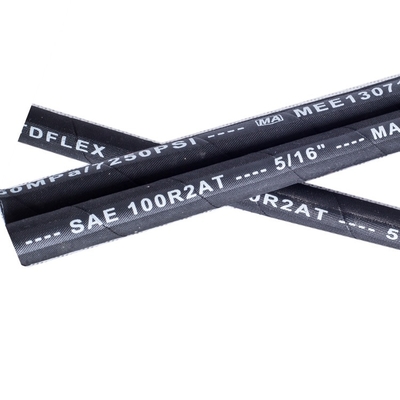

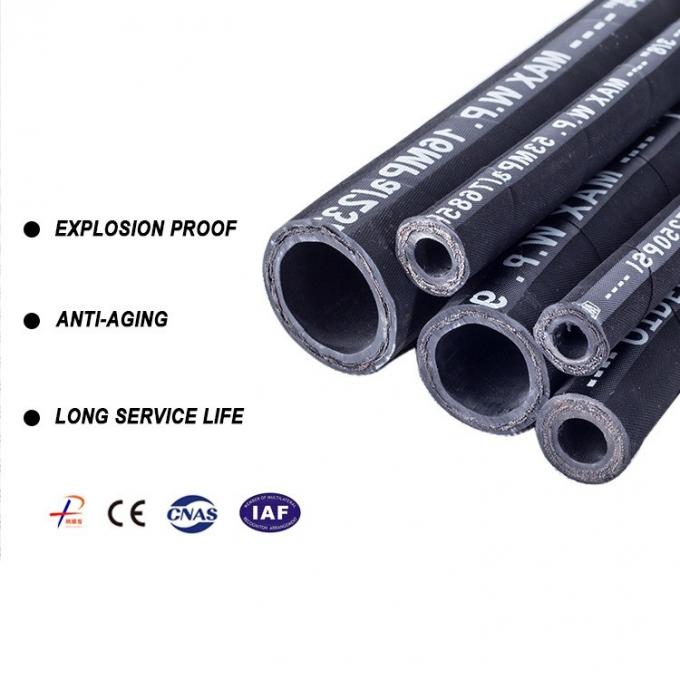

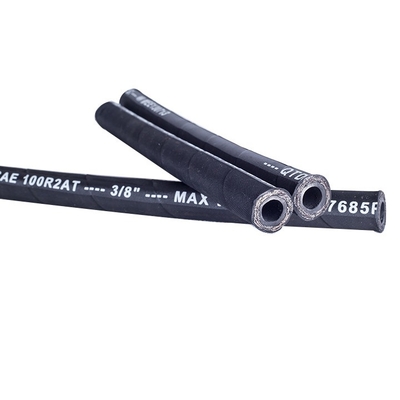

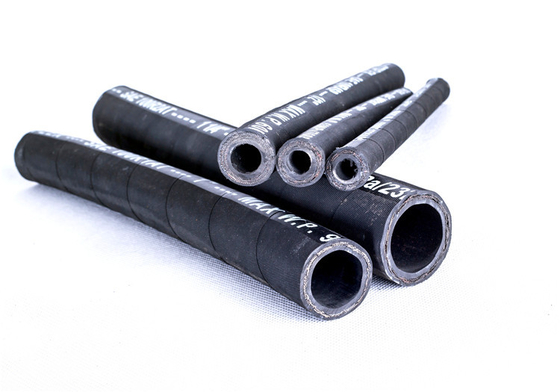

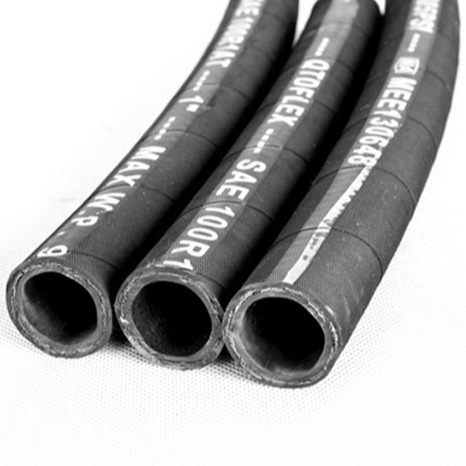

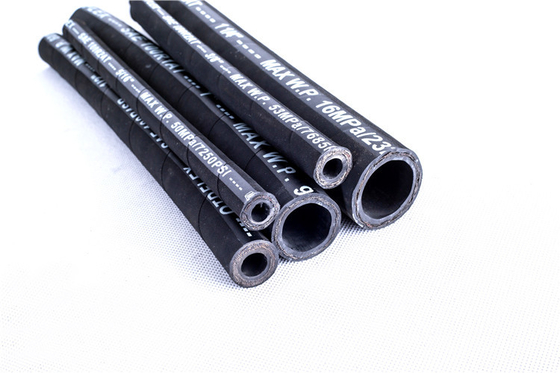

Oilfield Rotary Drilling Hose Multi-Purpose Cloth Surface Resistant Rubber Hydraulic Hose
Rotary Drilling hydraulic rubber hose Features
1. High pressure resistance
2. High temperature resistance
3. Soft and portable
4. Deformation resistant
5. Beautiful appearance
6. Striated, smooth or cloth surface
7. Good Insulation and abrasion resistance
8. Steel wire braided or spiraled layers reinforcement
9. Durable with high quality
10. Free sample
11. Fast delivery
12. Temperature Range:-40°C To +100°C (-40°F To +212°F)
Notice about the hydraulic rubber hose (PSF)
1. The hose should not be used to exceed the designed pressure.
2. The temperature of the medium being conveyed through the hose should be in the normal case, or reduce the use life of the hose.
3. The hose should not be used less than the minimum bend radius of the hose, in order to avoid bending near the pipe joints .
4. The hose should be handled carefully, and should not drag on the sharp and rough surface, should not be bent and squashed.
5. Pls keep the hose clean and prevent external objects into the hose, in case of hindering the transmission fluid and damaging the equipment.
6. If the hose’s weight cause excessive deformation,the hose should be supported.
Hydraulic Hose Technical Parameter of Rotary Drilling Hose
|
SAE100R1AT/DIN(EN853)1ST,1SN/EN857 1SC
|
||||
|
Specification
inch/mm |
OD
|
Working pressure
Mpa / PSI |
Bar
|
|
|
1/4"
|
6
|
13.7
|
32 / 4640
|
320
|
|
5/16"
|
8
|
15.7
|
28 / 4060
|
280
|
|
3/8"
|
10
|
17.7
|
26 / 3770 |
260
|
|
1/2"
|
13
|
20.7
|
23 / 3335
|
230
|
|
5/8"
|
16
|
24
|
18 / 2610
|
280
|
|
3/4"
|
19
|
27.5
|
16 / 2320
|
160
|
|
1"
|
25
|
35
|
12 / 1740
|
120
|
|
1-1/4"
|
32
|
42
|
9 / 1305
|
90
|
|
1-1/2"
|
38
|
48.5
|
7 / 1015
|
70
|
|
2"
|
51
|
61.5
|
4 / 580
|
40
|
|
SAE100R2AT/DIN(EN853)2SN,2ST/EN857 2SC
|
||||
|
Specification
inch/mm |
OD
|
Working pressure
Mpa / PSI |
Bar
|
|
|
1/4"
|
6
|
15.7
|
60 / 8700
|
600
|
|
5/16"
|
8
|
17.7
|
55 / 7975
|
550
|
|
3/8"
|
10
|
19.7
|
53 / 7685
|
530
|
|
1/2"
|
13
|
22.5
|
40 / 5800
|
400
|
|
5/8"
|
16
|
26
|
25 / 3625
|
250
|
|
3/4"
|
19
|
29
|
21.5 / 3117
|
215
|
|
1"
|
25
|
37
|
18 / 2610
|
180
|
|
1-1/4"
|
32
|
43.5
|
16 / 2320
|
160
|
|
1-1/2"
|
38
|
50.5
|
14 / 2030
|
140
|
|
2"
|
51
|
63.6
|
8 / 1160
|
80
|
|
EN856 4SC,4SH/4SP,GB/T
|
||||
|
Specification
inch/mm |
OD
|
Working pressure
Mpa / PSI |
Bar
|
|
|
1/4"
|
6
|
19
|
100/14500
|
1000
|
|
5/16"
|
8
|
20.5
|
80/11600
|
800
|
|
3/8"
|
10
|
24
|
70 / 10150
|
700
|
|
1/2"
|
13
|
27
|
60 / 8700
|
600
|
|
5/8"
|
16
|
30
|
55 / 7975
|
550
|
|
3/4"
|
19
|
33
|
42 / 6090
|
420
|
|
1"
|
25
|
39
|
35 / 5075
|
350
|
|
1-1/4"
|
32
|
49
|
32.5 / 4713
|
325
|
|
1-1/2"
|
38
|
56
|
29 / 4205
|
290
|
|
2"
|
51
|
69
|
25 / 3625
|
250
|
