Product Details:
|
| Product Name: | BOP Control Hose | Working Temperature: | -40°F To +212°F (-40°C To +100°C) |
|---|---|---|---|
| Size: | 1/4-- 2 INCH | Min. Bend Radius: | 4-25 INCH |
| Material: | RUBBER; NBR | Use: | Flexible Connection |
| Fitting: | Integral Type Union And Flange | Outer Protective: | Stainless Steel Armoured |
| High Light: | High Temperature Resistant BOP Control Hose,Flexible Connection Drilling Hose,API 7K BOP Control Hose |
||

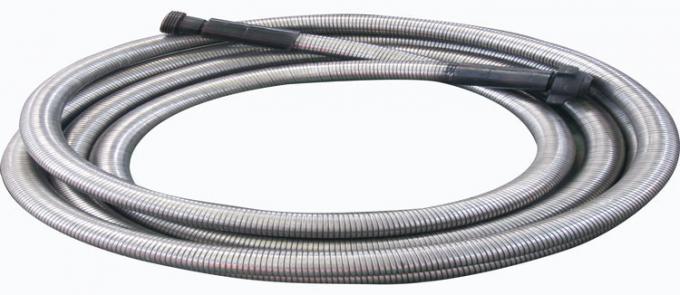

API 7K High Temperature Resistant BOP Control Hose Rotary Drilling Hose
BOP Contro Hose description of Rotary Drilling Hose
Well Control Professional Tube BOP Control Line ——GNG High-pressure Fire-resistant and Heat-insulation Hose Assembly
1. Scope of application:

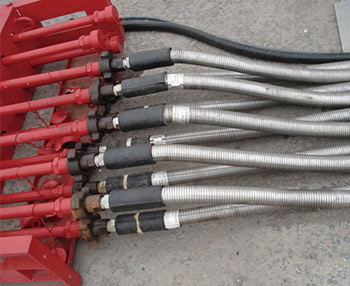

The hose for well control-GNG high-pressure, fire-resistant and heat-insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high-temperature and flammable places in the metallurgic industry.

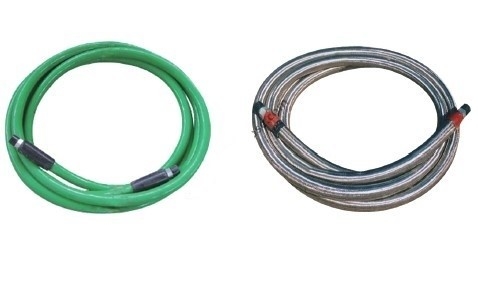

2. Product classification: high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
3. Applicable Standard: API Spec 16D-0109 SY/T5053.2-2002
BOP Contro Hose technical parameters of Rotary Drilling Hose
| Nominal inner dia.(mm) |
Outer dia.of hose assembly (mm) |
Operating Pressure (MPa) |
Min.burst Pressure (MPa) |
Min. bending radius (mm) |
Thread | Operating time (min)with fire-resisting at 750℃ | |
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 | NPT LP |
5 | 25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
| Hose ID | Hose O.D. | Working Pressure | Min. Bend Radius | Weight | Max. Hose Length | ||||||
| (In.) | (mm) | (In.) | (mm) | (psi) | (MPa) | (In.) | (mm) | kg/m | lb/ft | ft | m |
| 1/4 | 6 | 0.77 | 20 | 5000 | 35 | 4 | 102 | 0.66 | 0.37 | 330 | 100 |
| 3/8 | 10 | 0.93 | 24 | 5000 | 35 | 5 | 127 | 0.77 | 0.52 | 330 | 100 |
| 1/2 | 13 | 1.05 | 27 | 5000 | 35 | 7 | 178 | 0.98 | 0.63 | 330 | 100 |
| 3/4 | 19 | 1.38 | 35 | 5000 | 35 | 9.5 | 241 | 1.64 | 1.05 | 200 | 60 |
| 1 | 25 | 1.67 | 42 | 5000 | 35 | 12 | 305 | 2.62 | 1.77 | 200 | 60 |
| 1 1/4 | 32 | 2.11 | 54 | 5000 | 35 | 16.5 | 419 | 3.94 | 2.67 | 200 | 60 |
| 1 1/2 | 38 | 2.41 | 61 | 5000 | 35 | 20 | 508 | 4.59 | 3 | 200 | 60 |
| 2 | 51 | 2.96 | 75 | 5000 | 35 | 25 | 635 | 8.53 | 5.73 | 200 |
60 |
