Product Details:
|
Product Name: | ATD/TPQ Push Plate Clutch | Processing Type: | Forging |
---|---|---|---|
Machine Type: | Rotary Drilling Rig | Use: | Well Drilling |
Color: | As Required | Application: | Oil Field |
Usage: | Drilling Rig Spare Parts | Packing: | Standared Package |
High Light: | TPQ Push disc clutch,Oilfield Push Plate Clutch,Topland ATD disc clutch |

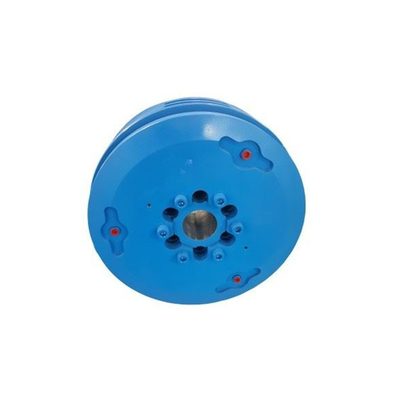

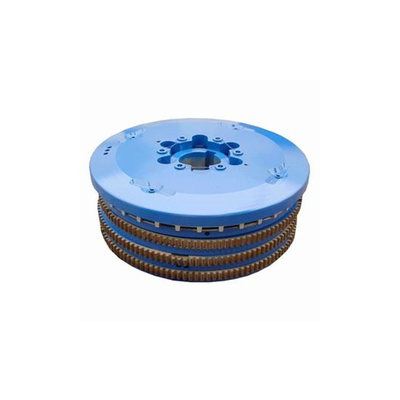

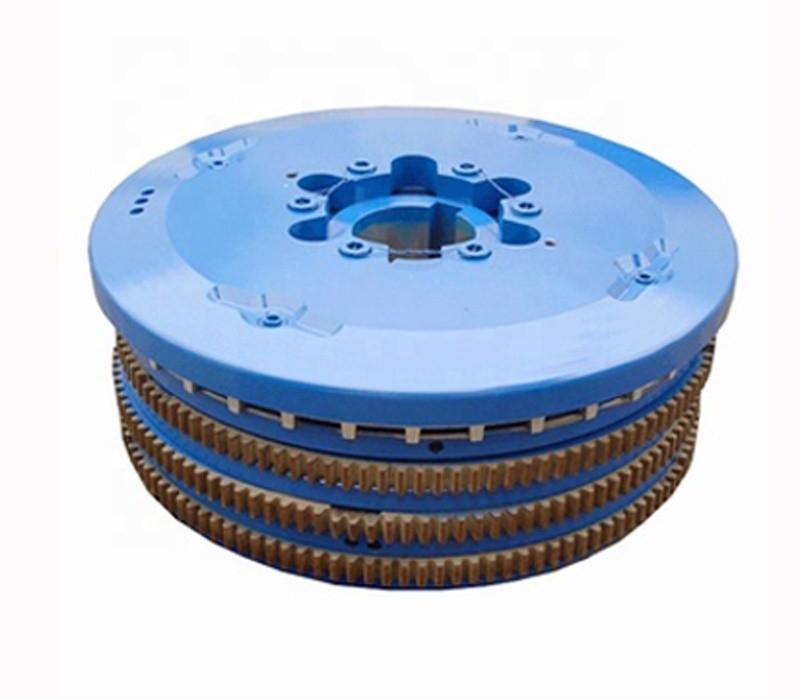

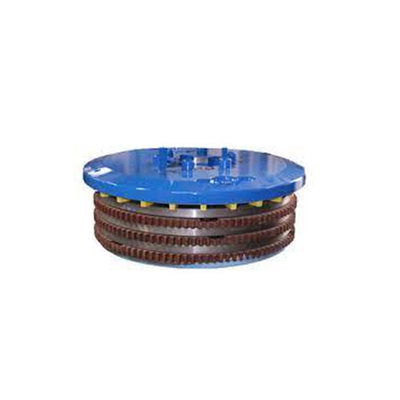

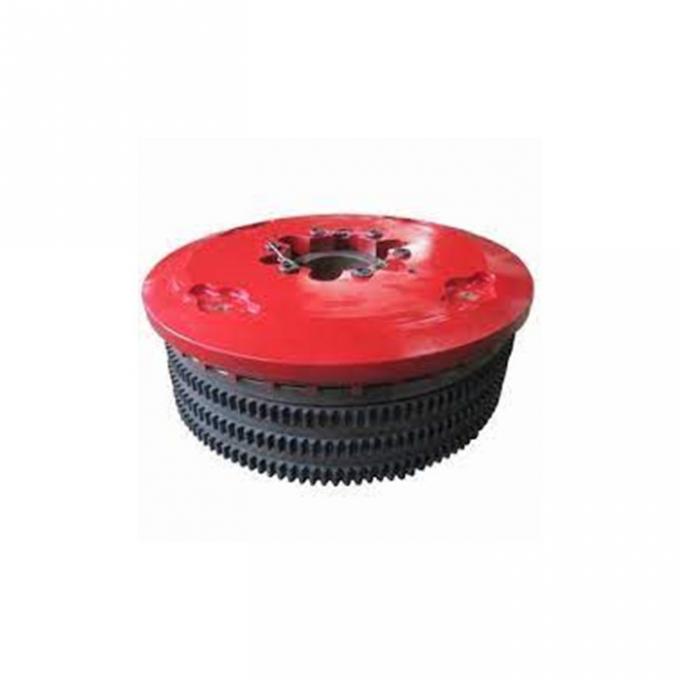

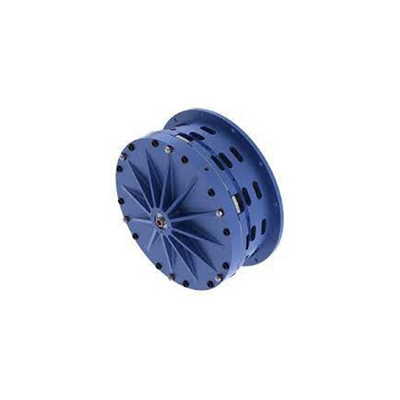

Oilfield ATD / TPQ Push Disc Clutch Drilling Rig Spare Parts Push Plate Clutch

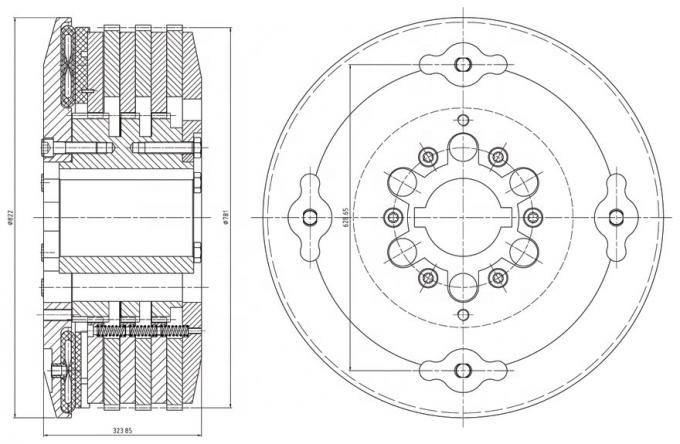

Push Plate Clutch description:
ATD/TPQ push disc clutches have the characteristic of stable performance, reliable operation, which used for axial force transmissions. Balloons have the advantage of simple design, small air capacity, speed reliability, and not under the influence of centrifugal force, started smoothly, used for great inertia conditions etc. The clutch has large friction area, 1, 2, 3 or 4 gear discs design in the middle of many varieties to better meet the needs of various torque which are widely used in petroleum machinery, mining machinery, marine machinery, metallurgical machinery equipment.
ATD series push plate clutch (ATD) is suitable for all heavy duty cases where clutch connection is required. It can be used as a coupling to connect two concentric shafts and achieve different side transmission, but also it can be mounted on the same shaft to achieve the same side power transmission. What’s more, the high-speed clutch can be directly connected to the engine.
The friction area of the air tube drive clutch is large, and it can start smoothly. Multi friction pair design can meet the needs of all kinds of torque better. Annular air tube or split air tube can be applied to the clutch, and the maintenance is convenient, and the air pressure dry operation can not bring pollution to the surrounding environment.
Push Plate Clutch Application
The ATD series push plate clutch is widely used in all kinds of industrial equipment, for example construction machinery, oil drilling rig, workover rig, drawworks, etc. And its sizes range is from 8 inches to 60 inches, and the dynamic torque range is from 630N.m to 976,200N.m.
In the field of oil and gas equipment, the ATD series push plate clutch is mainly used as drawworks clutch for the workover rig and the rig, and it can also be used as driving part clutch for some gear box, chain box, etc.
Eaton push plate clutch:
ATD118H, ATD218H, ATD318H, ATD124H, ATD224H, ATD324H, ATD230H, ATD330H, ATD236H, ATD336H, ATD436H
RG push plate clutch:
TPQ118H, TPQ218H, TPQ318H, TPQ124H, TPQ224H, TPQ324H, TPQ230H, TPQ330H, TPQ236H, TPQ336H, TPQ436H
Type NO. | 18” | 24” | 30” | 36" | |||||||
ATD 118H |
ATD 218H |
ATD 318H |
ATD 124H |
ATD 224H |
ATD 324H |
ATD 230H |
ATD 330H |
ATD 236H |
ATD 336H |
ATD 436H |
|
Biggest air pressure/ MPa | 1.2 | 1..2 | 1.2 | 1.2 | |||||||
Working air pressure/ MPa | 0.6-0.9 | 0.6-0.9 | 0.6-0.9 | 0.6~0.9 | |||||||
Intermediate plate outer diameter/ mm | 457 | 610 | 762 | 913 | |||||||
Friction plate outer diameter/ mm | 485.78 | 636.73 | 791.21 | 962.66 | |||||||
Friction plate QTY/ ea | 1 | 2 | 3 | 1 | 2 | 3 | 2 | 3 | 2 | 3 | 4 |
