Product Details:
|
| Product Name: | Fitting Thread FIG 1502 Hammer Union | Material: | Cast Steel Or Customerized |
|---|---|---|---|
| Size: | 1-6 Inch | Processing: | Forged |
| Max Pressure: | 15000psi | Standard: | Metric |
| Usage: | Oil Gas Water Industrial | Connection: | Male / Female |
| High Light: | FIG1502 Weco Union Male And Female,Stainless Weco Union Male And Female,Stainless weco 1502 female |
||

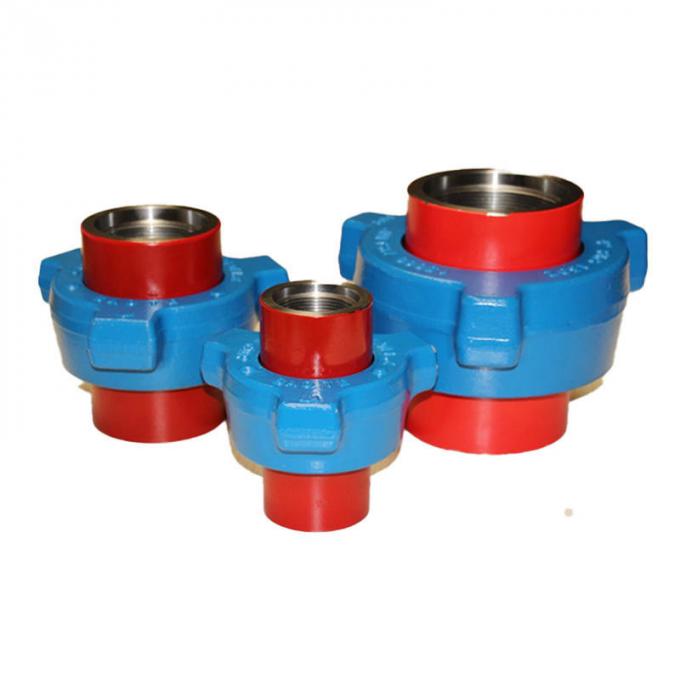

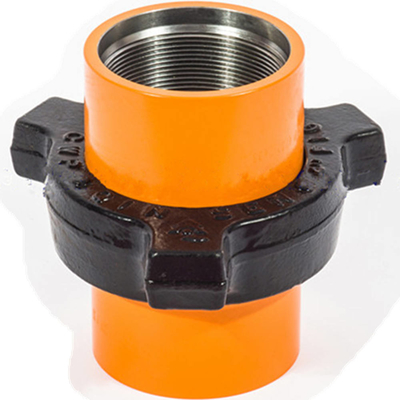

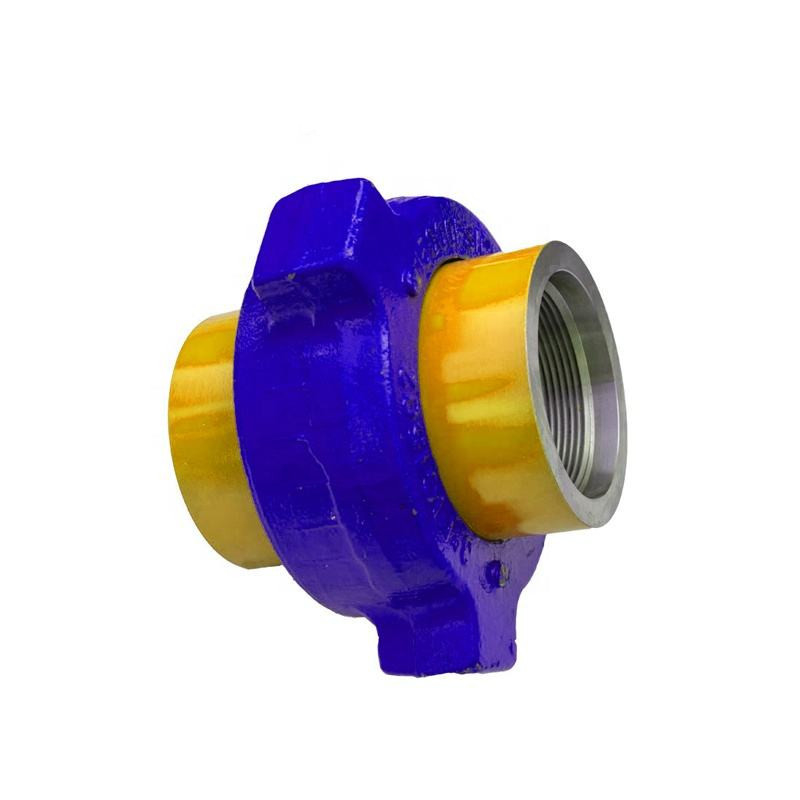

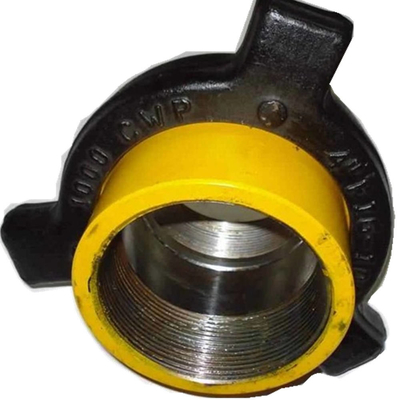

FIG1502, WECO Male/Female Hammer Union Stainless Steel for Rotary Drilling Hose

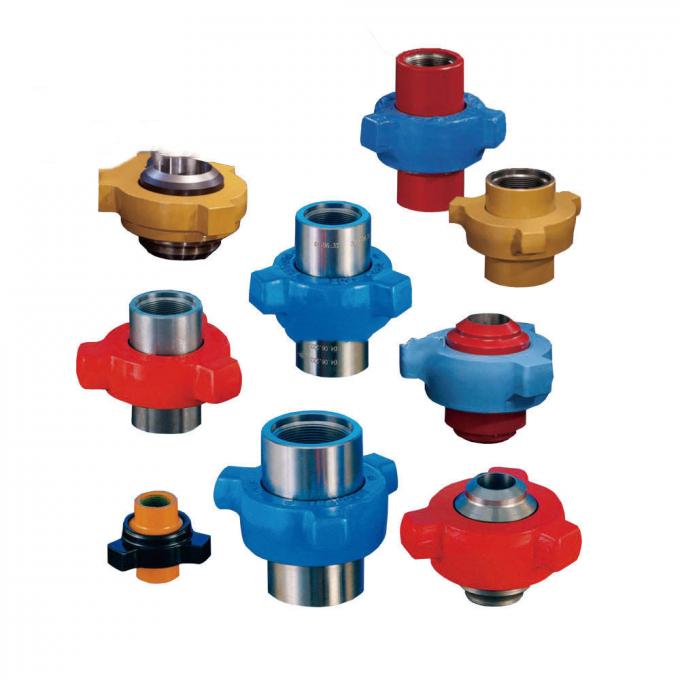

Topland can provide various hammer unions, including thread connection type, welding type and H2S service unions.
1"~4" and CWP of 1000Psi~20000Psi(7MPa~140MPa) unions are available.
For easy identification, unions with different pressure ratings will be painted in different colours, and there are evident marks indicating size, connecting mode and pressure ratings. The model of conventional union (thread connection): FIG100,FIG200,FIG206,FIG400,FIG402,FIG602,FIG1002,FIG1502;rated:1000psi(7MPa)~15000psi(105MPa).
The model of Welding Union: FIG20,FIG60, FIG1002,FIG1502,FIG2002;rated: 2000psi(14MPa)~20000psi(140MPa).
The model of H2S welding union: FIG602,FIG1002,FIG1502,FIG2202,Tr120×6,Tr150×6,Tr180×8;rated: 5000psi(35MPa)~15000psi(105MPa).
Reliable Sealing performance
Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect
connectors from erosion. Different pressures and applications have different sealing method.
Fast Installation
Wherever they are, wing nuts and rigid ACME will ensure quick installation or dismantling without special tools.
Highly Interchangeable
All unions are made in English system, and can be interchanged with products in international market. Seal rings are fully
interchangeable with SPM or FMC equivalent products; Marks of size and pressure in wing nuts are formed in die-forging model, same as international products.
Advanced Machining and Inspection Method
Spherical adapters machined by precision NC machine tools and LP thread machined by special cutting tools can ensure high sealing performance; Wing nuts machined by NC machines have high strength and load-bearing capacity; Welding materials and welding grooves conform to API 16C; Unions for sour gas environment are strictly manufactured to NACE-MR0175 and API RP-14E.
| Model | Size | Model | Size |
| Fig 100 | 2", 3", 4", 6", 8" | Fig 600 | 1", 2" |
| Fig 200 | 1" , 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 6" | Fig 602 | 1", 2", 3", 4" |
| Fig 206 | 1", 1 1/2", 2", 2 1/2", 3", 4", 6", 8" | Fig 607 | 2" |
| Fig 207 | 3", 4", 6" | Fig 1002 | 1", 2", 3", 4", 5", 6" |
| Fig 300 | 1", 2" | Fig 1003 | 3", 4", 5" |
| Fig 400 | 2", 3", 4" | Fig 1502 | 1 1/2", 2", 3" |
| Fig 402 | 2" | Fig 2002 | 2" |
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
