Product Details:
|
| Product Name: | Flexible Kill Choke Line | Reinforcement: | Multiple Layers Of Textile Fabric And Steel Cable |
|---|---|---|---|
| Bursting Pressure: | 155 Mpa | Working Pressure: | 70 Mpa |
| Size: | 2 1/2"-3 1/2" | Min. Bend Radius: | 48"-54" |
| Working Temperature: | -4℉ To +200℉ (-20℃ To +93℃) | Weight: | 20 Kg |
| High Light: | API 16C Rockdrill Hose,Kill Choke Rockdrill Hose,API 16C Kill Choke Hose Line |
||

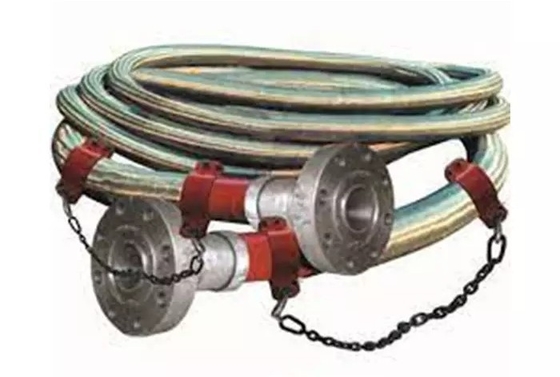

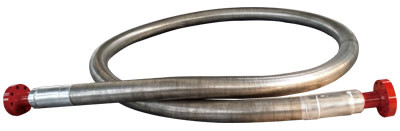

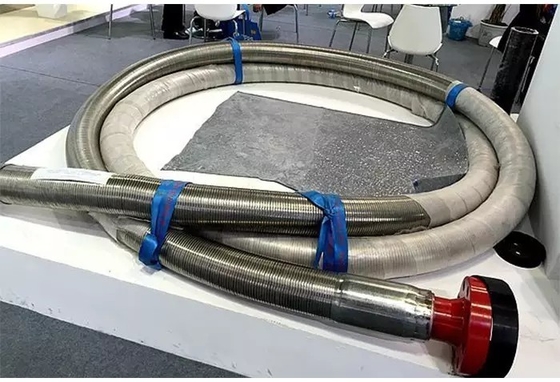

API 16C Rotary Drilling Hose High Pressure Flexible Kill Choke Hose Line
Flexible Kill Choke Hose Line description of Rotary Drilling Hose
* Applicable to connection at locations when drill platform,semi submersible drilling vessel or drill vessel moves relatively and the installation dimensions of the drill rig subsequently change,and to delivery od oil,gas,mud and other high pressure meia(including mainly relief line,blowout control line and choke kill line.)
* Applicable standard:API Spec 16C SY/T5323-2004
* The product features resistance to high pressure,thermal insulation,anti-flaming and fire resistance as well as inner wall with high abrasion resistance.
Recommended For:

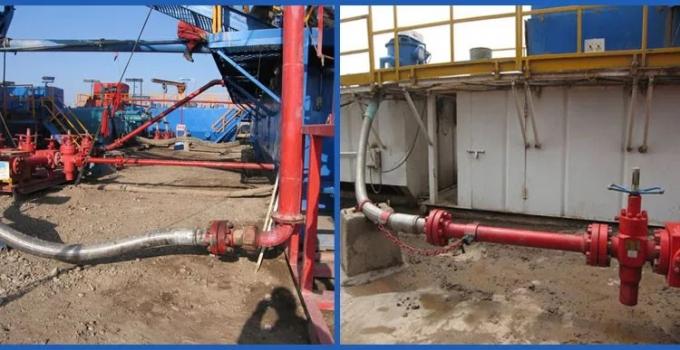

Flexible hose between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.
Tube:
Modified Nitrile. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.
Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Fire resistant rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:

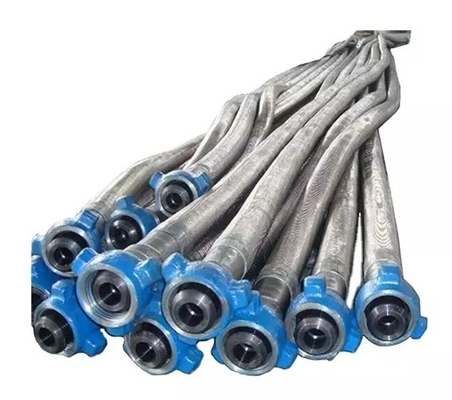

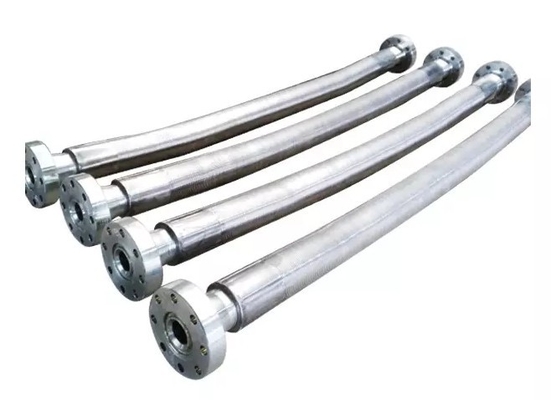

Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps and hose lift eyes are available upon request.
Test:
Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
| Inter dia.in | Rated operating | Test pressure in | Min. burst pressure in | Min. bending radius |
| mm(in) | pressure in MPa(psi) | MPa(psi) | MPa(psi) | (mm) |
| 50.8(2) | 35.0(5 000) | 52.5(7500) | 78.75(11250) | 900 |
| 64(2 1/2) | 1000 | |||
| 76.2(3) | 1000 | |||
| 89(3 1/2) | 1100 | |||
| 101.6(4) | 1200 | |||
| 50.8(2) | 70.0(10 000) | 105.0(15 000) | 157.5(22 500) | 1000 |
| 63.5(2 1/2) | 1100 | |||
| 76.2(3) | 1150 | |||
| 89(31/2) | 1200 | |||
| 101.6(4) | 1250 | |||
| 50.8(2) | 105.0(15000) | 157.5(22500) | 236.25(33750) | 1000 |
| 63.5(2 1/2) | 1150 | |||
| 76.2(3) | 1200 | |||
| 50.8(2) | 138.0(20000) | 207.0(30000) | 310.0(45000) | 900 |
| 64(2 1/2) | 1100 | |||
| 76.2(3) | 1200 |
