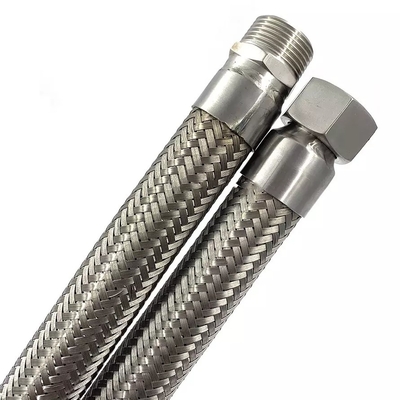

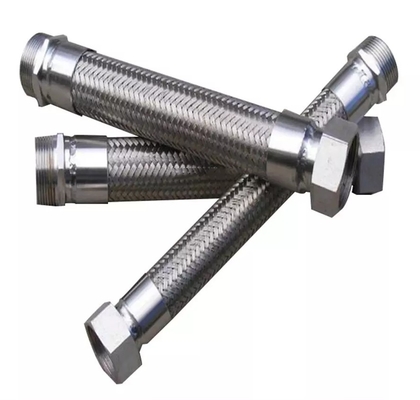

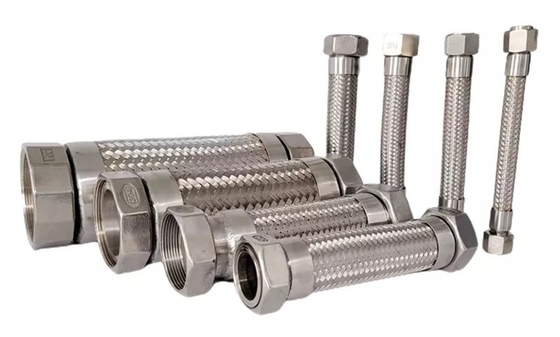

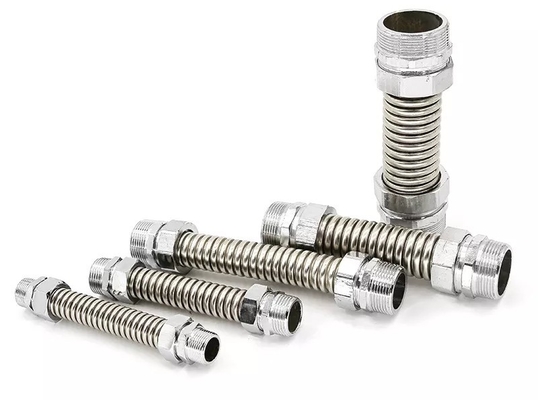

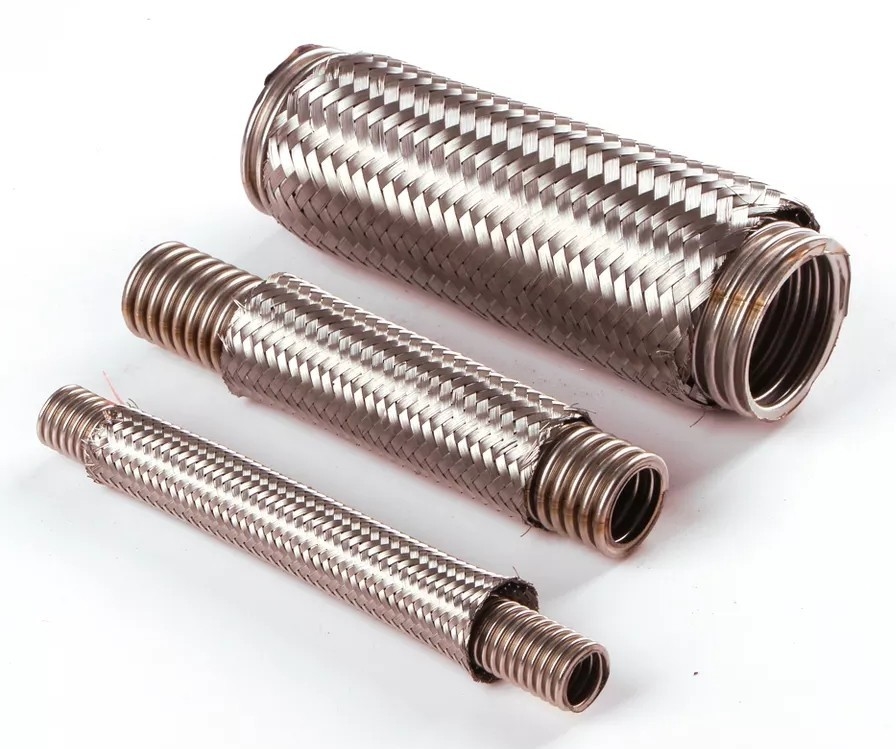

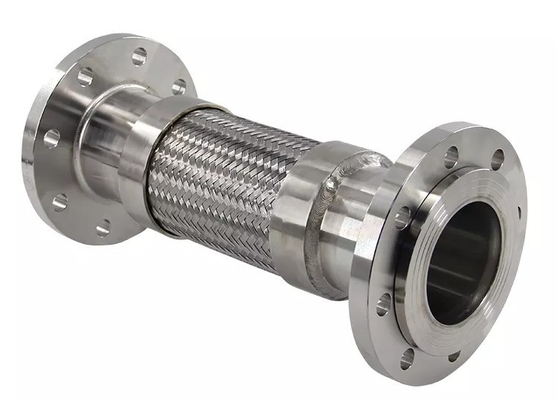

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose

I'm Online Chat Now

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose
Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose

Large Image :  Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose

Product Details:
Place of Origin: China
Brand Name: JingBo
Certification: ISO
Model Number: Flexible Metal Hose
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 30-500 USD PER Meter
Packaging Details: Woven Bag + Iron Carton
Delivery Time: 20 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60,000 M Per Month

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose

Description
Product Name: Flexible Metal Hose Shape: Round Pipe Tube
Material: Stainless Steel Working Pressure: High / Medium / Low Pressure
Applicable Temperature: -10℃-+300℃ Nominal Diameter: DN80-DN400
Condition: New Application: Water, Hot Water, Steam, Oil, Air, Etc
High Light:

Braided Pipe Rotary Drilling Hose

,

Stainless Steel Rotary Drilling Hose

,

Stainless Braided Flexible Metal Hose

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose



Flexible Metal Hose Line description of Rotary Drilling Hose

Stainless steel pressure flexible metal tubing is a stainless steel corrugated tube with one or several outer coats of steel wires or steel belt net sleeve and connectors or flanges at the ends for connection . It is flexible element for delivery of various fluid media,featuring resistance to corrosion and low and high temperatures( -196℃~+420℃),light weight,compactness and good flexibility.It is widely used in aviation,spaceflight,petrole um,chemical industry,metallurgy,electricity,paper making, timber, textile, building,medicine,food,tobacco,traffic and other sectors.



Classification Nominal ID
(mm)
Min.ID (mm) Max.OD
(mm)
Working Pressure(PN) Test Pressure Burst Pressure Min.bend radius
Mpa PSI (MPa) (Pb)(MPa) Static Dynamic
    (Rj)(mm) (Rj)(mm)
high pressure 4 2.5 8.5 35 5071 1.5PN 3PN ≥10DN ≥2Rj
6 4.5 12 23 3332
8 6.5 14
10 8.5 16
12 10 20
14 12 22 21 3043
18 16 26 17 2463
20 18 28 15 2175
25 22 34 10 1449
32 30 42 7 1014
medium pressure 4 2.5 8.5 10 1449 4PN
6 4.5 12.5
8 6.5 14.5
10 8.5 16.4
12 12 20 8
14 14 22
18 18 26
20 20 28 6.4
25 24 34
32 32 42 4
40 40 52
low pressure 4 4 8.5 2.5
6 6 12
8 8 14
10 10 16
12 12   1.6
14 14
18 18
20 20
25 24 34 1
32 32 42
40 40 52 2.5
50 50 64
75 75 92 1.6
100 102 122
125 125 161 1
150 150 193
  200 252
200 250 302 0.8   Note:PN,PS,Pb are all the number at 20℃
250

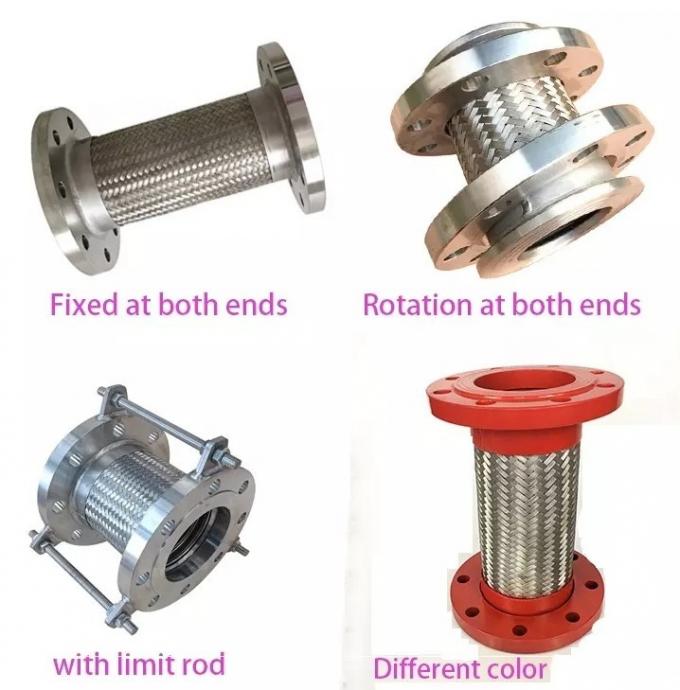

Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose 0Stainless Steel Flexible Braided Pipe Rotary Drilling Hose Flexible Metal Hose 1



FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.



4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service



5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.



6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
