Product Details:
|
| Product Name: | Big Diameter Dredging Rubber Hose | Reinforcement: | High Tensile Textile With Helix Steel Wire |
|---|---|---|---|
| Temperature: | -20°C To 30°C | Cover: | NR,SBR Blend Rubber |
| Bending Radius: | 300~600mm | O.D.: | 65~172mm |
| Color: | Black | Working Pressure: | 12 Bar |
| High Light: | Oil Pipeline Rotary Drilling Hose,Dredging Rotary Drilling Hose,Big Diameter Dredging Rubber Hose |
||

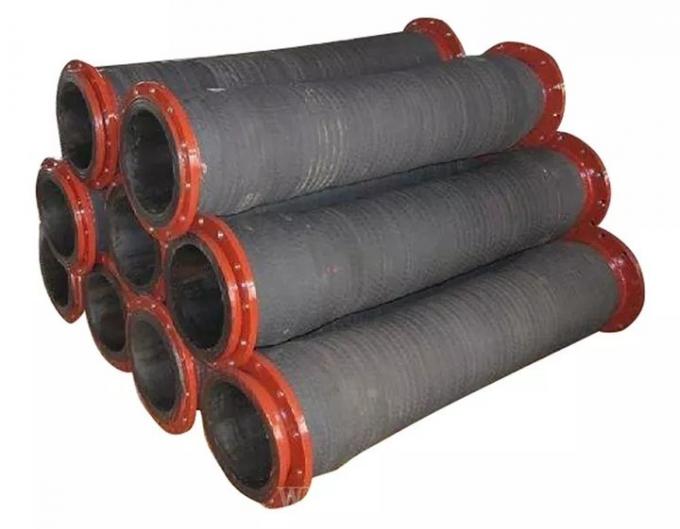

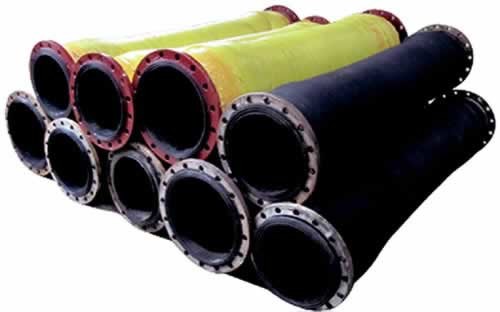

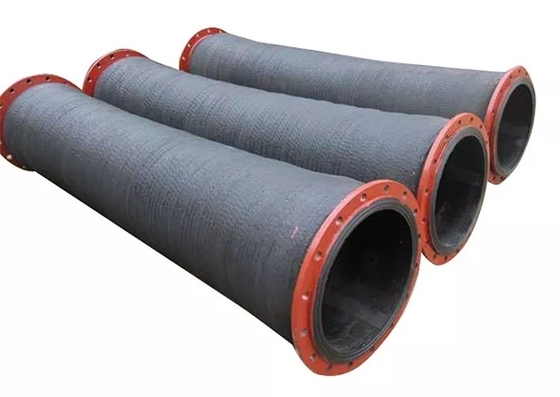

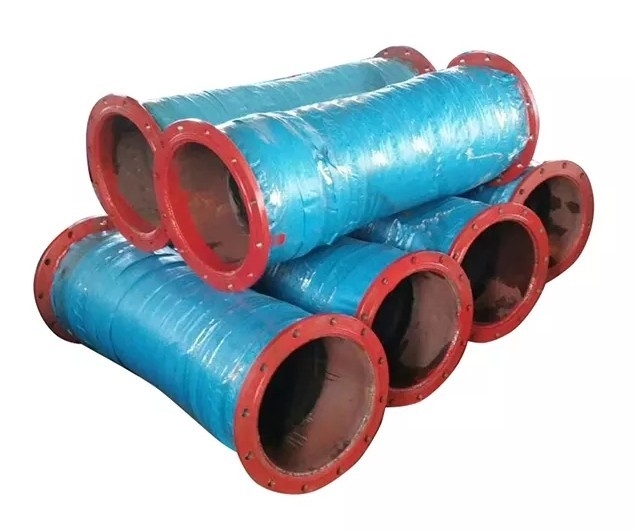

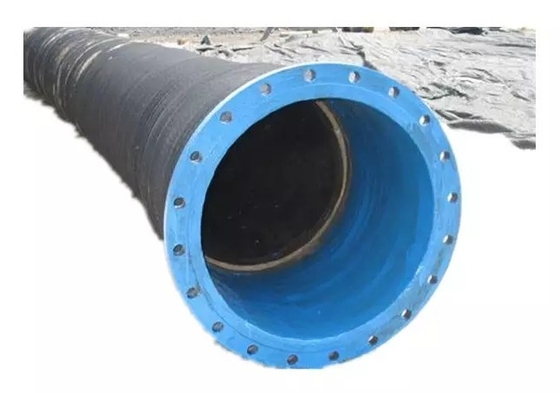

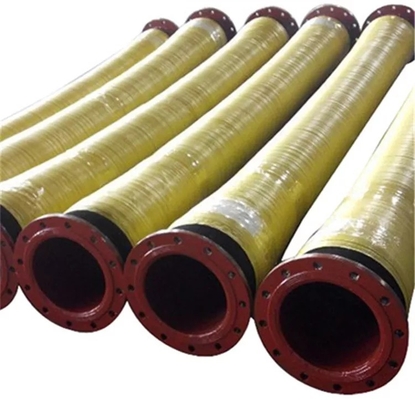

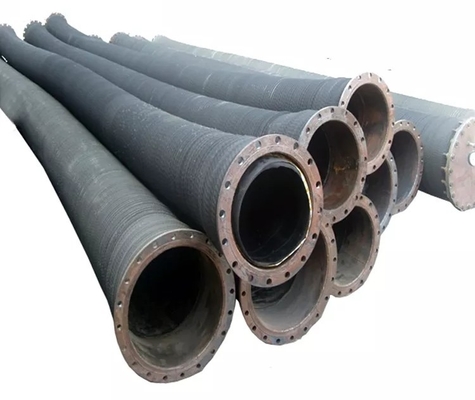

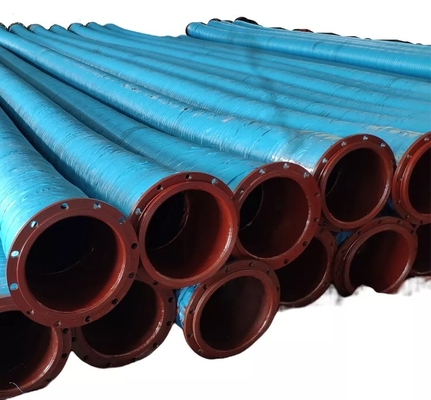

Oil Pipeline Rotary Drilling Hose Big Diameter Dredging Rubber Hose
Big Diameter Dredging Rubber Hose description of Rotary Drilling Hose
The fuctions of this series of products include: water sucking, oil absorption, acid absorption, absorption of sand and drainage. It can be under positive pressure and negative pressure. It can transport ambient temperature neutral liquid, dilute acid base solution and oil. The product quality is up to the HG2184-91 standard.
Features
1. Inner cover with excellent abrasion resistant and high quality. Wearing colored indicator layer
2. Outer cover with excellent ageing resistance and corrosion resistance.
3. Easy installation,Good adhesion,long service life, easy assembly.
4. Flexible floating rubber dredging suction hose are used to convey silts and gravels with dredgers.
5. The thinkness of the pipe wall is from 20mm to 80mm.
6. The suitable working temperature ranges from -20°C to 80°C.
7. The large diameter is from 200mm to 1300mm.
Application
Flexible floating rubber dredging suction hose are used with industrial and mining enterprises, agricultural irrigation and drainage, oil depot, construction engineering and dredger to transport sediment.
Characteristics
Flexible, Anti-wave, Wear-resistance, Weather-resistance, Aging-resistance, seawater resistance
Working pressure:10−25 bar
Temperature range: -30−+80 °C
Type of shipping: Tianjin port or Qingdao port.
Safety factor: 1:3
Technical parameters:
Hose lining: NR, SBR,BR
Reinforcement layer: tire cord with helix wire
Cover rubber layer: SBR and CR blend
| Product name | Big Diameter Dredging Rubber Hose | |||||||||
| Conveying medium | Completing a set with dredge boat to clear silt, seawater etc in dredging works | |||||||||
| Temperature available | From -20℃ To 30℃ | |||||||||
| Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Vacuum Pressure | Length | |||||
| mm | inch | mm | inch | Mpa | bar | Mpa | bar | Kpa | bar | m |
| 152 | 6'' | 182 | 7-1/4'' | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 203 | 8'' | 233 | 9-1/5'' | 1.2 | 12 | 2.4 | 24 | 80 | 0.8 | 20 |
| 254 | 10'' | 284 | 11-1/5'' | 1 | 10 | 2 | 20 | 80 | 0.8 | 20 |
| 304 | 12'' | 340 | 13-2/5'' | 1 | 10 | 2 | 20 | 80 | 0.8 | 10 |
| 350 | 14'' | 390 | 15-2/5'' | 1 | 10 | 2 | 20 | 80 | 0.8 | 6-10 |
| 450 | 18'' | 486 | 19-1/5'' | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 550 | 22'' | 590 | 23-3/5'' | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 600 | 24'' | 640 | 25-3/5'' | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 700 | 28'' | 750 | 29-3/5'' | 0.7 | 7 | 1.5 | 15 | 80 | 0.8 | 6-10 |
| 800 | 32'' | 850 | 33-1/2'' | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6-10 |
| 1200 | 48'' | 1250 | 49-1/5'' | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| 1300 | 52'' | 1350 | 53-1/5'' | 0.5 | 5 | 1 | 10 | 80 | 0.8 | 6 |
| Remark: We can produce any specification and property according to customers' requirements. | ||||||||||
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
