Product Details:
|
| Product Name: | Flexible Metal Hose | Shape: | Round Pipe Tube |
|---|---|---|---|
| Material: | Stainless Steel 304 316 316L | Connection: | Flange |
| Size: | DN8-DN400 | Standard Of Flange: | DIN, ANSI, ISO, Etc |
| Applicable Temperature: | -10℃-+300℃ | Condition: | New |
| High Light: | Flexible Metal Pipe Rotary Drilling Hose,Stainless Steel Wire Braided Flexible Hose,Flange Connection Rotary Drilling Hose |
||

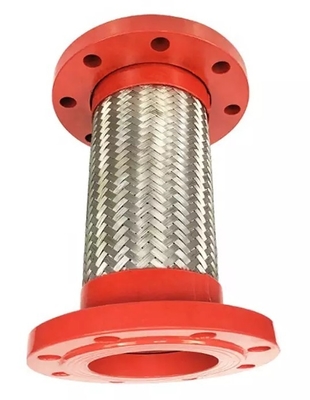

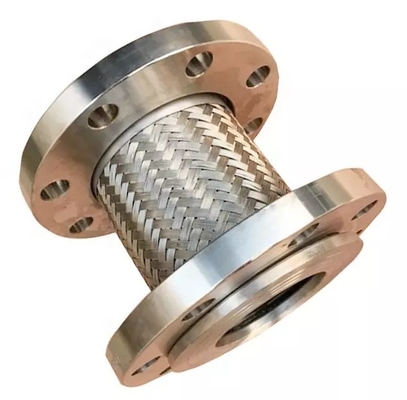

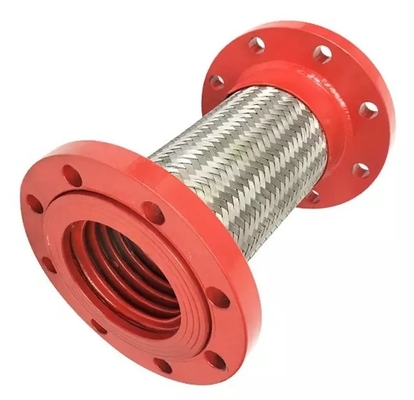

Flexible Metal Pipe Rotary Drilling Hose Stainless Steel Wire Braided Flexible Hose
Flexible Metal Hose description of Rotary Drilling Hose

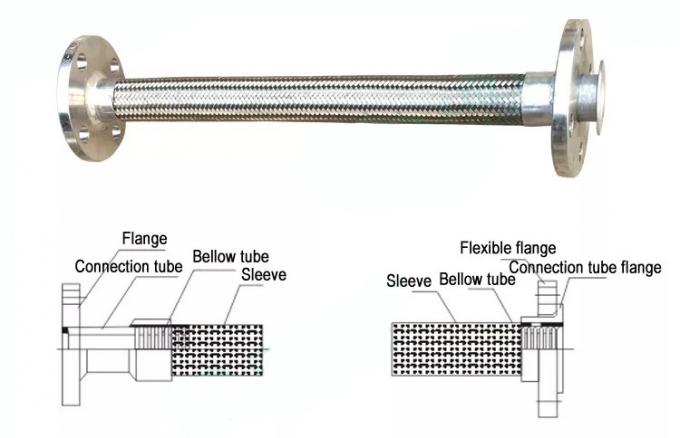

Metal flexible hose is a kind of flexible pipe with high quality in modern industrial pipeline. The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Character of metal flexible hose:
1. Good softness, anti-fatigue
2. High pressure resistant, high and low temperature resistant, corrosion resistant
3. The service life of metal hose is much higher
4. High comprehensive economical benefits.
| Nominal diameter DN | Inner diameter | Outer diameter | Minimum bending radius | Working pressure | |||
| (mm) | Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | |
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 4 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3 | 5 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3 | 5 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 3 | 5 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 2.5 | 4 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
