Product Details:
|
| Product Name: | Flexible Kill Choke Line | Reinforcement: | Multiple Layers Of Textile Fabric And Steel Cable |
|---|---|---|---|
| Bursting Pressure: | 155 Mpa | Working Pressure: | 70 Mpa |
| Size: | 2 1/2"-3 1/2" | Min. Bend Radius: | 48"-54" |
| Working Temperature: | -4℉ To +200℉ (-20℃ To +93℃) | Weight: | 20 Kg |
| High Light: | API 16C Choke Hose Line,High Pressure Flexible Kill Hose Line,Flexible Rotary Drilling Hose |
||

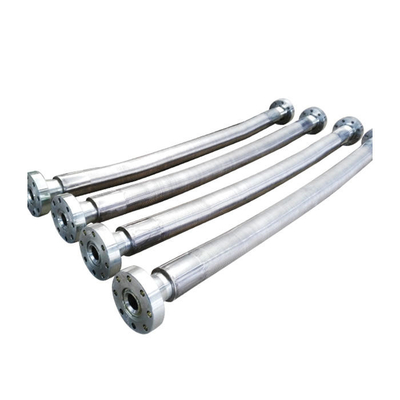

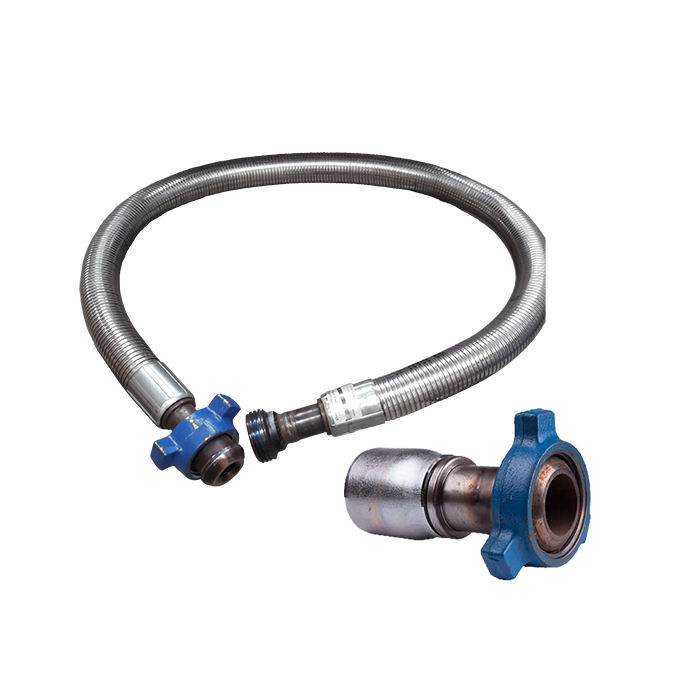

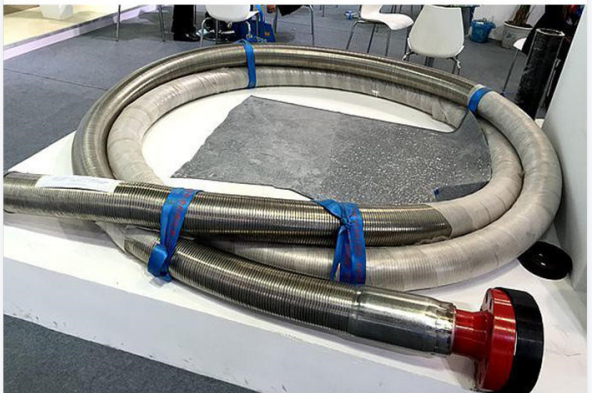

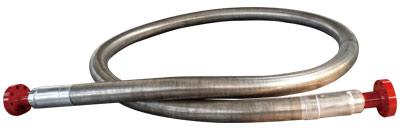

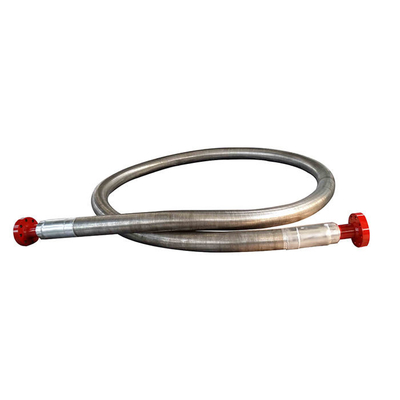

API 16C High Pressure Flexible Kill Or Choke Hose Line Rotary Drilling Hose
Patent No: ZL 94 2 10560.5
1,Applicable to connection at locations when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change,and to delivery of oil,gas.mud and other high pressure media (including mainly relief line,blowout control line and choke kill line).
2,Applicable standard: API Spec 16CSY/T5323-2004
3,The product features resistance to high pressure, thermal insulation, anti-flaming and fire resistance as well as inner wall with high abrasion resistance.
4,API emblem practical license Numbers: 16C-0374
| Inter dia.in | Rated operating | Test pressure in | Min. burst pressure in | Min. bending radius |
| mm(in) | pressure in MPa(psi) | MPa(psi) | MPa(psi) | (mm) |
| 50.8(2) | 35.0(5 000) | 52.5(7500) | 78.75(11250) | 900 |
| 64(2 1/2) | 1000 | |||
| 76.2(3) | 1000 | |||
| 89(3 1/2) | 1100 | |||
| 101.6(4) | 1200 | |||
| 50.8(2) | 70.0(10 000) | 105.0(15 000) | 157.5(22 500) | 1000 |
| 63.5(2 1/2) | 1100 | |||
| 76.2(3) | 1150 | |||
| 89(31/2) | 1200 | |||
| 101.6(4) | 1250 | |||
| 50.8(2) | 105.0(15000) | 157.5(22500) | 236.25(33750) | 1000 |
| 63.5(2 1/2) | 1150 | |||
| 76.2(3) | 1200 | |||
| 50.8(2) | 138.0(20000) | 207.0(30000) | 310.0(45000) | 900 |
| 64(2 1/2) | 1100 | |||
| 76.2(3) | 1200 |
Other related:
Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,

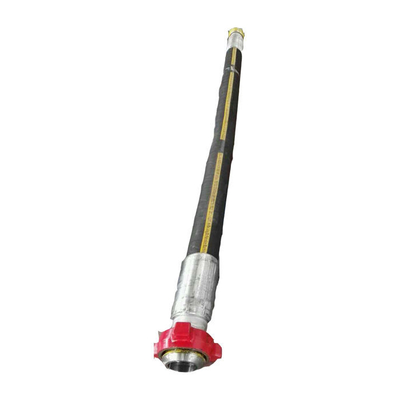

5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
