Product Details:
|
| Processing Service: | Cutting | Color:: | Customers' Requirement |
|---|---|---|---|
| Temperature:: | - 40℃ And 95℃ (some Special Tube Can Work Under 120℃ ) | Features:: | Resistance To Oil, To Wear , To Aging And To High Or Low Temperature |
| Supply Ability:: | 1000 Meter/Meters Per Week |
Rotary Drilling Hose Super High Pressure Testing Pipeline
Superhigh pressure testing pipeline is special line for high-pressure and superhigh test devices.The product is partially made of nanometer material,resistant to high pressure and impact .The pipeline is tough and firm in construction, free of deformation under high pressure,and of long service life.

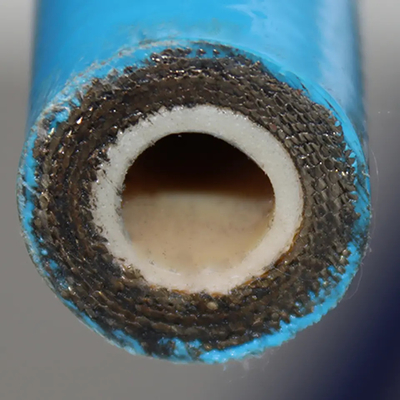

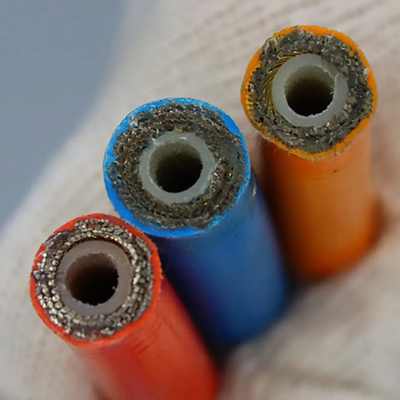

Construction:
The inner core of the pipeline consists mainly of nanometer elastomer. The center of the pipeline is steel wire armored reinforcing layer and
bond line in nanometer elastomer.
The outer layer of the pipeline is the outer protective coat made mainly from nanometer elastomer and carbon fiber.
The pipeline allows a pressure up to 150 MPa and is 50m in length.
Product specification and basic parameters for superhigh pressure testing pipeline
| Nominal inner dia. mm |
working pressure MPa |
Test pressure MPa |
Reference outer dia. mm |
Weight Kg/m |
Min.bending mm |
Connecting thread |
||||||
| 6 | 70 | 105 | 120 | 150 | 105 | 153 | 180 | 225 | 14.6~21.4 | 0.6~1.6 | 200~210 | M20×1.5 |
| 8 | 70 | 105 | 120 | 150 | 105 | 153 | 180 | 225 | 16.6~23.4 | 0.7~1.7 | 200~220 | M22×1.5 |
| 10 | 70 | 105 | 120 | 140 | 105 | 153 | 180 | 210 | 18.6~25.4 | 0.9~2.0 | 230~250 | M27×2 |
| 13 | 70 | 105 | 120 | 140 | 105 | 153 | 180 | 210 | 21.6~28.4 | 1.0~2.4 | 260~300 | M30×2 |
