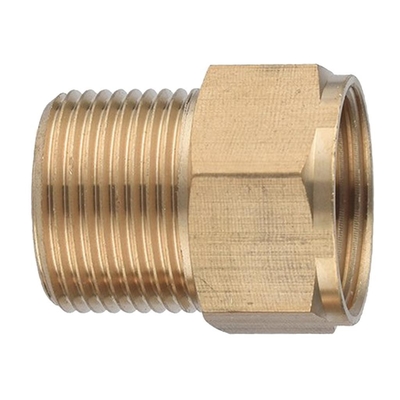

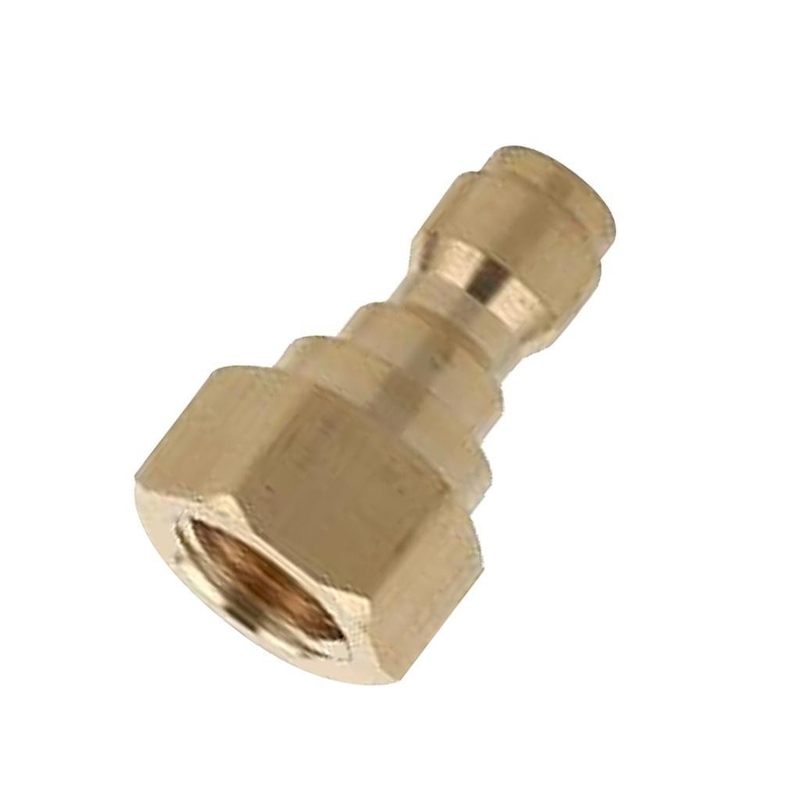

Product Details:
|
| Product Name: | Fast Connector | Shape: | Equal |
|---|---|---|---|
| Type: | Coupling | Material: | Brass |
| Technics: | CNC LATHE | Usage: | 0 - 15 Bar |
| Head Code: | Hexagon | Connection: | Male Female |

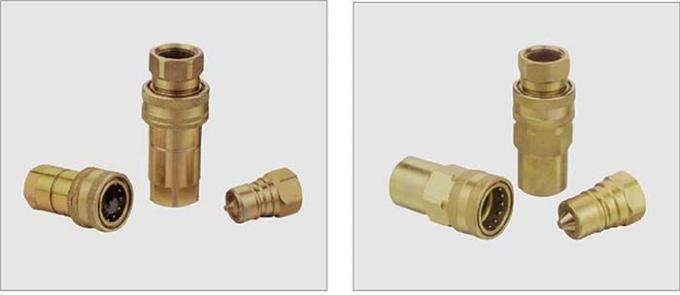

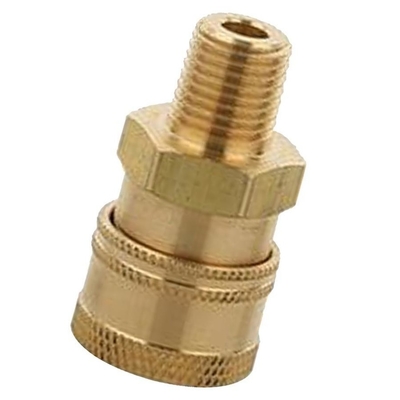

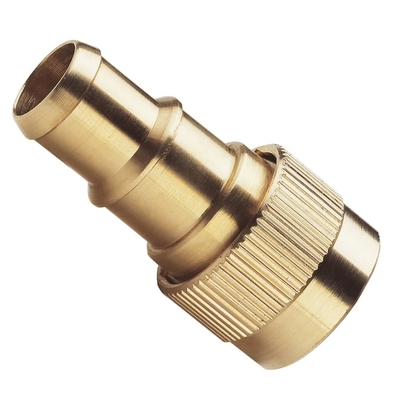

Rotary Drilling Hose High Pressure Fast Connector/ Quick Coupling Connector
Quick Coupling Connector Technical parameters
Manufacturing Standards : in accordance with ISO 7241-A
Material: Carburizing steel, according to EN10277-3
Sealing Material: Nitrible-butadiene rubber
Support circle used PTEE
Working temperature: -20℃ ~ +110℃
Application: Widely used industrial hydraulic system.

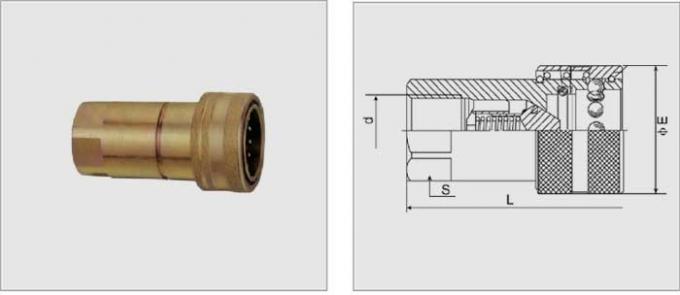

Quick Coupling Connector Female Socket Datasheet
| DN | Dimensions | Thread | material:steel maximum pressure |
S | L | Female Reference |
| 6 | 1/4'' | BSP/NPT | 35Mpa | 19 | 72 | RC-1005-F-1/4 |
| 8 | 3/8'' | BSP/NPT | 35Mpa | 22 | 80 | RC-1005-F-3/8 |
| 10 | 1/2'' | BSP/NPT | 35Mpa | 27 | 87.5 | RC-1005-F-1/2 |
| 15 | 3/4'' | BSP/NPT | 35Mpa | 38 | 112 | RC-1005-F-3/4 |
| 20 | 1 '' | BSP/NPT | 27Mpa | 45 | 126 | RC-1005-F- 1 |
| 25 | 11/4 | BSP/NPT | 27Mpa | 50 | 150 | RC-1005-F-11/4 |
| 32 | BSP/NPT | 27Mpa | 60 | 167 |
RC-1005-F- 11/2 |
Male Plug Datasheet
|
DN |
Dimensions |
Thread |
material:steel |
S |
L |
Female Reference |
|
maximum pressure |
||||||
|
6 |
1/4'' |
BSP/NPT |
35Mpa |
19 |
72 |
RC-1005-M-1/4 |
|
8 |
3/8'' |
BSP/NPT |
35Mpa |
22 |
80 |
RC-1005-M-3/8 |
|
10 |
1/2'' |
BSP/NPT |
35Mpa |
27 |
87.5 |
RC-1005-M-1/2 |
|
15 |
3/4'' |
BSP/NPT |
35Mpa |
38 |
112 |
RC-1005-M-3/4 |
|
20 |
1 '' |
BSP/NPT |
27Mpa |
45 |
126 |
RC-1005-M- 1 |
|
25 |
11/4" |
BSP/NPT |
27Mpa |
50 |
150 |
RC-1005-M-11/4 |
|
32 |
11/2'' |
BSP/NPT |
27Mpa |
60 |
167 |
RC-1005-M- 11/2 |

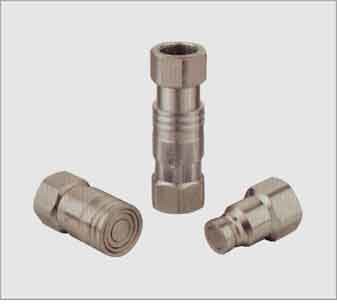

Quick Coupling Connector Technical parameters
Manufacturing Standards: in accordance with ISO 16028
Material: Carbon Steel Treatment of hydrocarcon permeation ,Stainless Steel 1.4305 AISI303. AISI316 .
Sealing Material: Nitrible-butadiene rubber, veton
Support circle used PTEE
Working temperature: -20℃ ~ +110℃
Application: Widely used industrial hydraulic system.
Advantages of product: Oil Plane can prevent pollution into the connector, protect the hydraulic loop system. Male female joint separation in hydraulic oil without over flow.
