Product Details:
|
| Product Name: | Hydraulic Disc Brake | Application: | Workover Rig |
|---|---|---|---|
| Condition: | New | Material: | Steel |
| Brand: | PSK | Origin: | Made In China |
| High Light: | hydraulic disc brake Topland,Safety Caliper cylinder assembly,hydraulic disc brake PSZ75A-2-6.00 |
||

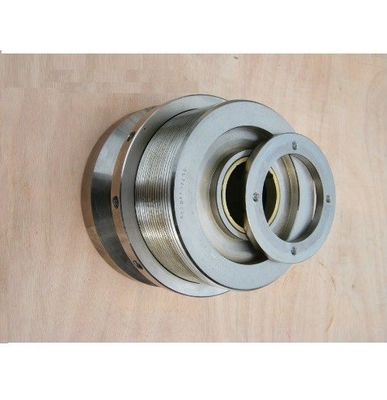

Drawworks Parts Hydraulic Disc Brake PSZ75A-2-6.00 Safety Caliper Cylinder Assembly
PS series hydraulic disc brake device is an integrated product of mechanical, electrical and hydraulic, which is an important part of the winch. PS series hydraulic disc brake device consists of three parts:Brake actuator, hydraulic station and operating table. They are connected by hydraulic lines.
The hydraulic station is the power source, providing hydraulic pressure power for the actuator,the console is the control center of the actuator; the actuator is the execution part of the brake, which is composed of three parts: the brake caliper, the caliper frame and the brake disc. Among them, the brake caliper is divided into two types: normally open working caliper and normally closed safety caliper, and the brake disc is divided into three types: air-cooled disc, water-cooled disc and solid disc.
The device has the following four functions:
1. Working brake 2. Emergency braking 3. Parking system 4. Over-roll/anti-collision protection.
The hydraulic disc brake device is mainly composed of three parts: brake actuator, hydraulic station and operating table.

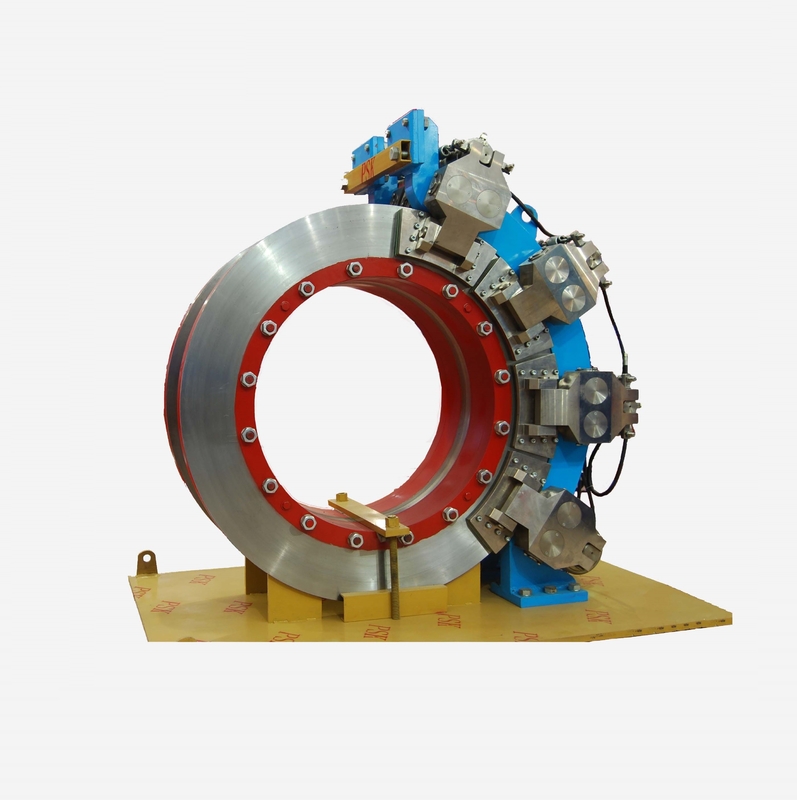

The brake actuator mainly includes four parts: working caliper, safety caliper, brake disc and caliper frame.
The working caliper are mainly composed of: brake block, caliper body, pin shaft, lever, strut, semicircular retaining ring, pin shaft II, cylinder end cover, cylinder block, tension spring, rear end cover.

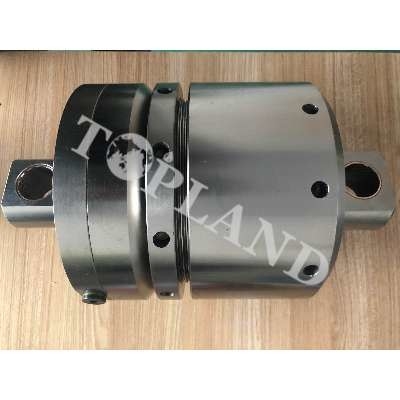

The safety gear is mainly composed of: brake block, caliper body, pin shaft, lever, strut, semicircular retaining ring, pin shaft, piston, cylinder end cover, cylinder, lock nut, adjusting nut and pin.
Brake discs are divided into three types according to the structure: water-cooled, air-cooled and solid brake discs.

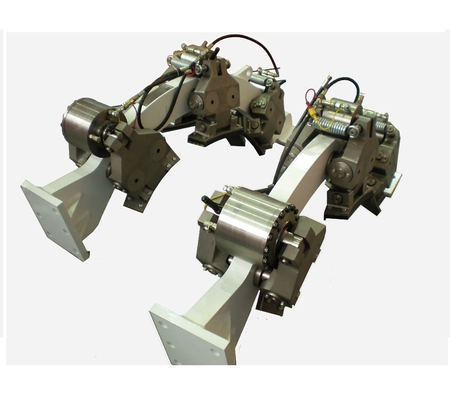

The clamp frame is the base of the actuator, on which the working clamp and safety clamp are installed.
The hydraulic station includes: fuel tank assembly, pump set, control block assembly, refueling assembly, electric control box, etc.
| PSZ75-6-00 Hydraulic Power Unit | |||
| Part Name | Part NO. | Part Name | Part NO. |
| Hydraulic station | BK-Z | quick connector | 3/8BSP |
| Direct acting relief valve | BK-F-Y | plastic pipe clamp | THPG1-228 |
| Inverted pressure line filter | ZU.1-E25×10BD-P | pipe joint | HB970 |
| one-way valve | BK-F-D | pipe joint | JB966 |
| nut | 90251000 | Rotary Line Filter | SP-06×25 |
| Screw M10×25 | GB70-85 | Pressure gauge 0-16MPa | YN60-III |
| Stud bolt M10×50 | MECC STANDARD | Pressure measuring hose | HFH2-P1-2-P-1.5 |
| Nut M10 | MECC STANDARD | Next-door straight-through pipe joint | JB97422 |
| Connector body M14×1.5/ M22×1.5 | JB984 | Pipe joint 22/ G1/2″ | JB966 |
| Pressure measuring connector G1/4″/M16 | PT-7 | Reducer 22/28 | 22/28 |
| High pressure ball core globe valve | BK-F-G1 | Explosion-proof motor B35 | YB100L1-4W |
| High pressure hose assembly 221-600KA | JB1885-77 | High pressure ball core globe valve | BK-F-G3 |
| High pressure ball core globe valve | BK-F-G2 | PVC pipe with reinforcing ribs | d20mm |
| hand pump | QH-25 | screw | GB5780-86 |
| High pressure ball core globe valve | QJH-15G | Explosion-proof electric control box | EXX |
| Accumulator | NXQ-F6.3/200 | bolt | GB5780-86 |
| Straight return oil filter | RFA-40×10Y | bolt | GB5780-86 |
| cooler | KMCL-3Y04 | Sleeve flange | 90261001 |
| Liquid level thermometer | YW2-150 | High pressure hose assembly | JB1885 |
| Pipe joint M22/ ZG3/4″ | JB966 | Plum coupling | ML2 |
| air filter | QUQ2 | Fuel tank 90L | Tank90L |
| Explosion-proof electric heater | BGY2-120/1 | Plunger pump | A10V |
| O-ring ￠75×3.1 | GB1235-76 | pipe joint | JB966.4.00 |
| Screw M8×18 | GB70-85 | Connector body | JB984 |
| oil block | 90251002 | Screw M16×45 | GB70-85 |
| oil block | 902510000000000 | linker body | JB984 |
| Connector body | 262004 | High pressure hose assembly | JB1885 |
| Quick connector 1/4BSP | HA050200 | Hydraulic station box | 90252000 |
