Product Details:
|
| Product Name: | Pressure Gauge | Nominal Size: | 63mm |
|---|---|---|---|
| Accuracy Class: | 1.6 Or 2.5 | Scale Ranges: | -1~1000bar |
| Process Connection: | Copper Alloy | Connection Thread: | 1/4(G PT NPT) |
| Bourdon Tube: | Phosphor Bronze | Movement: | Copper Alloy |
| Bezel: | S.S Rolling | Permissible Temperature: | Ambient: -5~+60℃(Glycerin) Medium: +60℃ |
| High Light: | 2.5'' drilling apparatus,Pg-L-08 stainless steel pressure gauge,63 mm drilling apparatus |
||

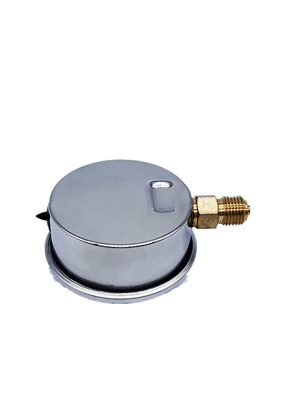

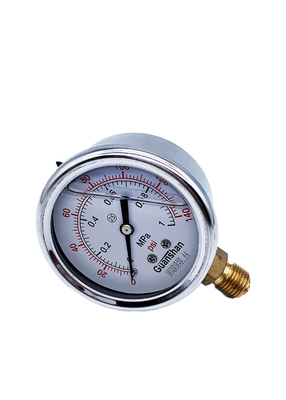

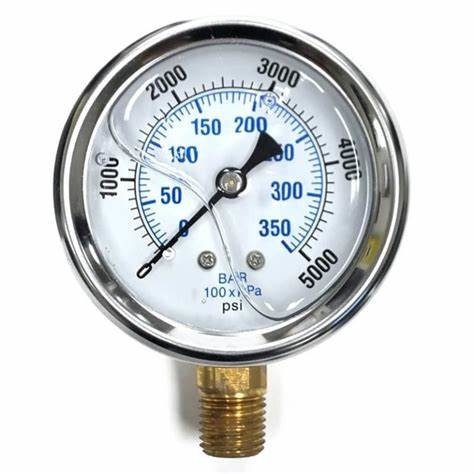

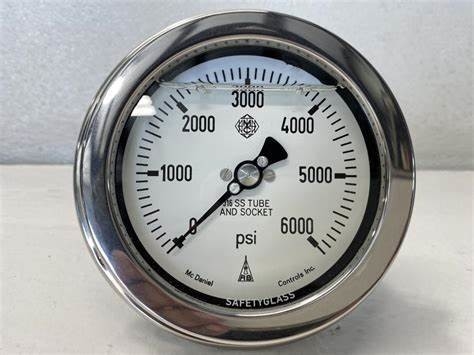

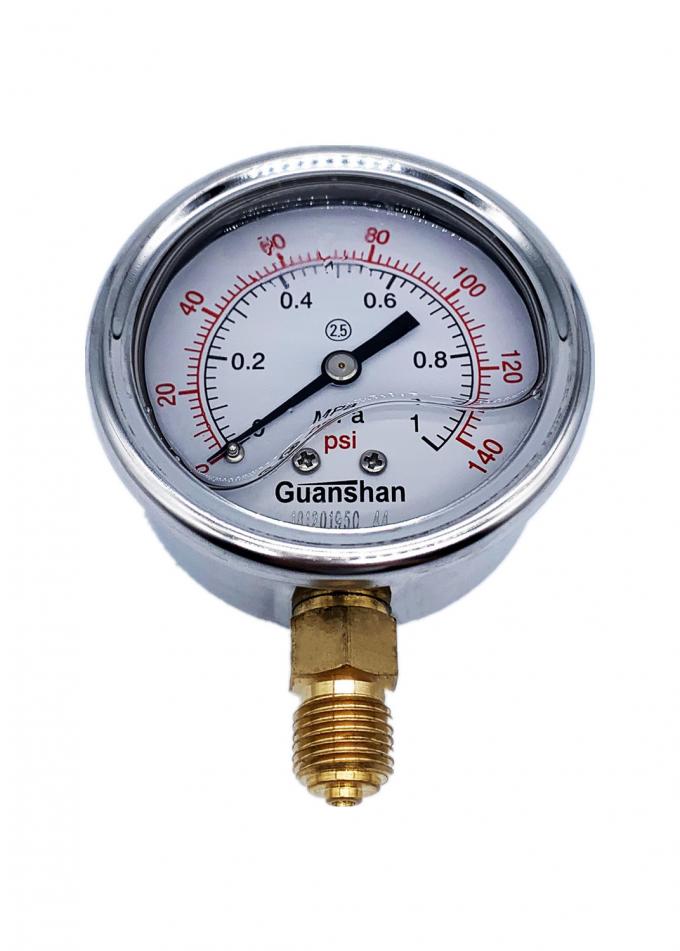

Pg-L-08 63 Mm ( 2.5 ") Drilling Instruments Shockproof Stainless Steel Pressure Gauge
Pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate pressure higher than the ambient pressure. It is extremely popular, and it covers almost all industrial processes and scientific research fields. It can be seen everywhere in the fields of heating pipe network, oil and gas transmission, water and gas supply system, vehicle repair and maintenance factories and stores. Especially in the process of industrial process control and technical measurement, because the elastic sensitive element of the mechanical pressure gauge has the characteristics of high mechanical strength and convenient production, the mechanical pressure gauge is more and more widely used.
Pressure Gauge of Drilling Instruments
|
Dial |
1.5'',2'',2.5’’,4”, 6”,8'',10''(40mm,50mm,63mm,100mm, 150mm,200mm,250mm) |
|
Case |
Full stainless steel,iron |
|
Lens |
Common glass or Safety glass |
|
Ranges |
-1Bar(-30"Hg)-0-1000Bar(15000Psi) Minimum: 0~0.1Mpa Maximum: 0-100Mpa Minimum negative pressure: -0.1Mpa Maximum negative pressure: -0.1~2.4Mpa |
|
Accuracy Class(Indication) |
1.0%;1.5% |
|
Accuracy Class(Setting) |
4% |
|
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or DC220V |
|
Maximum Current |
1A |
|
Contact Power Temperature Effects |
30VA When temperature deviates from 20 ± 5°C, the error |
|
Connection Size |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. Customized |
|
Protection Class |
Standard type: IP 54;Vibration-proof type: IP65 |
|
Filling for vibration-proof style |
Special silicon or glycerin liquid filled |
|
Temperature Effects |
When temperature deviates from 20 ± 5°C, the error |
|
Environment condition |
Temperature -40~70 ; Relative Humidity 85% |
|
Shock-proof class |
V*H*3 for YXC type V*H*4 for YXN type |
|
Technical parameter of electric contact |
Max. Working Voltage: DC220V; AC380V Max. Power on Contact: 30VA (Resistant Loading) Control Way: by adjusting magnetic contact switch |
