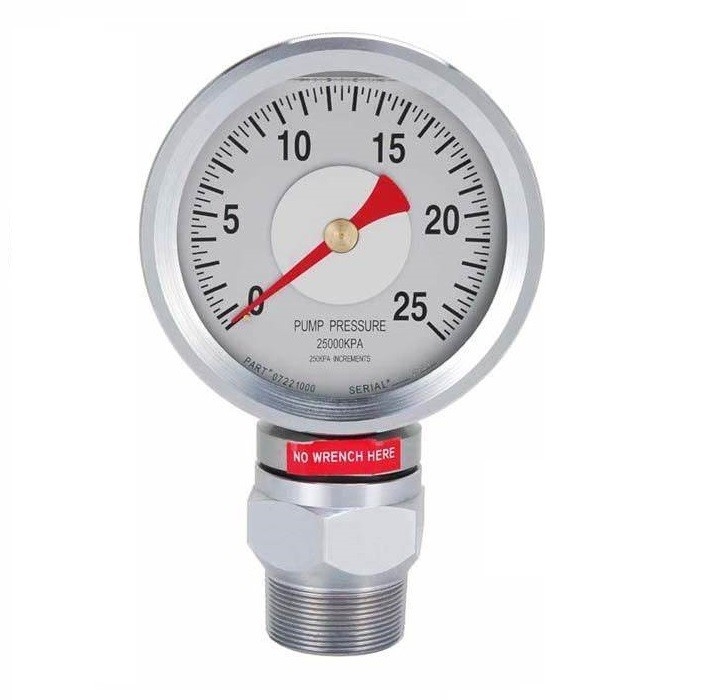

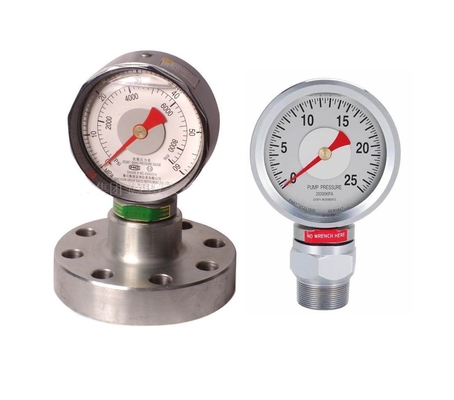

YK Pressure Gauge 40MPA Drilling Instruments 60/120MPa Mud Pump Gauge

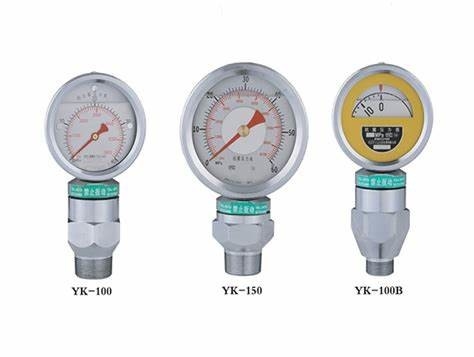

The YK-150 seismic pressure gauge is manufactured according to international standards and conforms to the API standard of the American Petroleum Institute. YTN'YK intelligent resistance remote transmission anti-seismic pressure gauge is used in oil drilling and mining, chemical industry, machinery, coal, metallurgical power, geological mining, large pumping station, department drilling, blowout prevention equipment and other fields. Can also be used to measure static pressure. Instrument and has good seismic performance. In use, it can not only measure the pressure of severe pulsation, but also withstand the instantaneous pressure shock, as well as the shock of the installation position and transportation process, and the indication is stable and clear. YTN'YK series anti-vibration. Anti-vibration pressure gauge has the advantages of "anti-blocking" that the measured medium cannot enter the inside of the instrument, so it allows the medium to be high viscosity, high particle size, easy to solidify, etc., such as mud. Safe and reliable to use. Main technical parameters of YK150 seismic pressure gauge

Seismic pressure gauge measuring range: 16MPa, 25MPa, 35MPa, 40MPa, 60MPa, 80MPa, 100MPa, 120MPa, 160MPa. Other pressure units are: PSI, Kg/cm2, kPa, BAR.

The composition of the anti-seismic pressure gauge instrument:

the instrument is mainly composed of a gasket, a diaphragm group, a fork spring, a transmission indicating mechanism and a casing.The working temperature of the anti-seismic pressure gauge: the normal working environment temperature of the instrument is -25-55C

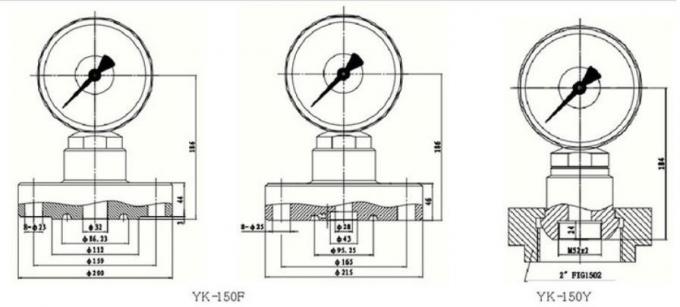

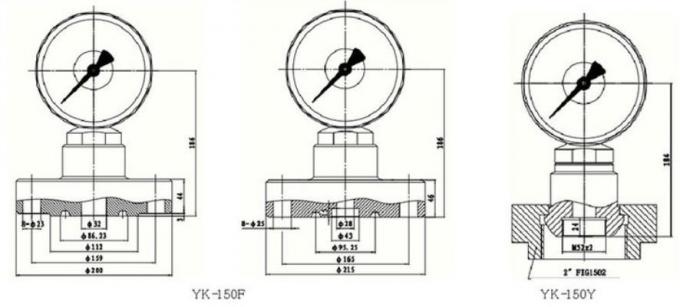

Drilling Instruments YK150 seismic pressure gauge installation dimension drawing:

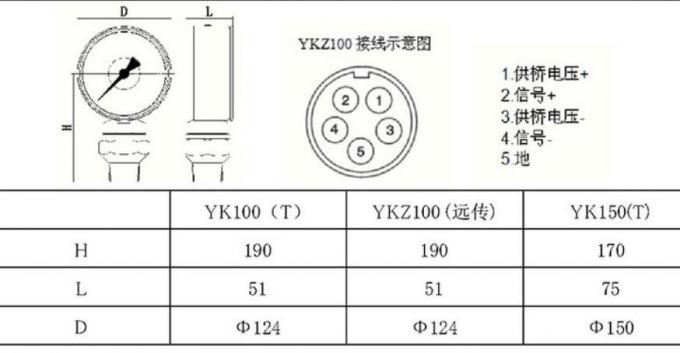

(length, width, height) With reliable sealing and anti-corrosion measures, it can work in harsh environments. Note: Instructions for use: The meter should be installed vertically and as close to the measuring point as possible; When the ambient temperature deviates from 20±5℃, additional temperature error should be considered; When the meter is working, the oil-filled screw on the top should be loosened to release the case caused by temperature Internal pressure. In order to prolong the service life of the instrument and ensure the measurement accuracy, the instrument should be used.
