Product Details:
|
| Features: | Reliably Locking Up & Locking Out | Type: | Drill Hook |
|---|---|---|---|
| Dimension: | 2545*720*750mm | Processing Type: | Forging |
| Applicable Industries: | Oil Field | Application: | Oil Well Drilling Rig; Hoisting Equipment |
| Warranty: | 12 Months | Weight: | 2842 Kg |
| Colour: | Yellow | Core Components: | Hook |
| High Light: | DG Series drilling hook,Forging Rig Spare Parts Topland,API 8C drilling hook |
||

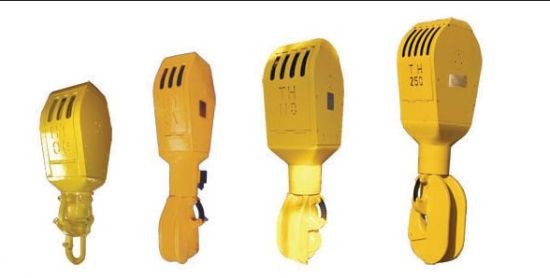

API 8C DG Series Drilling Hook Drilling Rig Spare Parts For Oilfield
The description of Drilling Rig Spare Parts Drilling Hook
The hook is mainly composed of hook body, hook rod, hook seat, lifting ring, thrust bearing and spring.
The requirements for the hook in the drilling rig operation are: it should have sufficient strength and working reliability; the hook body can be flexibly rotated so that it can be buckled and released; the spring stroke of the hook should be sufficient to compensate for the distance between the drill pipe and the drill pipe; The locking device of the hook mouth and side hook should be absolutely reliable and easy to close and open; the hook should have the function of buffering and shock absorption to reduce the impact of removing the stand.
Drilling Hook's Datasheet of Drilling Rig Spare Parts
| Model | DG225 | DG315 | DG450 | DG675 |
| Max. hook load kN | 2250 | 3150 | 4500 | 6750 |
| Major-hook opening mm (in) | 190 (7 1/2) | 220 (8 5/8) | 220 (8 5/8) | 240 (9 7/16) |
| Diameter of Major-hook mm (in) | 160 (6 1/4) | 180 (7) | 180 (7) | 228 (9) |
| Spring travel mm (in) | 180 (7) | 200 (8) | 200 (8) | 220 (8 7/10) |
| Overall dimension (LxWxH) mm | 2545x720x750 | 2953x890x880 | 2950x890x880 | 3600x1110x1020 |
Features of Drilling Rig Spare Parts Hook
The body, the bail, and the bail support are cast with special alloy steel.
Equipped with a hydraulic snubber assembly toprotect drill pipe joints when making up/breaking out connections.
At the hook there is a reliable safety device.
The primary-load-carrying parts of hook are subject to NDE test.
Drilling Rig Spare Parts Hook is provided with a braking device to lock up & lock out the body.
Drilling hooks conform to API Spec. 8A / 8C.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
