Product Details:
|
| Type: | Linear Motion Mini Shale Shaker | Voltage: | 380V |
|---|---|---|---|
| Dimension: | 1200mm*1100mm*950mm | Weight: | 1200kg |
| Vibrating Motor: | Italy OLI Brand | Electrical Components: | SIEMENS, Schneider Brand |
| High Light: | Mud linear motion shale shaker,API 7K Mini Shale Shaker,Drilling linear motion shale shaker |
||

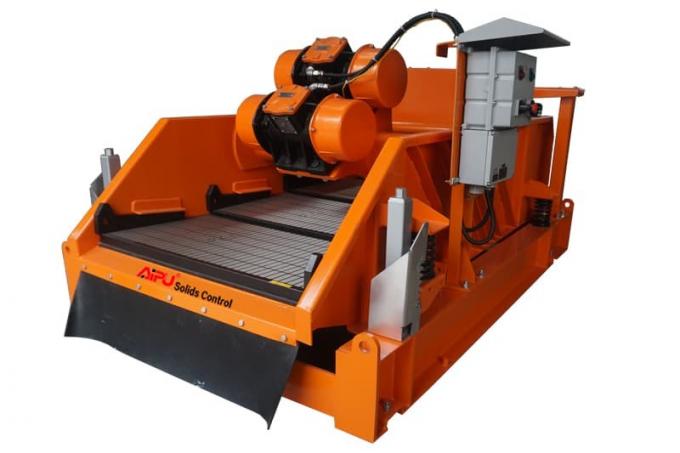

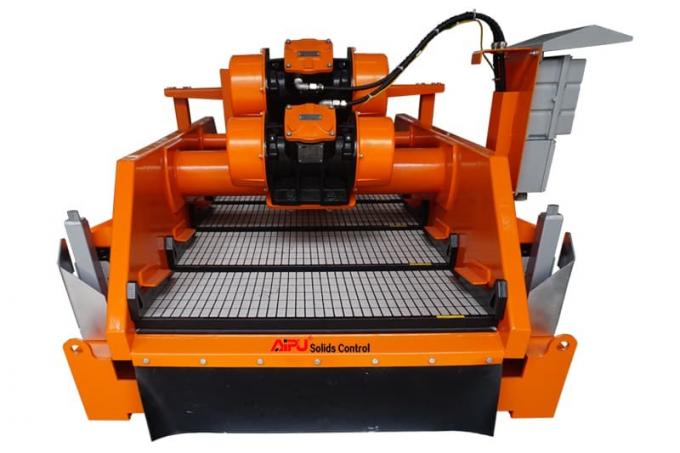

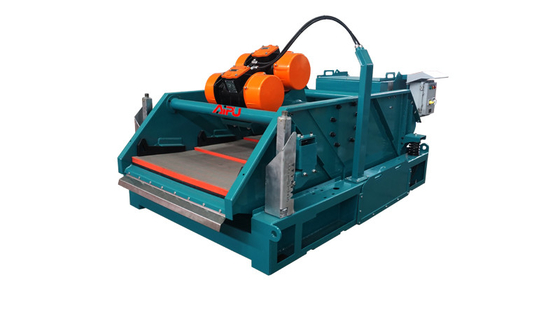

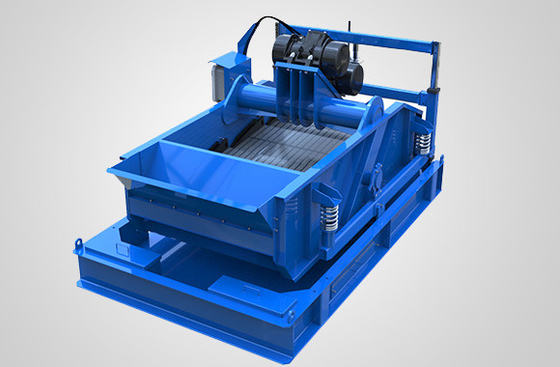

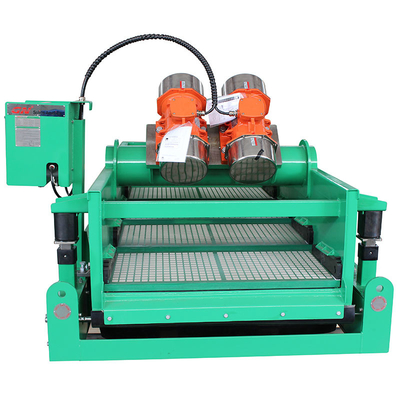

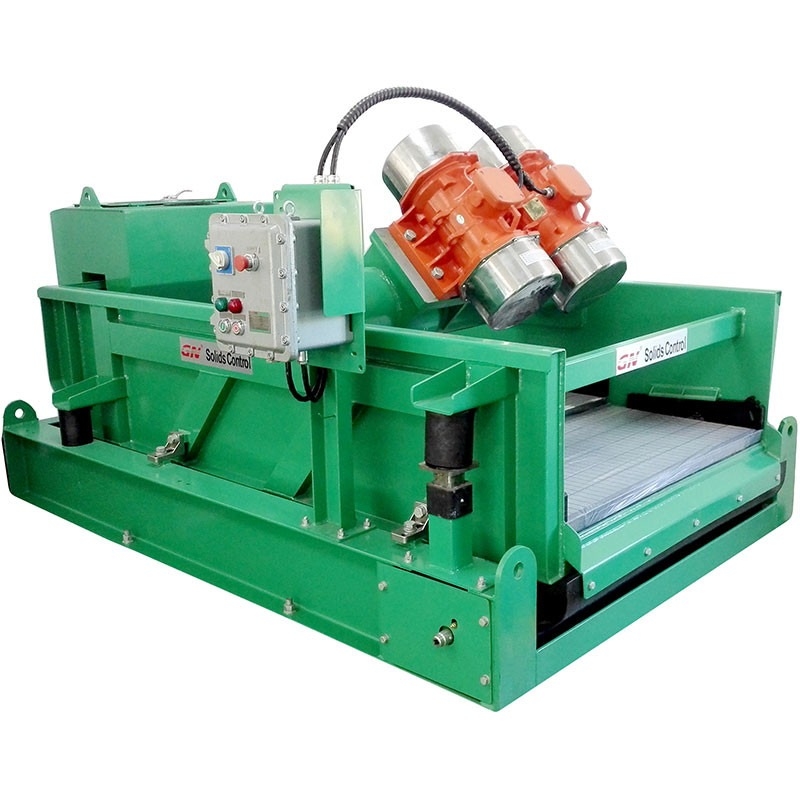

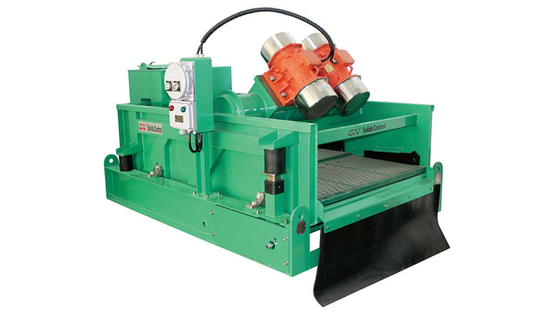

API 7K Drilling Mud Linear Motion Solids Control Equipment Shale Shaker For Oilfield Separation
Description of Solids Control Equipment
GN'S shale shaker is the first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, drilling mud shale shaker decides performance of the whole solids control system. GN Solids Control can design double shakers and triplicate shakers on single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, GN provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
Linear Motion Shale Shaker of Solids Control Equipment Features & Benefits:
Ajustable High G force for primary solids control or cuttings drying.
Heat treatment on complete shale shaker deck.
Vibrating Motor: IEC Ex, ATEX and UL Certified
Electrical components: SIEMENS, Schneider Brand
Shale Shaker Bottom Deck Material:Stainless Steel
Wedge type design for easy and quick screen replacement
Electric Shaker Deck angle adjustable while working
| Model | GNZS594 | GNZS852 | GNZS703 | GNZS853 |
| Deck Number | Single Deck | |||
| Vibrating Mode | Linear Motion | |||
| Motor Power | 2×1.72KW | 2×1.5KW | 2x1.72KW | 2x1.72KW |
| Vibrating Strength | ≤7.5G(Adjustable) | |||
| Double Amplitude | 6.0~7.2mm | |||
| Treating Capacity | 140m3/h (615GPM) |
80m3/h (350GPM) |
120m3/h (528GPM) | 140m3/h (615GPM) |
| Deck Adjustment | -1°~+5° | -1°~+3° | -1°~+5° | -1°~+5° |
| Power | 380V/50HZ, 460V/60HZ or Customized | |||
| Shaker.Screen | 4 Panel 2.72m2 | 2 Panel 2.1m2 | 3 panel 2.6m2 | 3 panel 3.2m2 |
| Weir Height | 895mm | Buffer Box Top Type:1060mm Back Type:895mm | ||
| Starter | Magnetic force starter | |||
| Decibels | <85db | |||
| Weight | 1700kg | 1200kg | 1390kg | 1650kg |
| Dimension(Top Feeder) | N/A |
1975x1884x 1448 |
2403x1884x 1448 |
N/A |
| Dimension (Back Feeder) |
2937x2012x1413 |
2283x1884x1340 |
2750x1884x1340 |
3180x1884x1340 |
| Remarks | Treating capacity test from mud:1.2g/cm3density & viscosity 45s & API40 screen for Single deck. | |||
