Product Details:
|
| Product Name: | Mud Tank Non Sparking Explosion-Proof Plugs And Sockets | Machine Type: | Solid Control Equipment |
|---|---|---|---|
| Usage: | Mud Tank | Caragories: | Electronics & Electricity / Socket |
| Feature1: | Water-proof | Working Voltage: | 400V/500V AC |
| Working Current: | 15A | ||
| High Light: | Mud Tank Solids Control Equipment,explosion proof plugs and sockets,Solids Control Equipment Non Sparking |
||

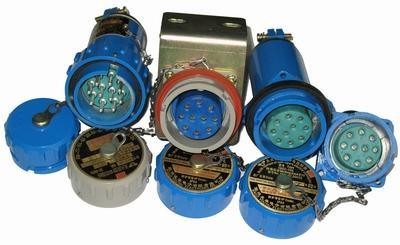

Mud Tank Explosion-Proof Three-Phase Plugs And Sockets 15YT/GZ-30J/30K
The waterproof 30 contacts electric connector,designed and produced in accordance with JB/T2729-1999,is videly used in a variety of electronic equipment to connect between the lines.The product have the features of easy to use,reliable locking,rainproof,dust prevention and antiseismic,etc.The connector have aluminum housing ,and the contacts with gold-plated or si er-plated.
Main Technical Features For 30 contacts electric connector
Ambient temperature: -20oC~+55oC
Working voltage: 400V/500V AC
Working current: 15A
Withstanding voltage: 2000V AC
Contact resistance: ≤1mΩ
Insulation resistance: ≥100MΩ
Protection degree: IP54
Life duration: 500 times
Termination: solder
Both pin and socket could be inserted in plug or receptacle.
Benefits:
R ed: aluminum housing
Minimal contact resistance
Perfect function over 500 of mating operations
Longer product life

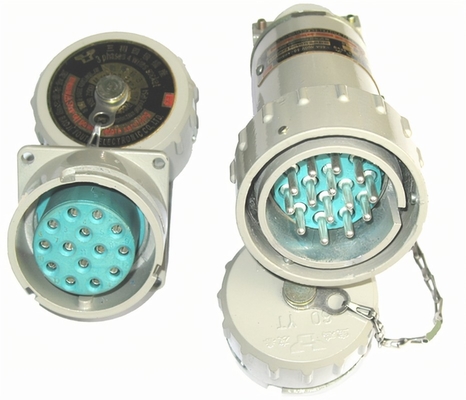

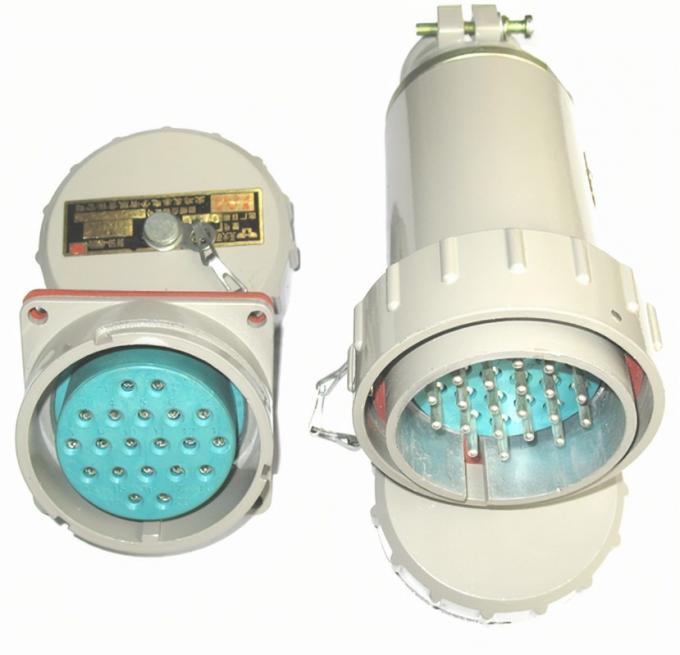

Non Sparking Explosion-proof of 20 Contacts Electrical Connector 16YT-20J/GZ-20K
| Explosion-proof Sign | ExnAIIT4 |
| Working Voltage | 500V |
| Working Current | 16A |
| Contact | 20 PIN/14 PIN/10 PIN/6 PIN |
| Ambient Temperature | -20oC~+60oC |
| Withstanding Voltage | 3000V(1Min) |
| Protection Degree | IP54 |
| Insulation Resistance | ≥1000MΩ |
| Contact resistance | ≤ 1mΩ |
| Life Duration | 1000 times |
| Both pin and jack could be inserted in plug or socket | |
Product Description
Shell material: Die cast aluminum
Connection type: Crimp
Flammability: UL94-V0
Degree of pollution: 3(C)
Overvoltage: III

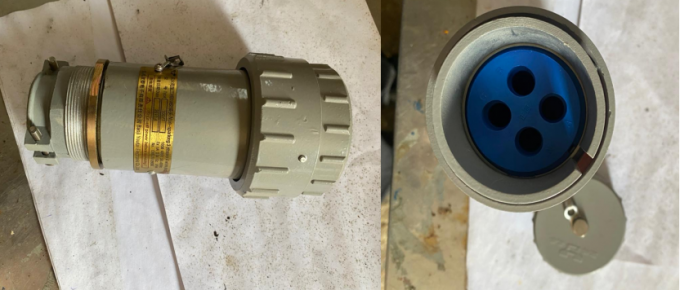

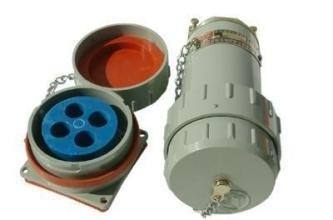

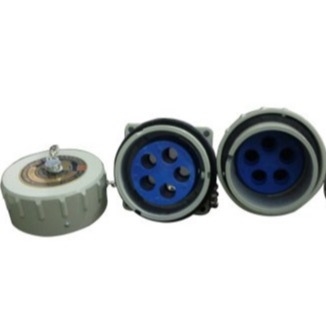

Other Parts of the request for mud tanks
| Description | Voltage | Ampere | |
| 1 | Socket Supply 4 Finger- Male | 400 v | 200 A |
| 2 | Socket Supply 4 Finger- Male | 400 v | 150 A |
| 3 | Socket Supply 4 Finger- Male | 400 v | 100 A |
| 4 | Socket Supply 4 Finger- Male | 400 v | 60 A |
| 5 | Socket Supply 4 Finger- Male | 400 v | 25 A |
| 6 | Socket Supply 3 Finger- Male | 220 v | 25 A |
