Product Details:
|
| Product Name: | Mud Mixing Hopper | Motor Power: | 37,45,55kW |
|---|---|---|---|
| Weight: | 1200,1400,1800kgs | Capacity: | 200-240m³/h |
| Working Pressure: | 0.25-0.6MPa | Material: | Carbon Steel |
| Application: | Slurry Mud | Core Components: | Engine, Motor, Pump |
| High Light: | API Solids Control Equipment,Slurry Mud drilling mud equipment,Drilling Mud Solids Control Equipment |
||
Drilling Mud Processing Equipment Mud Mixing Hopper Solids Control Equipment
Mud Mixing Hopper Description of Solids Control Equipment

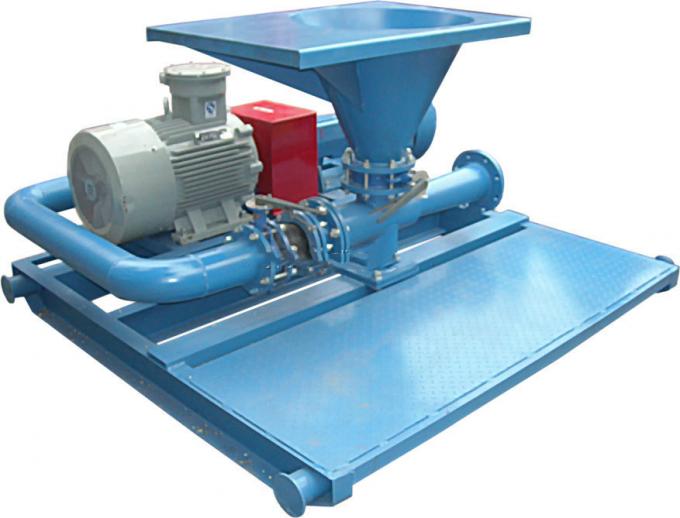

ZSLH Jet Mixing Device
Jet mixing device is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid.With the decive,the materials and agents can be mixed well.

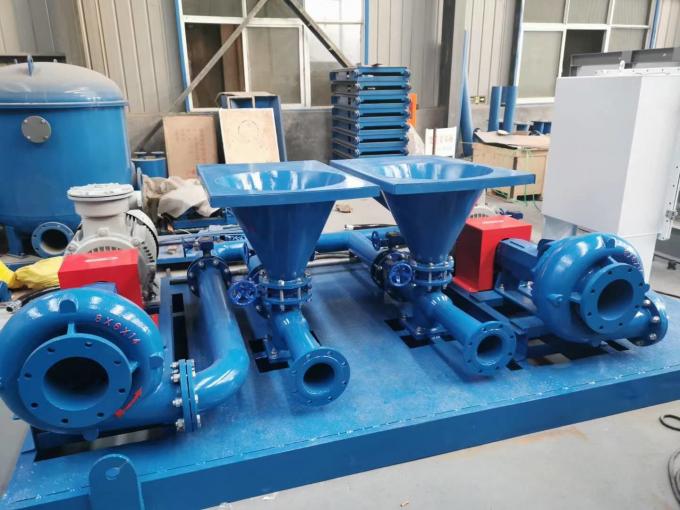

The jet mixing device is comprised of one sand pump,one jet mixer(or several pumps and mixers) ,valves and manifold.convenient transporation,installation and service,etc.
|
Model |
ZSLH150-55 |
ZSLH150-45 |
ZSLH150-37 |
|

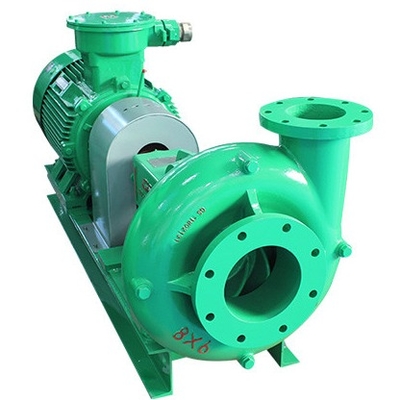

Mating sand pump |
JSB8×6×14 |
JSB8×6×11 |
JSB6×5×11 |
|
Motor power |
55kW |
45kW |
37kW |
|
Discharge capacity |
240m3/h |
220m3/h |
200m3/h |
|
Working pressure |
0.25~0.6MPa |
0.25~0.6MPa |
0.25~0.6MPa |
|
Inlet diameter |
8″ |
8″ |
6″ |
|
Outlet diameter |
6″ |
6″ |
6″ |
|
Mixing speed |
≤100kg/min |
≤80kg/min |
≤60kg/min |
|
Weight |
1800kg |
1400kg |
1200kg |
|
Overall dimensions |
2200×2200×1200mm |
2200×2200×1200mm |
2200×2200×1200mm |
ZSL－150
Jet mixer works generally together with shearing pump and is mainly used to mix chemical medicine which is not easily dispersed in drilling liquid.
Due to high pressure at the outlet, it can be installed under level of mud circulation tank.
|
Model
|
ZSL-150
|
|
Discharge capacity
|
200 m3/h
|
|
Inlet pressure
|
0.25～0.6 MPa
|
|
Outlet pressure
|
0.1～0.3 MPa
|
|
Inlet diameter
|
6″
|
|
Outlet diameter
|
6″
|
|
Weight
|
205 kg
|
|
Overall dimensions
|
1375×750×950mm
|

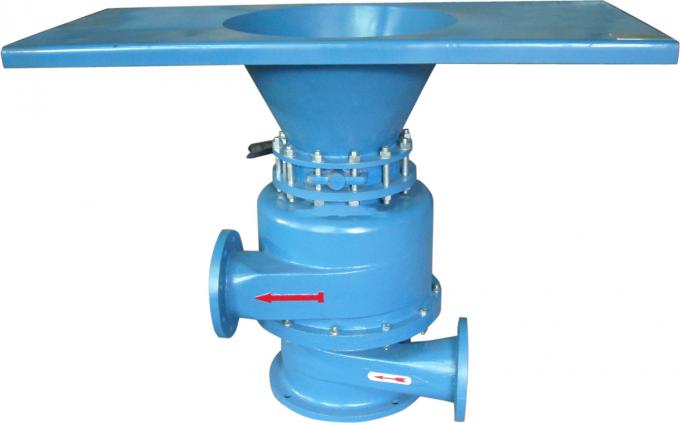

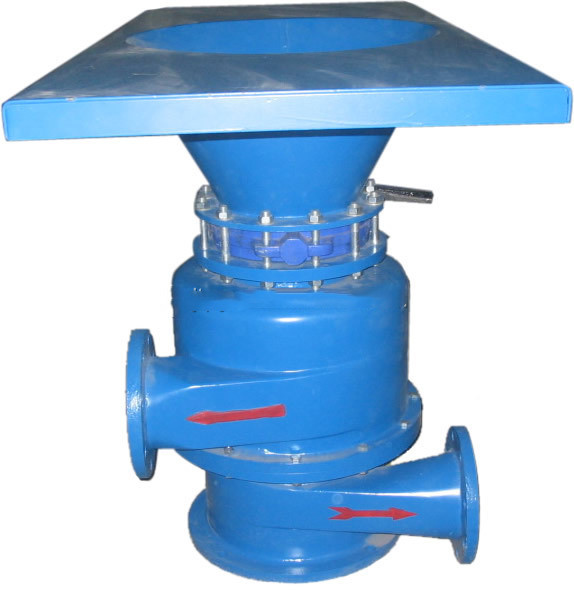

ZXL－250 Vortex Mixer
Vortex mixer mixes solidoid additive with drilling liquid evenly. It is suitable to the basic equipment in configuration of equipments for drilling liquid.
This mixer adopts rotational flow mixing technology, and can fill bentonite and barite, etc into drilling liquid quickly in order to be adapted to complicated drilling process. This product is of good mixing effect, quick filling of material, and no-blockage.
|
Model
|
ZXL－250
|
|
Discharge capacity
|
200～240 m3/h
|
|
Inlet pressure
|
0.25～0.6 MPa
|
|
Outlet pressure
|
≤0.04 MPa
|
|
Inlet diameter
|
6″
|
|
Outlet diameter
|
6″
|
|
Weight
|
520 kg
|
|
Overall dimensions
|
1500×700×1090 mm
|
