Product Details:
|
| Product Name: | Double Steel Mud Tank Pipeline System Inflatable Air Grip Union | Material: | Carbon Steel +NBR |
|---|---|---|---|
| Size: | 4-14 Inch | Processing: | Casting |
| Connection: | Welding | Standard: | Metric |
| Usage: | Oil Gas Water Industrial | Shape: | Round |
| Type: | Double Steel Union | Colour: | Red |
| High Light: | Pipeline System Drilling Rig Spare Parts,Inflatable Air Grip Union 10'',Casting Drilling Rig Spare Parts |
||

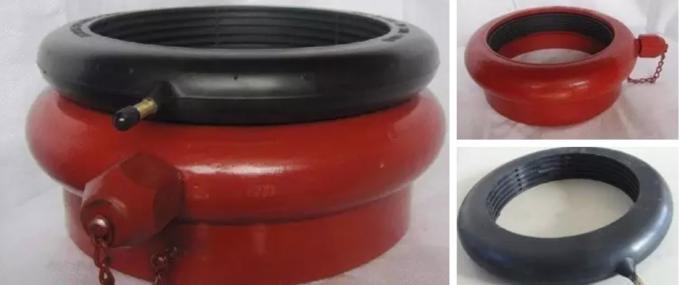

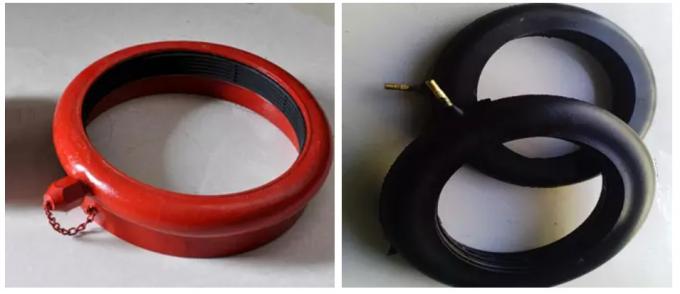

Double Steel Mud tank Pipeline system Inflatable Air Grip Union
Pneumatic tyre union is widely used in the pipeline with low pressure, large drift diameter and misplacement, and frequent mounting and dismantling, particularly in the connection between the mud tanks of the solid control system in the petroleum sector.

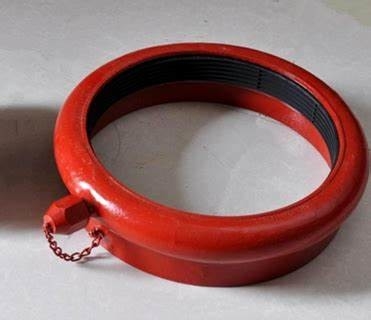

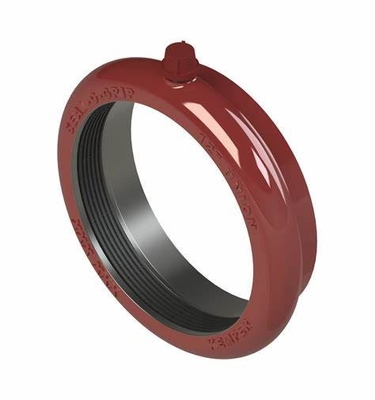

Seal-O-Grip unions are air-inflatable connectors for low pressure fluid or mud suction and return lines. The Seal-O-Grip carbon steel body welds in place on mud tanks or manifold pipe. A leak-tight seal is achieved with rig-supplied compressed air, even if the connecting pipe is not perfectly aligned. The oil and abrasion-resistant NBR pneumatic tube can be inflated up to 200 psi against the outside diameter of the connecting pipe, speeding field set-up and eliminating the need for low pressure flanged connections.
Features
Fast, easy make-up without close alignment
Allows pipe expansion or misalignment w/o breaking the seal
No nuts, bolts, or wrenches required
Available in 4”~22
Technical Parameter:
1. Medium available: mud,oil,water
2. Medium temperature:-45 ~50 degree
3. Reconversion time when deflated: 1-3 seconds.
4. Medium pressure: 0.4Mpa, Line pressure: 150PSI max., Tube pressure: 200 PSI (max.)
5. Structure: Steel shell and air tube
| Size (in/mm) | Applicable pipe diameter(mm) | Dimension of crater(mm) |
| 4"(φ100) | φ116 | φ165 |
| 6"(φ150) | φ168 | φ219 |
| 8"(φ200) | Φ219 | φ273 |
| 10"(φ250) | Φ273 | Φ325 |
| 12"(φ300) | Φ325 | Φ377 |
| 14"(φ350) | Φ380 | Φ428 |
FAQ
1 Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
