Product Details:
|
| Product Name: | Shearing Ram | Type: | Bop Shearing Ram Rubber |
|---|---|---|---|
| Material: | Nitrile Rubber | Machine Type: | Drilling Tool |
| Usage: | Ram BOP/Blowout Preventer | Size: | 7-1/16" To 26-3/4" |
| Pressure: | 2000 Psi - 21000 Psi | Parts: | Top Seal ,front Seal, Ram Body Etc |
| High Light: | BOP Spare Parts API 16a,Shearing Ram rubber sealing Topland,Topland BOP Spare Parts |
||
Shearing Ram Top And Front Seal BOP Spare Parts API 16a Rubber Sealing Element
BOP Spare Parts description - Shearing RAM

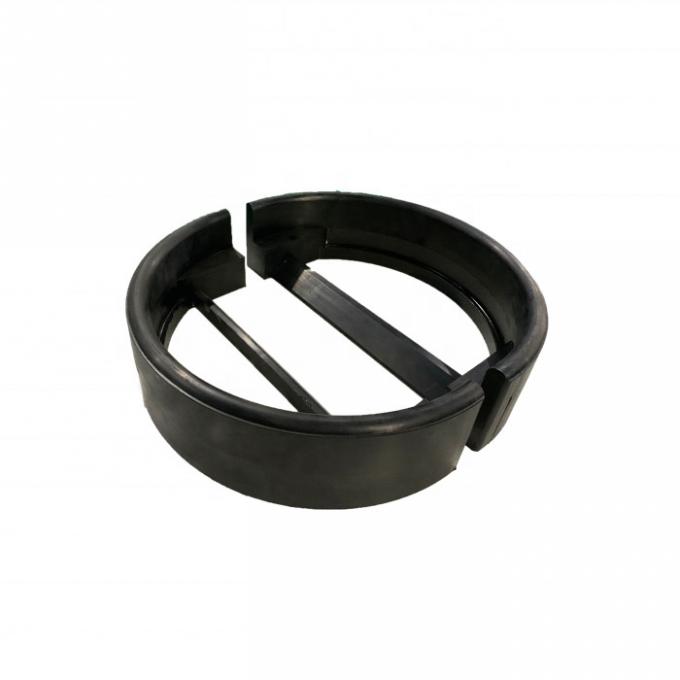

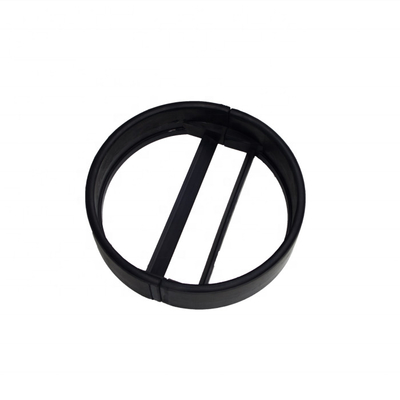

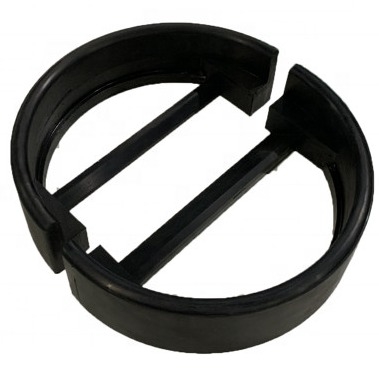

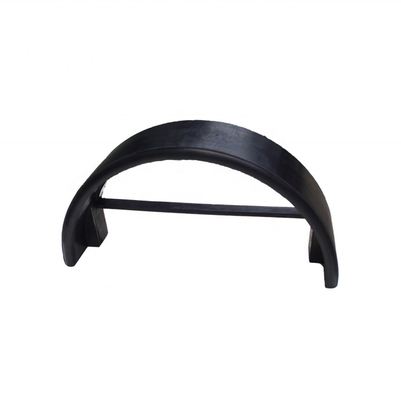

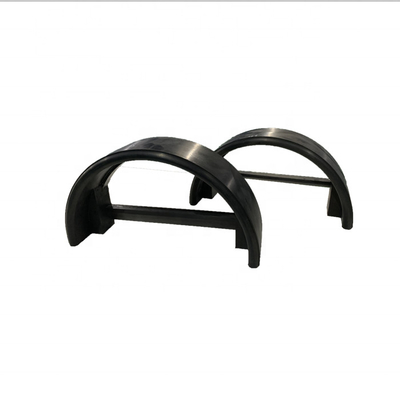

Shear ram is composed of upper ram body ,lower ram body, top seal,right seal, left seal and tool face seal. Tool face seal is placed in th front slot of the upper ram body,with right seal and left seal on the both sides. The shear ram is installed in the BOP in the same manner sa the common ram.but need to replace tha hanger pf the main piston to hunger. otherwise it will not be used.
Shearing RAM Features of BOP Spare Parts:
1. Integral type ram: SBR.
2. Split type ram: H2S.
3. Integral type ram: DVS.
4. Integral type ram: DS/ISR
These shear type rams are available.
NOTE: User should provide BOP Model, bore, pressure and P/N
Pressure: 2000~21000psi(14-140Mpa)
Size: Nominal bore7 1/16 - 26 3/4 (179.4 - 679.45mm)
| Model | FZ28-21 | FZ35-21 | FZ28-35 | FZ28-70 | FZ35-70 | |||
| Bore Dia. | mm | 280 | 346 | 280 | 28 | 346 | ||
| in | 11 | 13 5/8 | 11 | 11 | 13 5/8 | |||
| Rated Working Pressure | Mpa | 21 | 21 | 35 | 70 | 70 | ||
| Psi | 3000 | 3000 | 5000 | 10000 | 10000 | |||
| Shell Testing Pressure | Mpa | 42 | 42 | 70 | 105 | 105 | ||
| Psi | 6000 | 6000 | 10000 | 15000 | 15000 | |||
| Recom.Hyd.Pressure | Mpa | 8.4-10.5 | ||||||
| Psi | 1200-1500 | |||||||
| Piston Dia. | mm | 170 | 220 | 220 | 360 | 360 | ||
| in | 9 | 9 | 9 | 14 3/16 | 14 3/16 | |||
| Liters to open | L | 2.8 | 5.064 | 4.9 | 14.8 | 16.4 | ||
| Usgal | 1.3 | 1.34 | 1.29 | 3.93 | 4.33 | |||
| Liters to close | L | 3.18 | 5.768 | 5.6 | 16.8 | 18.5 | ||
| Usgal | 1.5 | 1.52 | 1.5 | 4.2 | 4.9 | |||
| Dimensions (LXWXH) | Singe Ram | Studdded | mm | 2097x1060x430 | 2476x1220x534 | 2170x1167x480 | 2360x1145x570 | 2690x1235x582 |
| Flange | mm | 2097x1060x720 | 2476x1220x844 | 2170x1167x870 | 2360x1145x1030 | 2690x1235x1138 | ||
| Double Ram | Studdded | mm | 2100x850x850 | 2476x1220x990 | 2170x846x975 | 2376x1145x1124 | 2690x1235x1170 | |
| Flange | mm | 2100x850x1160 | 2476x1220x1300 | 2170x846x1415 | 2376x1145x1564 | 2690x1235x1726 | ||
| Weight | Singe Ram | Studdded | kg | 3030 | 3377 | 2181 | 4200 | 6312 |
| Flange | kg | 3267 | 3505 | 3412 | 4890 | 5728 | ||
| Double Ram | Studdded | kg | 4211 | 6498 | 4932 | 9508 | 12040 | |
| Flange | kg | 4332 | 6754 | 6163 | 9872 | |||
