Product Details:
|
| Product Name: | RAM BOP Spare Parts | Material: | Stainless Steel |
|---|---|---|---|
| Machine Type: | Drilling Equipment | Use: | Well Drilling |
| Pressure: | 2000 Psi - 15000 Psi | Application: | Oil Field |
| Certificates: | API Spec 16A | ||
| High Light: | Single Double Ram Pipe,RAM BOP Spare Parts Topland,Integral Split Type Single Double Ram |
||
BOP Spare Parts Integral Split Type Standard Single Double Ram BOP Spare Parts Pipe

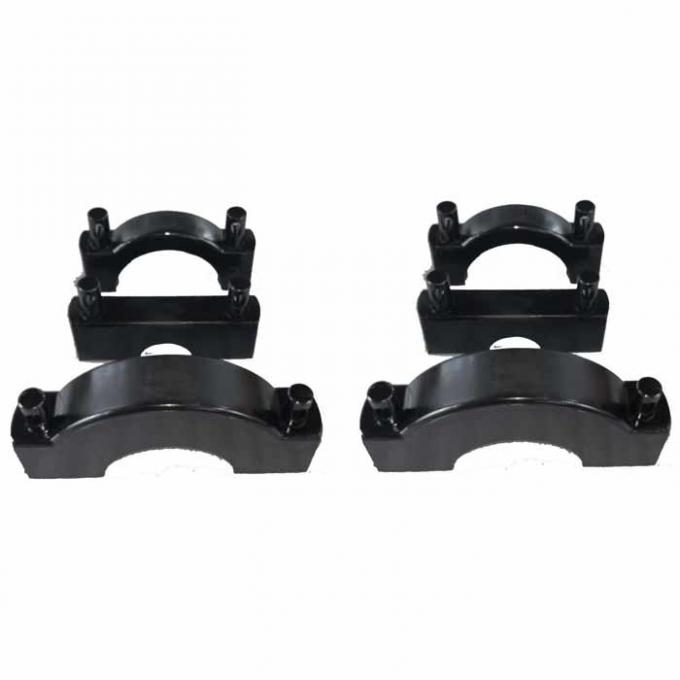

RAM BOP Spare Parts Features
The Pipe Ram is use for single or double Ram Blow Out Preventer(BOP).The ram's size is matched with the pipe's OD. Its can be closed between the pipe stem and well annualer space.
Specification of RAM BOP Spare Parts :
Each from 2 7/8 to 7 drill pipe NOTE: User should provide BOP bore and pressure Pressure: 2000~21000psi(14-140Mpa) Size:Nominal bore7 1/16 - 26 3/4 (179.4 - 679.45mm)
Ram BOPS are designed to seal the annulus by forcing two front packing elements which make contact with each other and seal around the object in the well bore.

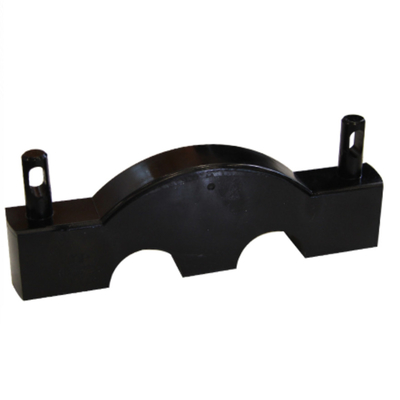

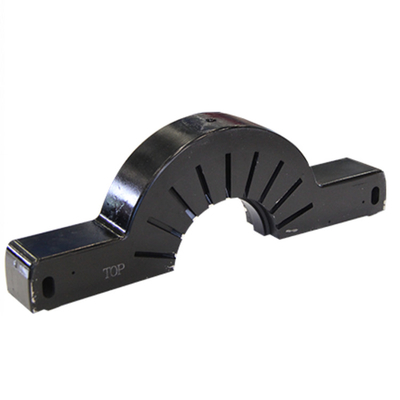

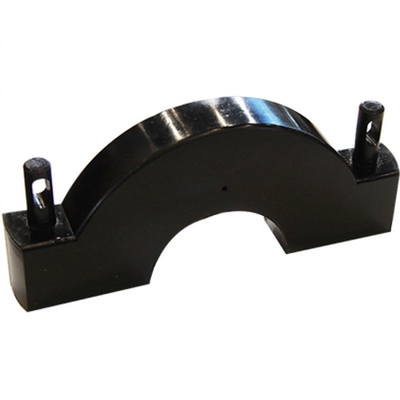

Pipe Ram: It seals around the well bore and the fixed size of pipe. The Pipe Ram is use for single or double Ram Blow Out
Preventer (BOP).The ram's size is matched with the pipe's OD. Its can be closed between the pipe stem and well annular space.
Blind Ram: It seals around the well if no pipe in the well bore. The Blind Ram is use for single or double Ram Blow Out Preventer (BOP). Its can be closed the well when the well without the pipe line or blowout.
Variable Bore Ram: It seals around several pipe size depending on the range of variable bore ram.
Shear Ram: It shear the pipe in the well and seal the wellbore simultaneously.
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
