Drilling Tool Blind Shear Ram Bop Pipe Rams Sealing Element API 16A

RAM BOP Spare Parts Pipe Rams Blind Rams Sealing Element API 16A

Generally, the BOP body is similar to a square, in the middle there is vertical bore through which the pipes can pass and the ram cavities in which the ram move in the horizontal direction.

Connection types The three connection types are studded, flange, clamped top and bottom connections. The sizes of flanges, bolts, clamps and ring grooves all conform to API standards.

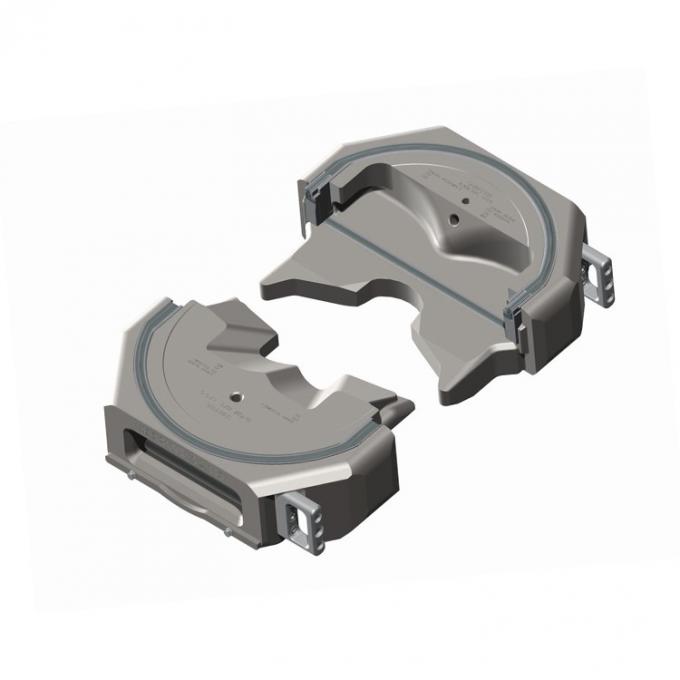

BOP Spare Parts Blind RAM description

The Pipe Ram is use for single or double Ram Blow Out Preventer(BOP).The ram's size is matched with the pipe's OD. Its can be closed between the pipe stem and well annualer space.
The Blind Ram is use for single or double Ram Blow Out Preventer(BOP). Its can be closed the well when the well without the pipe line or blowout.

Blind RAM Features of BOP Spare Parts:

1) Standard: API
2) Pressure: 2000~21000psi(14-140Mpa)
3) Size: Nominal bore7 1/16~21 3/4" (179.4~679.45mm)
4) U type, S type Available
5) Shear/ Pipe/Blind Ram
6) According to the latest API Spec 16A standard,and quality standard of ISO9001.

For the double-face ram, the upper-face ram and lower-face of the ram are exactly symmetrical. For various drilling tools with different sizes, it only need to replace the semi-annular rubber sealing ring and ram compact, the other parts can be interchanged. The single-face ram can not be turned over; the shearing ram can shear the drilling tool in the hole to seal off the well. The ram BOP with variable bore rams can be used for the sealing off the casing and drilling tools of various sizes within a certain range.

Blind RAM Technical Parameter of BOP Spare Parts:

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
