Product Details:
|
| Product Name: | Drawwork Parts Chain Roller | ISO Chain No.: | 28S-10 |
|---|---|---|---|
| China No.: | 140GA-10 | Standard: | GB3638 |
| Model: | 28S-1/28S-10/28S-2/28S-3/28S-4/28S-5/28S-6/28S-8 | Structure: | Roller Type |
| Material: | Alloy Steel | Usage: | Oil Field Roller Chains |
| Function: | Transmission Chain | Condition: | New |
| High Light: | Topland Alloy Steel transmission chains,oilfield chain 140GA-10,Roller transmission chains |
||
Drilling Rig Spare Parts Transmission Chains Oil Fields Chain 140GA-10
Oilfield Drawwork Parts Transmission chains
The transmission chains (oil chain, oil field roller chain) is designed for oil drilling and oil production of mud pump drive, engine group, power drive, camshaft, rotary vice axis, rotary table and other design and production. Oil chains can also be used for natural gas extraction, mining equipment, logging machines and ball mills. Safety and reliability are critical to the oil chain.
Featurers of Drawwork Parts Roller Chains:
1) Type: oil field roller chain
2) Materials: alloy steel
3) Chain No.: 140GA-10
4) Structure: roller chain
5) Function: transmission chain
6) Supply Ability: 25000 Meter/Meters per month
7) Tensile Strength:standard

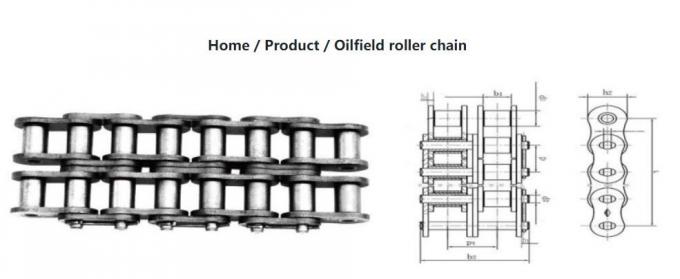

| China NO. |
GB Chiain No | Pitch | Roller | Inner width of | Pin | Plate | Plate | Array | Pin length | Tensile | Weight/m |
| ISO Chain No | Diameter | inner link | diameter | thickeness | height | Pitch | load | ||||
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | ||
| 80GA-1 | 16S-1 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.2 | 55.6 | 2.84 |
| 80GA-2 | 16S-2 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.5 | 111.2 | 5.54 |
| 80GA-3 | 16S-3 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 94.8 | 166.8 | 8.23 |
| 80GA-4 | 16S-4 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.1 | 222.4 | 10.93 |
| 80GA-5 | 16S-5 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.4 | 278 | 13.63 |
| 80GA-6 | 16S-6 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.6 | 333.6 | 16.32 |
| 80GA-8 | 16S-8 | 25.4 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.2 | 444.8 | 21.72 |
| 100GA-1 | 20S-1 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | - | 43.6 | 86.74 | 4.25 |
| 100GA-2 | 20S-2 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 79.3 | 173.48 | 8.31 |
| 100GA-3 | 20S-3 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 115.1 | 260.22 | 12.36 |
| 100GA-4 | 20S-4 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 150.8 | 346.96 | 16.41 |
| 100GA-5 | 20S-5 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 186 | 433.7 | 20.47 |
| 100GA-6 | 20S-6 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 222.4 | 520.44 | 24.52 |
| 100GA-8 | 20S-8 | 31.75 | 19.5 | 18.9 | 9.54 | 3.96 | 30.18 | 35.76 | 293.9 | 693.92 | 32.63 |
| 120GA-1 | 24S-1 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | - | 54.1 | 125.1 | 6.81 |
| 120GA-10 | 24S-10 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45 | 463.1 | 125.1 | 59.63 |
| 120GA-1 | 24S-2 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 99.6 | 250.2 | 12.12 |
| 120GA-3 | 24S-3 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 145.5 | 375.3 | 18.06 |
| 120GA-4 | 24S-4 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 190 | 500.4 | 23.99 |
| 120GA-5 | 24S-5 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 235.9 | 625.9 | 29.23 |
| 120GA-6 | 24S-6 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 281.3 | 750.6 | 35.87 |
| 120GA-7 | 24S-7 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 326.7 | 875 | 41.82 |
| 120GA-8 | 24S-8 | 38.1 | 22.22 | 25.23 | 11.11 | 4.75 | 36.2 | 45.44 | 372.2 | 1000.8 | 59.63 |
| 140GA-2 | 28S-1 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.4 | 170.27 | 7.91 |
| 140GA-10 | 28S-10 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 498.2 | 1702.7 | 76.81 |
| 140GA-2 | 28S-2 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.2 | 340.54 | 15.6 |
| 140GA-3 | 28S-3 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.1 | 510.81 | 23.25 |
| 140GA-4 | 28S-4 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-5 | 28S-5 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.9 | 851.35 | 38.55 |
| 140GA-6 | 28S-6 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.7 | 1021.62 | 46.2 |
| 140GA-8 | 28S-8 | 44.45 | 25.4 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 400.5 | 1362.16 | 61.5 |
| 160GA-1 | 32S-1 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69 | 222.4 | 10.47 |
| 160GA-2 | 32S-2 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.5 | 444.8 | 20.65 |
| 160GA-3 | 32S-3 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.1 | 667.2 | 30.82 |
| 160GA-4 | 32S-4 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.6 | 889.6 | 40.99 |
| 160GA-5 | 32S-5 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.2 | 111.2 | 51.6 |
| 160GA-6 | 32S-6 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.7 | 1334.4 | 61.33 |
| 160GA-8 | 32S-8 | 50.8 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.8 | 1779.2 | 81.68 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.7 | 280.2 | 13.96 |
| 180GA-2 | 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.6 | 560.5 | 27.88 |
| 180GA-3 | 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.4 | 840.7 | 41.62 |
| 180GA-4 | 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.3 | 1121 | 55.36 |
| 200GA-1 | 40S-1 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.5 | 347.5 | 17.35 |
| 240GA-2 | 40S-2 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156 | 695 | 34.14 |
| 200GA-3 | 40S-3 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 227.6 | 1042.5 | 50.94 |
| 200GA-4 | 40S-4 | 63.5 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.1 | 1390 | 67.73 |
| 240GA-1 | 48S-1 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.2 | 500.4 | 25.2 |
| 240GA-2 | 48S-2 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.1 | 1000.8 | 49.81 |
| 240GA-3 | 48S-3 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.9 | 1501.2 | 74.43 |
| 240GA-4 | 48S-4 | 76.2 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.7 | 2001.6 | 99.04 |
