Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6

Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6
Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6

Large Image :  Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6

Product Details:
Place of Origin: China
Brand Name: Topland
Certification: ISO
Model Number: XJ-L15
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: To Be Negotiated
Packaging Details: Wooden BOX
Delivery Time: 10 Work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1500 Set/Month

Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6

Description

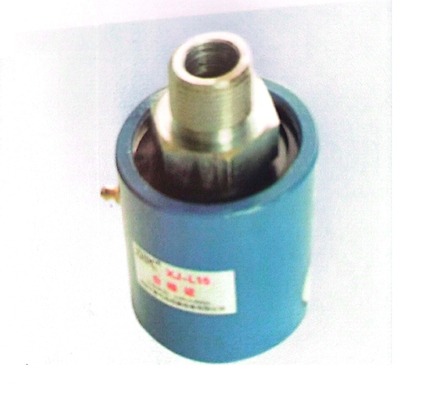

Product Name: Guiding Fitting /Polit Model: XJ-L15
Power Source: Pneumatic Operation Pressure: Vacuum
Material: Cast Steel HS Code: 8431431000
Applicable Medium: Mud, Water, Natural Gas, Crude Oil Machine Type: Drawworks
High Light:

Air Relif Valve KPM-L6

,

Drawworks Parts XJ-L15

,

Quick Air Relif Valve Topland

Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6

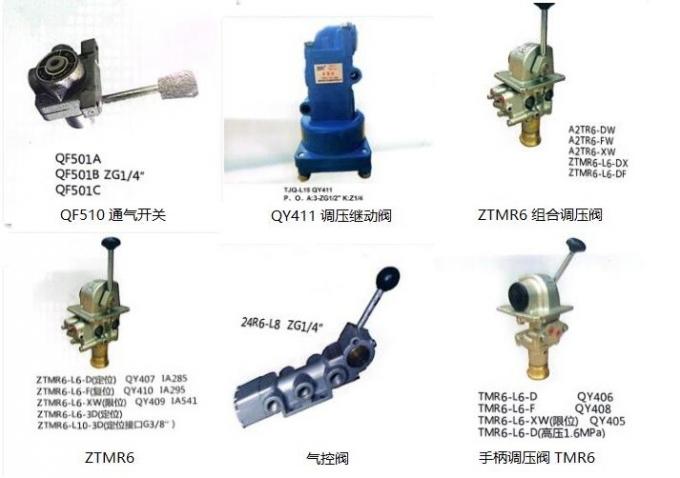

The four main series of valves are pressure-control valves , direction-control valve, flow rate control valves and implement component. We also supply pneumatic components of more than 200 different size and different types of gas drilling rig control boxes, which have been widely used in all the oilfield, geological mining departments and drilling equipment manufacturers.




Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 0

Pressure control valve technical data
Maximum working pressure: 1Mpa
Voltage range: 0.05-0.63Mpa
Code Model Name Interface Path(mm) Length Width Height
QY401 TM-L6 Regulators valve   8mm 93 87 180
QY402 TMR7-L6 Pedal pressure regulating valve 2-Z1/4" 261 87 300
QY403 TMR8-L6 Pressure regulating valve handwheel 2-Z1/4/" 118 106 283
QY405 TMR6-L6-XW Limit handle pressure
regulating valve
2-Z1/4" 140 130 350
QY406 TMR6-L6-D Positioning Limit handle pressure
regulating valve
2-Z1/4/" 140 130 350

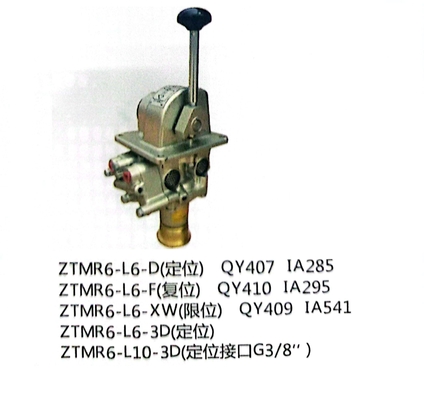

QY407 ZTMR6-L6-D Combined pressure regulating valve positioning 3-Z1/4" 175 130 365
QY408 TMR6-L6-F Reset handle pressure regulating valve 2-Z1/4" 140 130 350
QY409 ZTMR6-L6-XW Combination of regulators limit 3-Z1/4" 175 130 365
QY410 ZTMR6-L6-F Reset combination pressure regulating valve 3-Z1/4" 175 130 365
  ZTQ-6-3D Combined pressure regulating valve positioning 3-Z1/4" 175 130 365

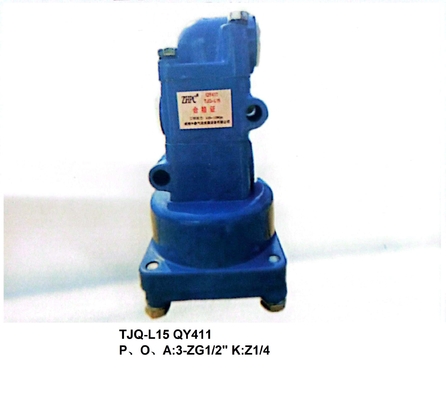

QY411 TJQ-L15 Relay Valve Regulator 3-ZG1/2"Z1/4" 15mm 166 84 84
QF503   Regulators valve   8mm 85 85 195
QF507   Following the gas regulator device 2-ZG1/2"ZG1/4" 15mm 127 104 53

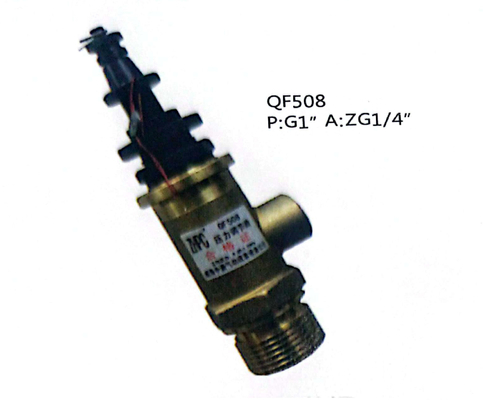

QF508   Pressure regulating valve G1"ZG1/4" 8mm 162 44 51
AP104   Following the gas 2-G1/2" G1/4" 100 100 135
regulator device
8522A Z-2P-R Reduction valve 3-ZG1/4" 171 148 354
8523B Z-2P-L Valve positioning 3-ZG1/4" 171 148 354





Part Name PN/Part No. Part Name PN/Part No.
check valve 1∕4″ 9 5/8" face seal RJ11148.09.08.02
reposition valve TMR6-L6-F air gauge YT-60ZT(0-1.6MPA)
limited check pressure valve ZTMR6-L6-X quick air relif valve KPM-L6
pedal adjustive pressure valve TMR7-L6 guiding fitting XJ-L15
pressure adjustment valve TJQ-L15 crown automatic valve FP-L8
hand wheel adjusting valve TM-L6 quick air relif valve M20*1.5
relive air valve KPJ-L6 quick air relif valve M33*1.5
top seal RJ11148.09.01.01 air guiding valve 23R6-26
3 1/2”Ram Assemble RJ11148.09.03 leaqd connection QY494
3 1/2" face seal RJ11148.09.03.02 3 way air valve QF501B
5" face seal RJ11148.09.05.02 relife valve KPM-L6 KPM-L6
7" face seal RJ11148.09.07.02 polit XJ-L1.5 XJ-L1.5



Drawworks Parts Polit XJ-L15 Guiding Fitting Quick Air Relif Valve KPM-L6 1
