Product Details:
|
| Product Name: | Rope Reeling Machine | Dimension(L*W*H): | 2566x1740x1610mm |
|---|---|---|---|
| Weight: | 1500 Kg | Packing: | Standared Package |
| Applicable Models: | Construction Works , Energy & Mining | Machinery Test Report: | Provided |
| Power Type: | Diesel | Voltage: | 220/380V |
| Motor Power: | 7.5 KW | HS Code: | 8431100000 |
| High Light: | Oilfield Drilling Rig Spare Parts,Diesel hydraulic lifting device,Topland Electric Drilling Rig Spare Parts |
||

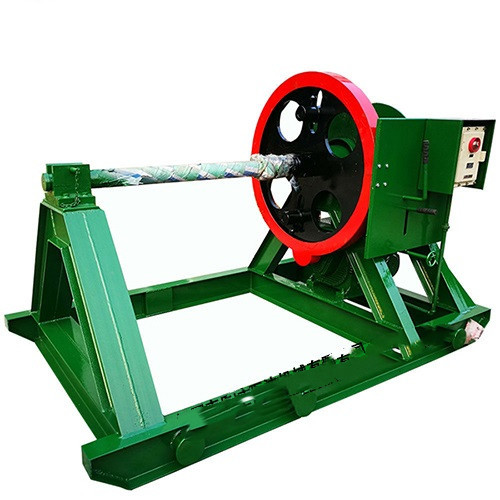

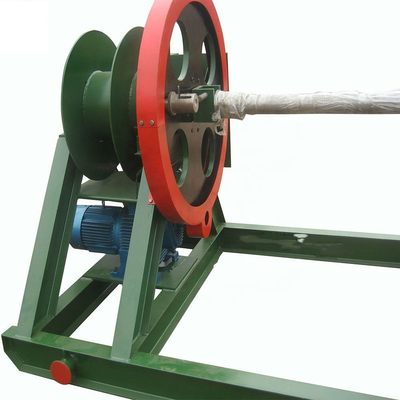

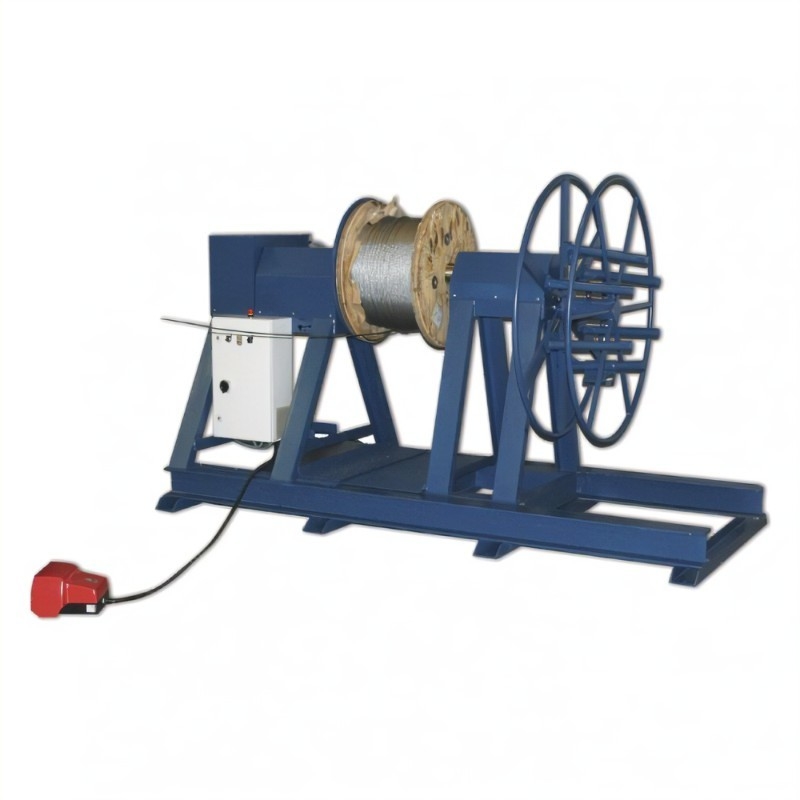

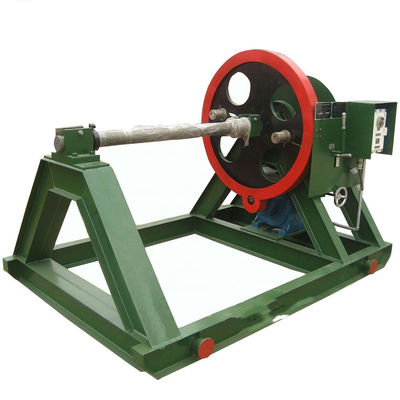

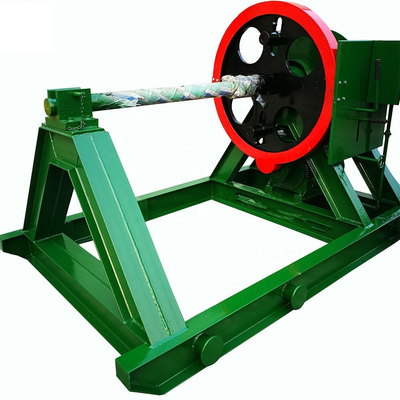

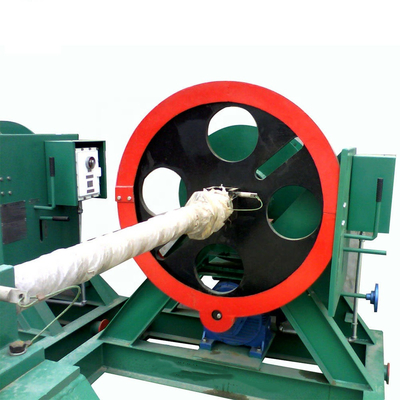

Oilfield Electric And Hydraulic Lifting Device Drilling Rig Spare Parts Rope Reeling Machine
Rope Reeling Machine description:
Rope Reeling Machine to through and back the wireline.It is equipped with a wire drum and it can complete reell the drill line before drilling and release the drill line after the drilling, no need other auxiliary equipment and tools . The work more convenient and safety, easy to operate.
Rope Reeling Machine specifcation of Drilling Rig Spare Parts
| Model | DSJ8-D | DSJ15-D | DSJ8-Y | DSJ15Y |
| Drive Type | Electric | Hydraulic | ||
| Support Spacing (mm) | 1260 | 1320 | 1260 | 1320 |
| Height of Center (mm) | 1105 | 1650 | 1105 | 1650 |
| Rated Output Torque (kN.m) | 10 | |||
| Rated Speed RPM | 3.7-18 | 0.55-17.5 | ||
| Motor Power (KW) | 5.5KW 380V 50Hz | |||
| Hydraulic Pressure (Mpa) | 16MPa Flow: 100L/min | |||
| Max. Workload (KN) | 80 | 150 | 80 | 150 |
| Dead Load (KG) | 1500 | 1800 | 1500 | 1800 |
| External Dimension (mm) | 2673*1728*1630 | 3045*2050*1845 | 2673*1728*1630 | 3045*2050*1845 |
