Product Details:
|
| Product Name: | Handle Wafer Butterfly Valve | Size: | DN25-DN300 |
|---|---|---|---|
| Material: | Stainless Steel | Media: | Water; Oil Gas |
| Temperature Rating: | -20°C~ 120°C | Working Pressure: | 1.0-1.6Mpa (10-25bar) |
| Seat: | EPDM/NBR/PTFE | Power: | Manual |
| High Light: | Stainless Steel DISC Butterfly Valve,Handle Typecast iron butterfly valve,DISC Butterfly Valve Manifold |
||

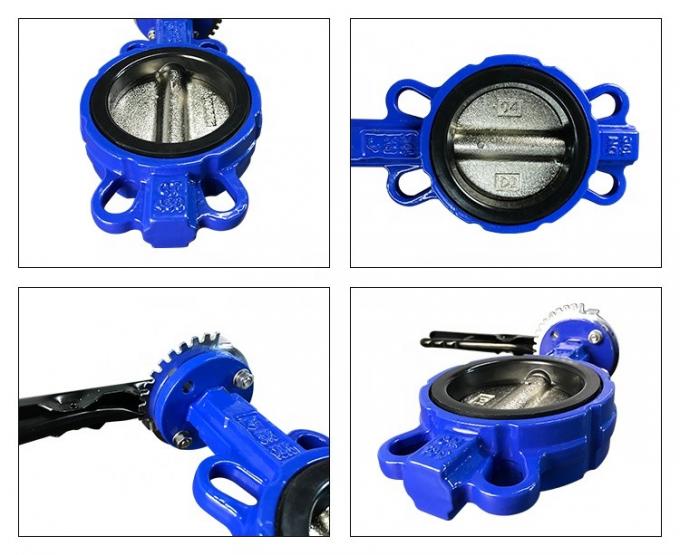

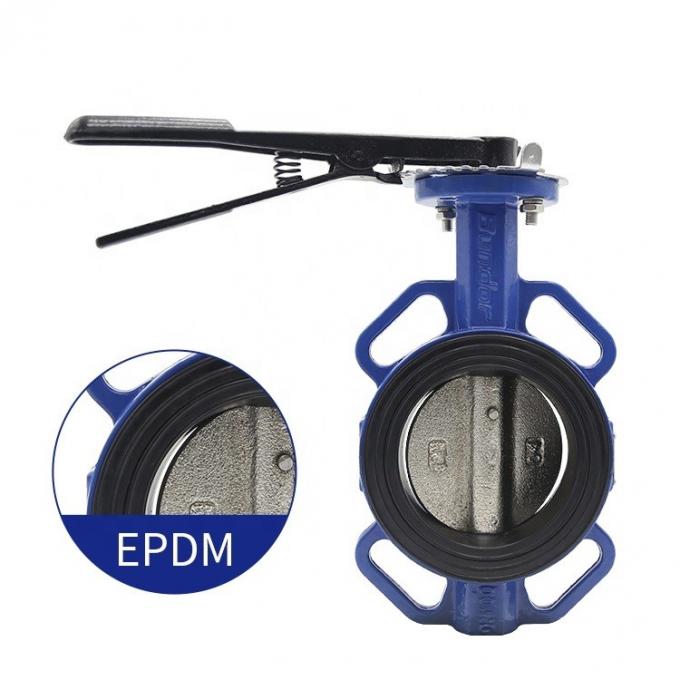

Handle Type Ductile Iron Stainless Steel DISC Butterfly Valve Manifold Control Valve
Manifold Control Valve - Butterfly Valve Description
Butterfly valve, is a simple structure of the control valve, can be used for the low pressure pipeline medium switch control of butterfly valve is to close the disc, rotating around the valve shaft to achieve the opening and closing of a valve.
Valves can be used to control the flow of air, water, steam, corrosive media, mud, oil, and other types of fluid. It is mainly used for cutting and throttling in pipelines. Butterfly valve opening and closing parts is a disc shaped disc, in the valve body around its own axis rotation, so as to achieve the purpose of opening and closing or regulation.
Butterfly Valve Features:
1. Small and light , and easy installation and mintanance. It can be mounted wherever needed.
2. Compact structure, 90 degree fast switch.
3. Miniminzed operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation performance.
5. Long service life Standing the test of tens of thousands opening/closing operations.
6. Bubbles-tight sealing with no leakage under the pressure test.
7. Wide selection of materials, applicable forvarious medium.
Butterfly Valve Specification
|
Name |
1-Body |
2-Seat |
3-Disc |
4-Stem |
5-Actuator |
|
Material |
DI |
EPDM |
DI |
45# |
Handle |
|
DN |
NPS |
L |
D1 |
D2 |
L4 |
|
50 |
2" |
43 |
86 |
92.3 |
240 |
|
65 |
2 1/2" |
46 |
101 |
107 |
240 |
|
80 |
3" |
46 |
116 |
122 |
240 |
|
100 |
4" |
52 |
148 |
153 |
270 |
|
125 |
5" |
56 |
174 |
179 |
320 |
|
150 |
6" |
56 |
204 |
208.4 |
320 |
|
200 |
8" |
60 |
252 |
262.3 |
380 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
