Product Details:
|
| Product Name: | Xmas Tree & Hydraulic Choke Manifold | Media: | Mud,oil And Drilling Fluid |
|---|---|---|---|
| Type: | Choke Manifold | Design Pressure: | 105Mpa |
| Processing Type: | Forging | Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Usage: | Well Drilling | End Connection Type: | Flange |
| Application: | Wellhead Test Manifold | Performance Requirement: | PR1~PR2 |
| Work Temperature: | PU(-29℃-121℃) | Material: | Carbide |
| High Light: | Xmas Manifold Control Valve,Hydraulic Choke Valve API 16C,Wellhead Manifold Control Valve |
||

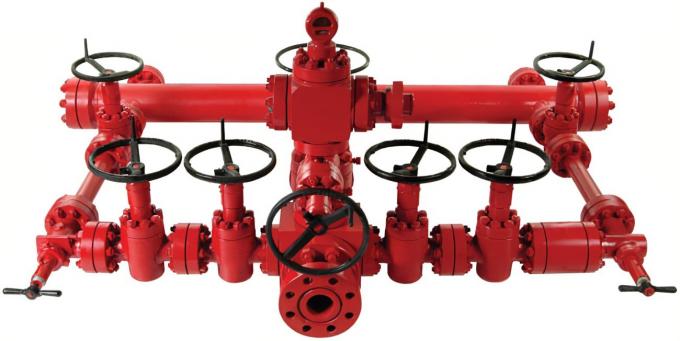

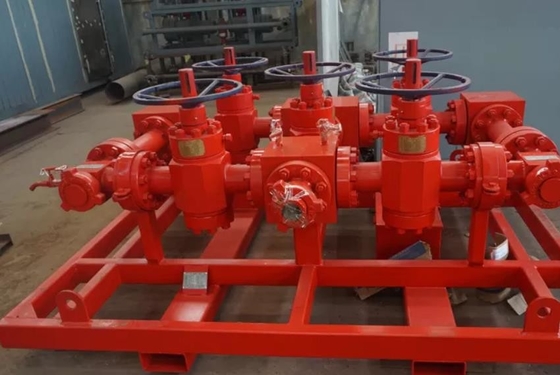

API 16C Wellhead Xmas Tree & Hydraulic Choke Manifold
Manifold Control Valve -Mud Gate Valve Description
Wellhead test manifold are to throttle the fluid, oil and gas wells can work under thw different working system.

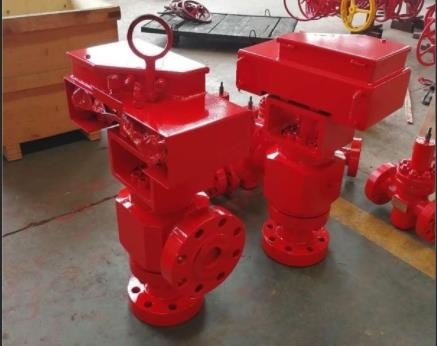

When the pressure inside the well rises, opening/closing the choke valves (including manual chokes, hydraulic chokes and positive chokes) on the choke manifold can allow the release of the fluid inside the well so as to control casing pressure, which can be directly blown out through the gate valve if the casing pressure is quite high.
| pressure level parameter |
35Mpa (5000psi) | 70Mpa (10000psi) | 105Mpa (15000psi) |
| color | blue | yellow | red |
| Model | JG/S52-35 | JG/S78-70 | JG/S78-105 |
| Design pressure | 35Mpa | 70Mpa | 105Mpa |
| Weight | 2530kg(5578Ib) | 3580kg (7892.5Ib) | 4630kg (10260Ib) |
| Dimension | 1802(L) X 1339(W) X 680(H)MM 70.9 X 52.7 X 26.8 in | 2516(L) X 1824(W) X 799(H)MM 99.1 X 71.8 X 31.5 in |
3270(L)X2371(W)X1038.7(H)MM 128.83 X 93.34 X 40.95 in |
| Material Level | EE | EE | EE |
| product specification level | PSL3 | PSL3 | PSL3 |
| work temperature | PU(-29℃-121℃) | PU(-29℃-121℃) | PU(-29℃-121℃) |
| product performance level | PR1 | PR1 | PR1 |
| Nozzle | fixed and adjustable nozzle | fixed and adjustable nozzle | fixed and adjustable nozzle |
| Characteristics | Five gate design | Five gate design | Five gate design |
| work medium | Mud,oil and drilling fluid | Mud,oil and drilling fluid | Mud,oil and drilling fluid |
| Connection type | flange | flange | flange |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
