Product Details:
|
| Product Name: | Non-Spark Explosion-Proof Electric Connector | Lable: | Connector , Plug , Socket |
|---|---|---|---|
| Caragories: | Electronics & Electricity / Socket | Feature: | Explosion-Proof |
| Working Voltage: | 750V | Working Current: | 200A~1000A |
| High Light: | Single-Pole electric connector,ExnAIIT4 Drilling Rig Spares,Non Spark electric connector |
||

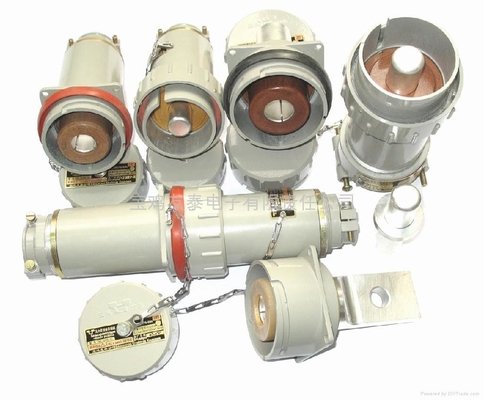

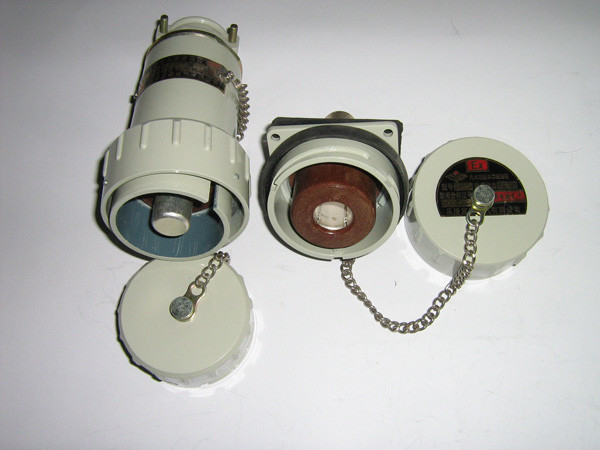

Drilling Rig Spare Parts Non-Spark Explosion-Proof Of Single-Pole Electric Connector
CQST Certified--- examined and tested for qualification by China National Quality Supervision and Test Center for Explosion Protected Electric Products (CQST) and obtained the explosion-proof certificate. ·Standard---IEC 60079-15:2001 Electrical apparatus for explosive gas atmospheres Part 15:Type of protection n,MOD(GB 3836.8-2003).
Main Technical Features for Non-Spark Explosion-Proof Of Single-Pole Electric Connector
| Explosion-proof Sign | ExnAIIT4 |
| Working Voltage | 750V |
| Working Current | 200A~1000A |
| Ambient Temperature | -20oC~+60oC |
| Withstanding Voltage | 3000V(1Min) |
| Protection Degree | IP54 |
| Insulation Resistance | ≥1000MΩ |
| Contact resistance | ≤ 1mΩ |
| Life Duration | 1000 times |
| Both pin and jack could be inserted in plug or socket | |
Product Description of Non-Spark Explosion-Proof Of Single-Pole Electric Connector
Shell material: Die cast aluminum
Connection type: Crimp
Wire Gauge: 120mm²---400 mm² (444MCM/535MCM/646MCM/777MCM)
Flammability: UL94-V0
Degree of pollution: 3(C)
Overvoltage: III
Benefits ·R ed:All components have aluminum housings ·Minimal heat build-up ·Energy savings ·Low maintenance costs ·Perfect function over 1000 mating operations ·Longer product life ·High specific current capacity. Up to 1000A

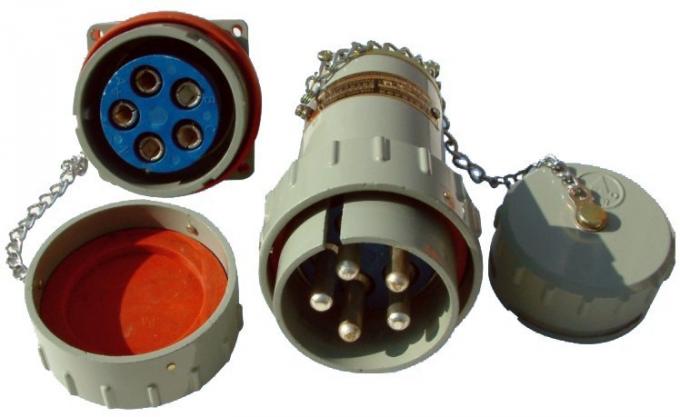

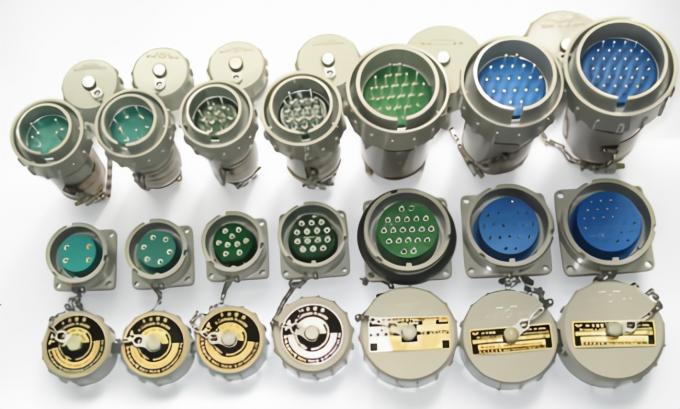

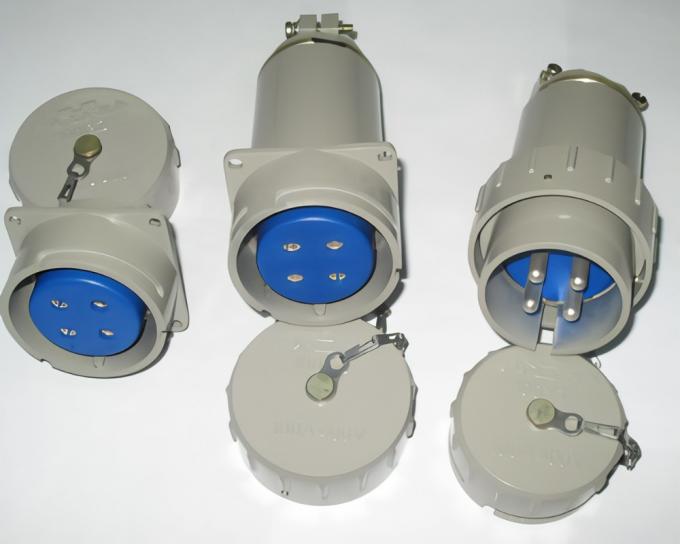

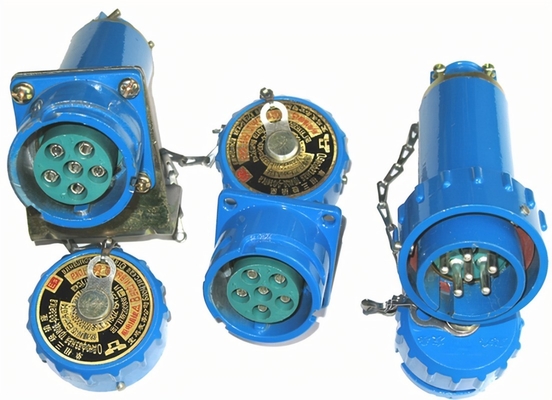

Other Parts of the request for mud tanks
| Description | Voltage | Ampere | |
| 1 | Socket Supply 4 Finger- Male | 400 v | 200 A |
| 2 | Socket Supply 4 Finger- Male | 400 v | 150 A |
| 3 | Socket Supply 4 Finger- Male | 400 v | 100 A |
| 4 | Socket Supply 4 Finger- Male | 400 v | 60 A |
| 5 | Socket Supply 4 Finger- Male | 400 v | 25 A |
| 6 | Socket Supply 3 Finger- Male | 220 v | 25 A |
