Product Details:
|
| Product Name: | Tube, Sael-O-Matic Union Kemper | Material: | NBR |
|---|---|---|---|
| Size: | 6 Inch | Usage: | Oil Gas Water Industrial |
| PN: | P680t | SN: | 3207137 |
| High Light: | Sael O Matic Union Kemper,PN P680t Matic Union Kemper,3207137 |
||

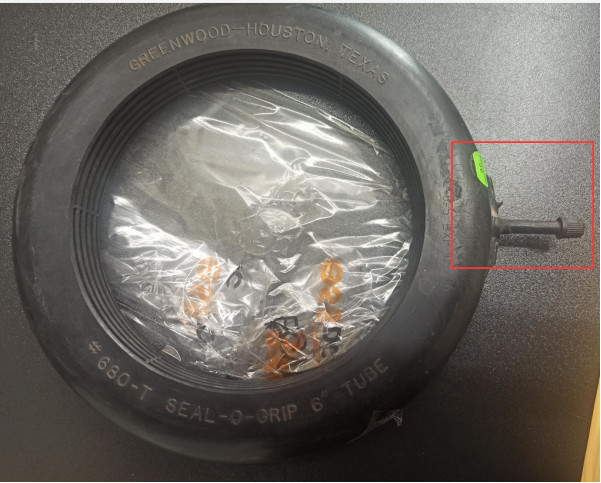

Tube, Sael-O-Matic Union Kemper PN P680t 6" 3207137

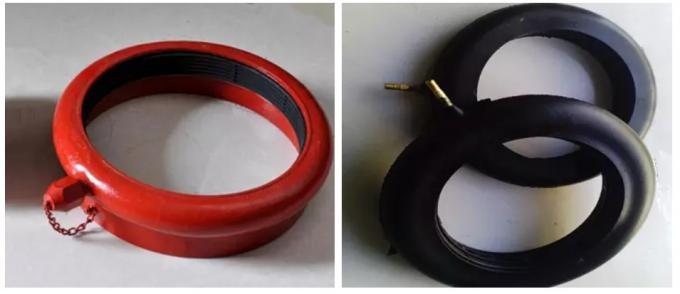

Seal-O-Grip unions are air-inflatable connectors for low pressure fluid or mud suction and return lines. The Seal-O-Grip carbon steel body welds in place on mud tanks or manifold pipe. A leak-tight seal is achieved with rig-supplied compressed air, even if the connecting pipe is not perfectly aligned. The oil and abrasion-resistant NBR pneumatic tube can be inflated up to 200 psi against the outside diameter of the connecting pipe, speeding field set-up and eliminating the need for low pressure flanged connections.
Technical Parameter OF Tube, Sael-O-Matic Union Kemper
1. Medium available: mud,oil,water
2. Medium temperature:-45 ~50 degree
3. Reconversion time when deflated: 1-3 seconds.
4. Medium pressure: 0.4Mpa, Line pressure: 150PSI max., Tube pressure: 200 PSI (max.)
5. Structure: Steel shell and air tube
| Size (in/mm) | Applicable pipe diameter(mm) | Dimension of crater(mm) |
| 4"(φ100) | φ116 | φ165 |
| 6"(φ150) | φ168 | φ219 |
| 8"(φ200) | Φ219 | φ273 |
| 10"(φ250) | Φ273 | Φ325 |
| 12"(φ300) | Φ325 | Φ377 |
| 14"(φ350) | Φ380 | Φ428 |
FAQ
1. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
2.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
3. Why should you choose us?
3-1. Professional & Efficient, Customer Focus, Win-win Cooperation
3-2. Fast Quote, Competitive price & within shortest lead time
3-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
3-4. Order tracking service
